Test B: Manual Switch Does Not Move the Adjustable Pedals Memory Is Functional
Pinpoint Test B: Manual Switch Does Not Move The Adjustable Pedals Memory Is FunctionalNormal Operation
The manual switch for the adjustable pedals grounds circuit 1492 (LB/RD) and circuit 1493 (PK/BK) through circuit 490 (RD). Pushing the switch upward closes circuit 1493 (PK/BK) to circuit 490 (RD), and the adjustable pedal motor moves the pedals away from the driver. Pushing the switch downward closes circuit 1492 (LB/RD) to circuit 490 (RD), and the adjustable pedal motor move the pedal toward the driver.
Possible Causes
^ circuit 490 (RD) open
^ circuit 1493 (PK/BK) open or short to ground
^ circuit 1492 (LB/RD) open or short to ground
^ adjustable pedal switch
^ DSM

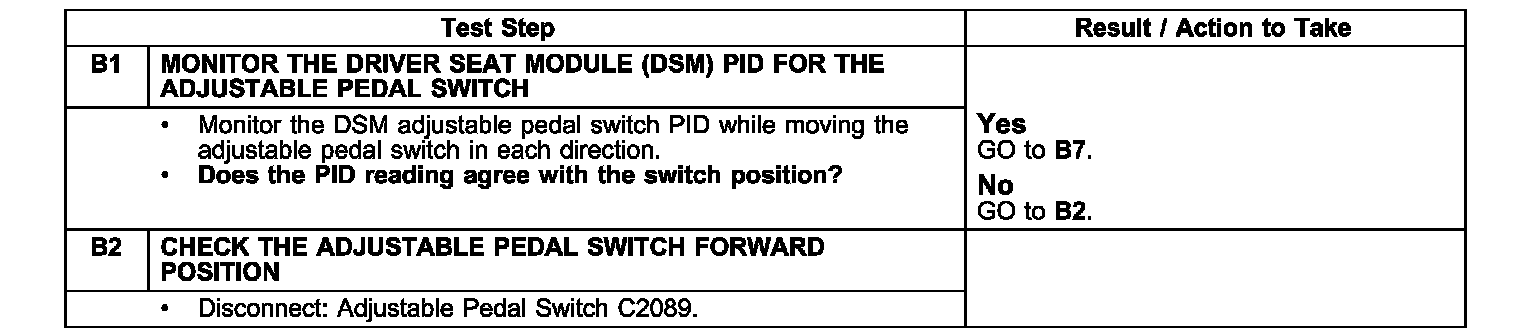

Tests B1 - B2:

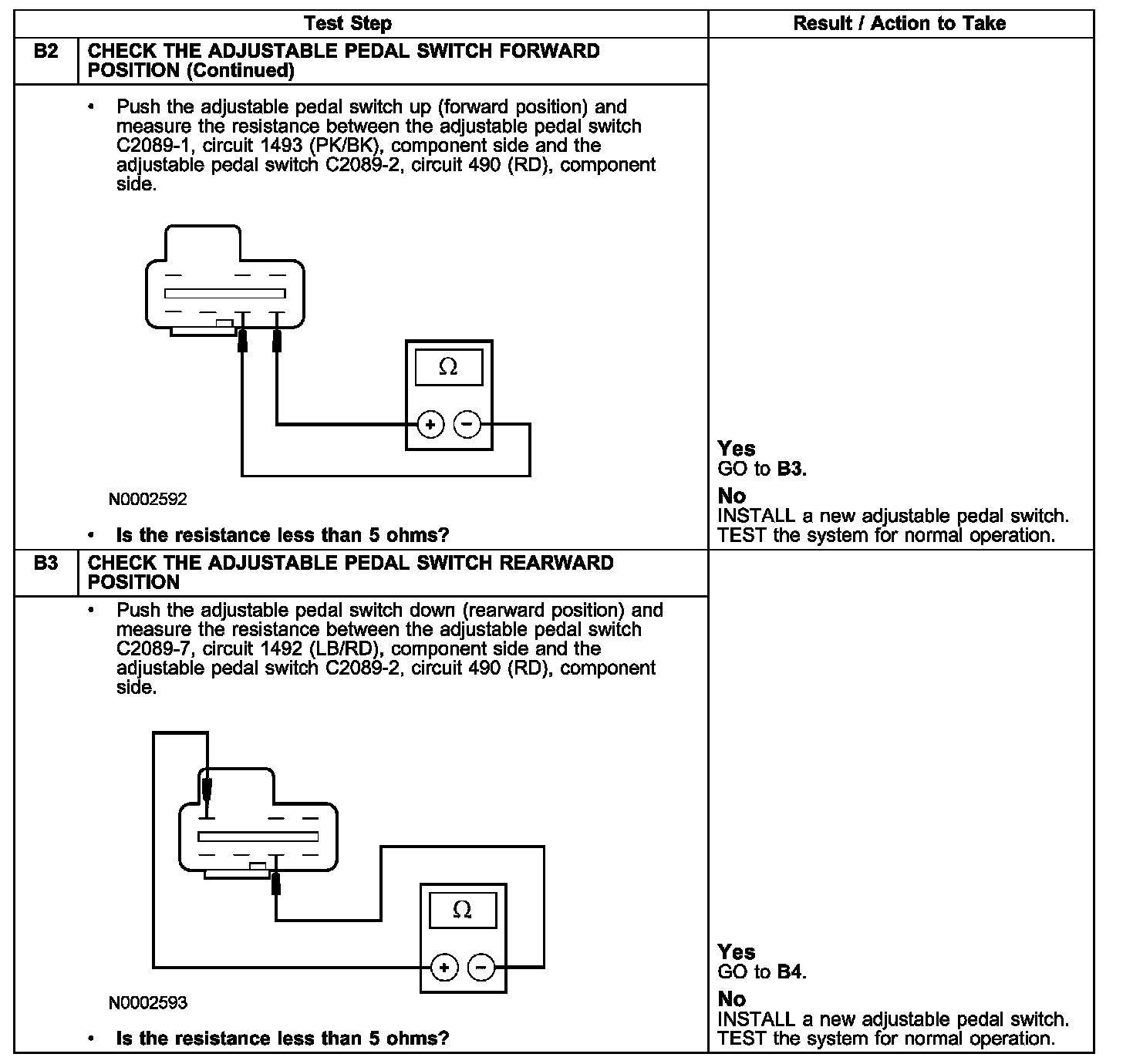

Tests B2 (continued) - B3:

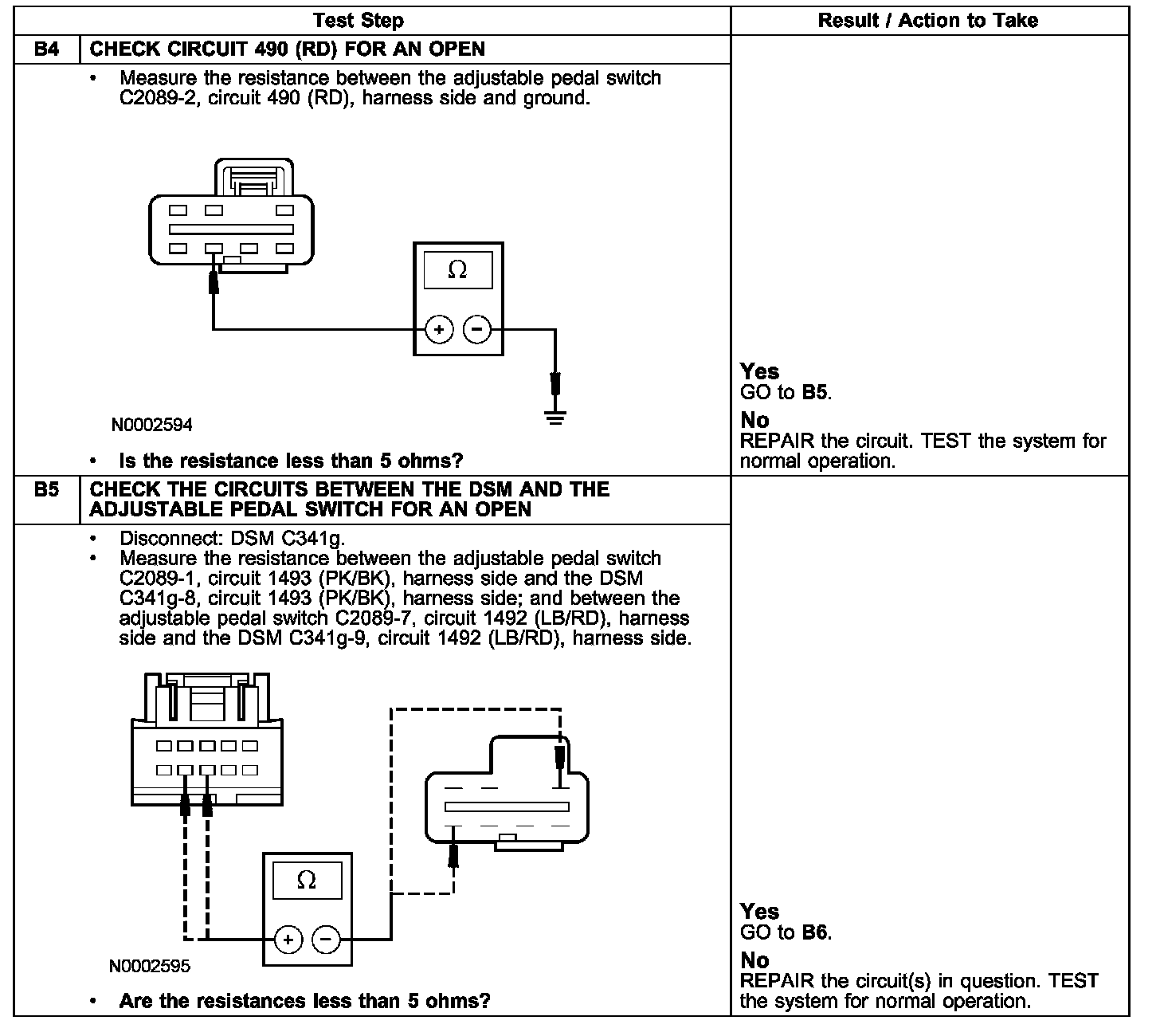

Tests B4 - B5:

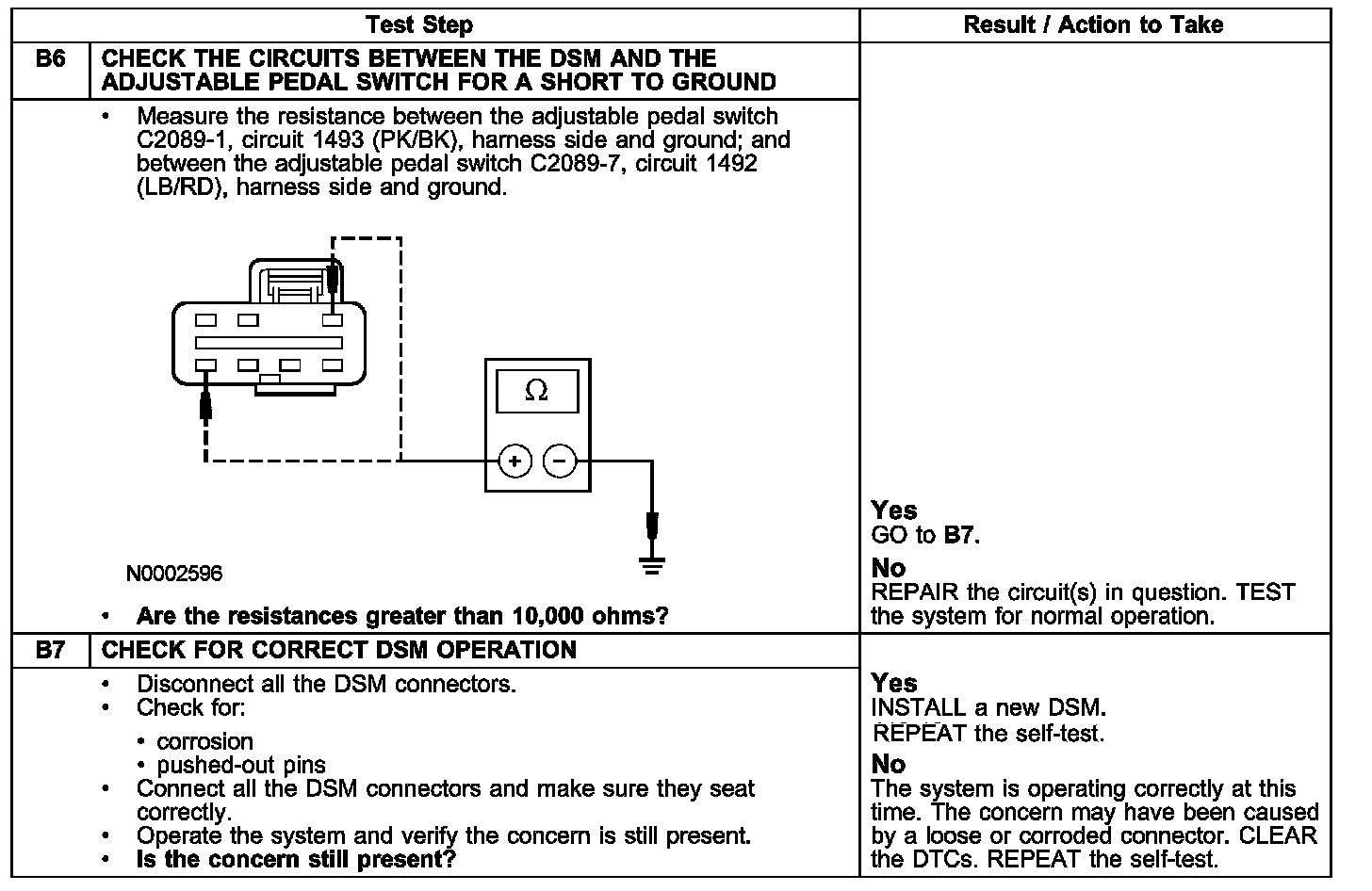

Tests B6 - B7:
PINPOINT TEST B: THE MANUAL SWITCH DOES NOT MOVE THE ADJUSTABLE PEDALS MEMORY IS FUNCTIONAL
