Test A: The Ignition Switch is Inoperative

Pinpoint Test A: The Ignition Switch Is Inoperative

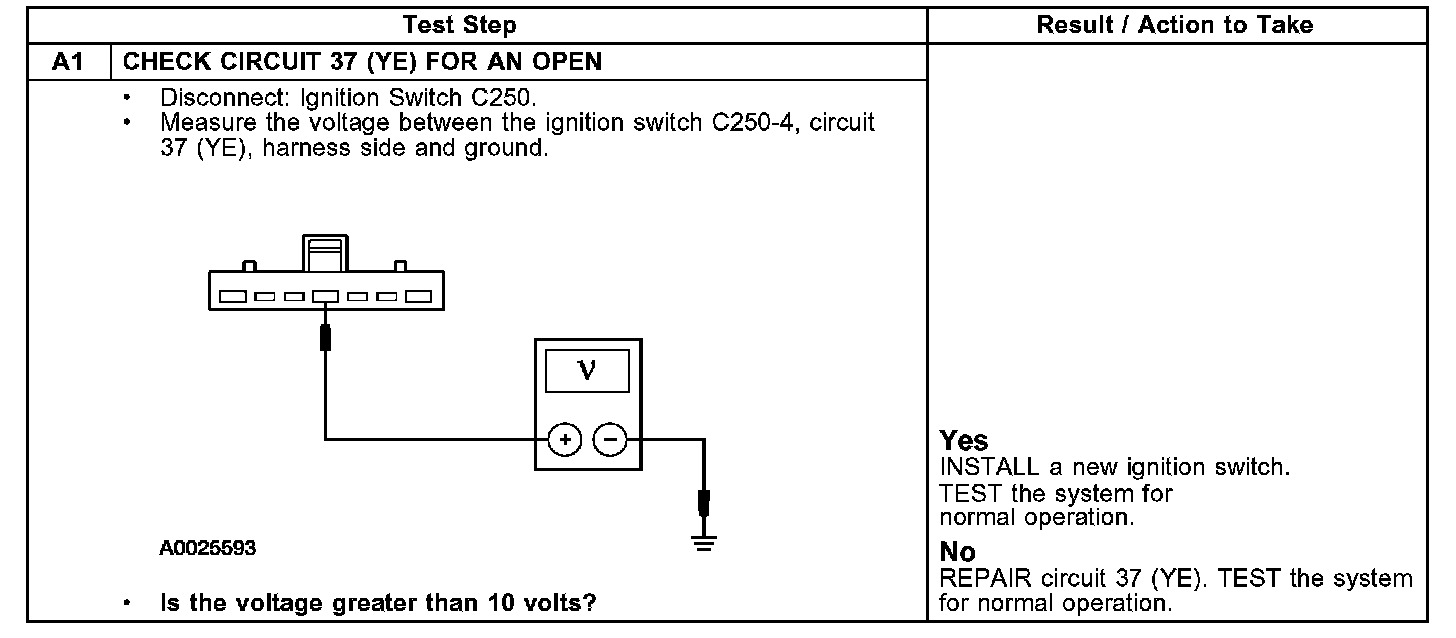

Test A1:





Normal Operation
The ignition switch receives overload protected B+ power from the battery junction box (BIB) fuse 23 (30A) through circuit 37 (YE). The ignition switch has 3 possible states:
^ OFF
^ ACC/RUN
^ START

Possible Causes
^ circuit 37 (YE) open
^ ignition switch
