Heating and Ventilation

BLOWER MOTOR







Removal and Installation

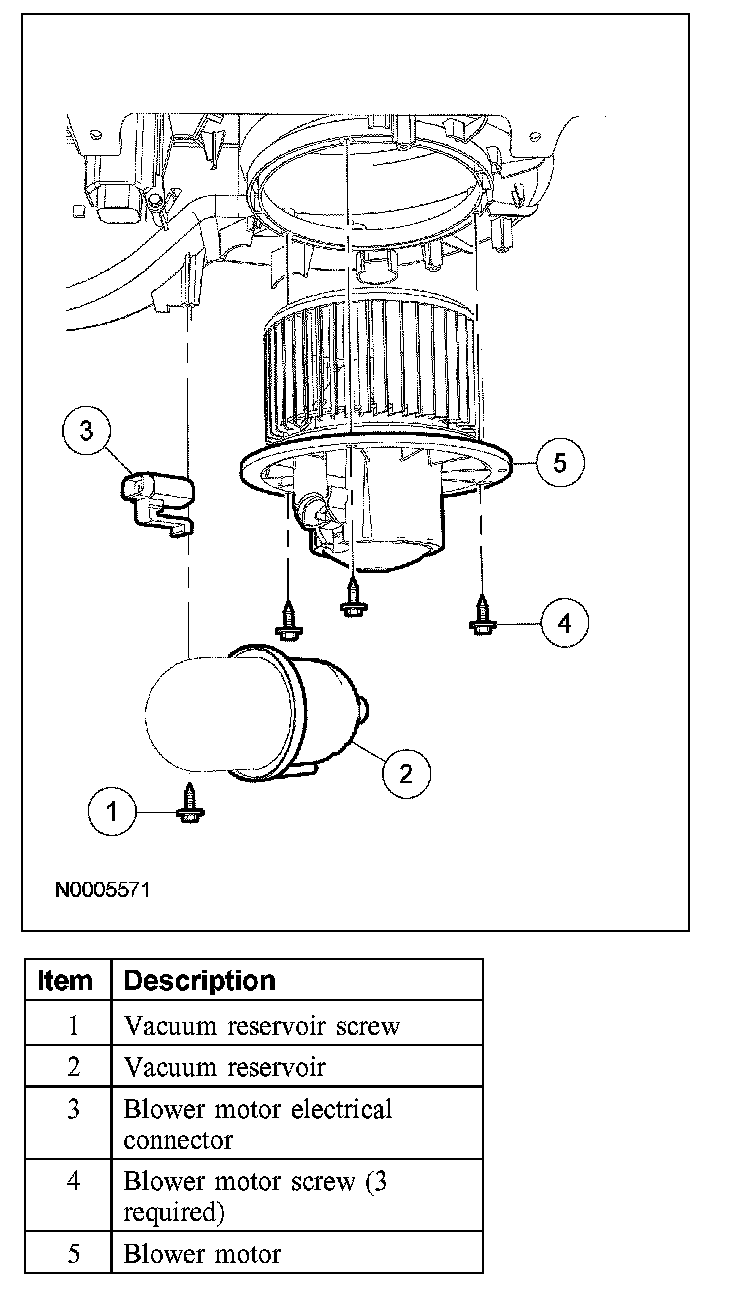

1. Remove the vacuum reservoir screw.
2. Position the vacuum reservoir aside.
3. Disconnect the blower motor electrical connector.
4. Remove the 3 blower motor screws.
5. Remove the blower motor.

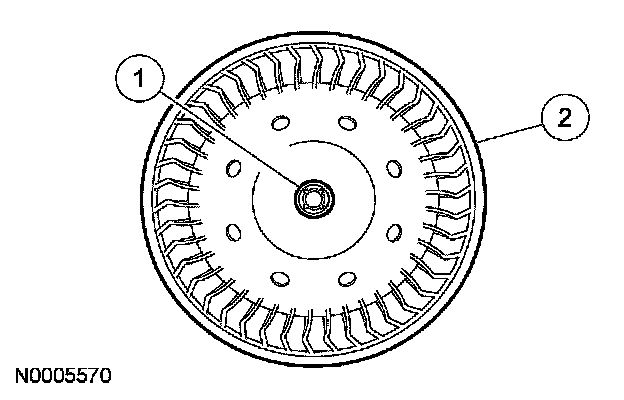

6. Remove the blower motor wheel from the blower motor.
1 Remove the push clip.
2 Remove the blower motor wheel.

7. To install, reverse the removal procedure.
