Auxiliary Climate Control

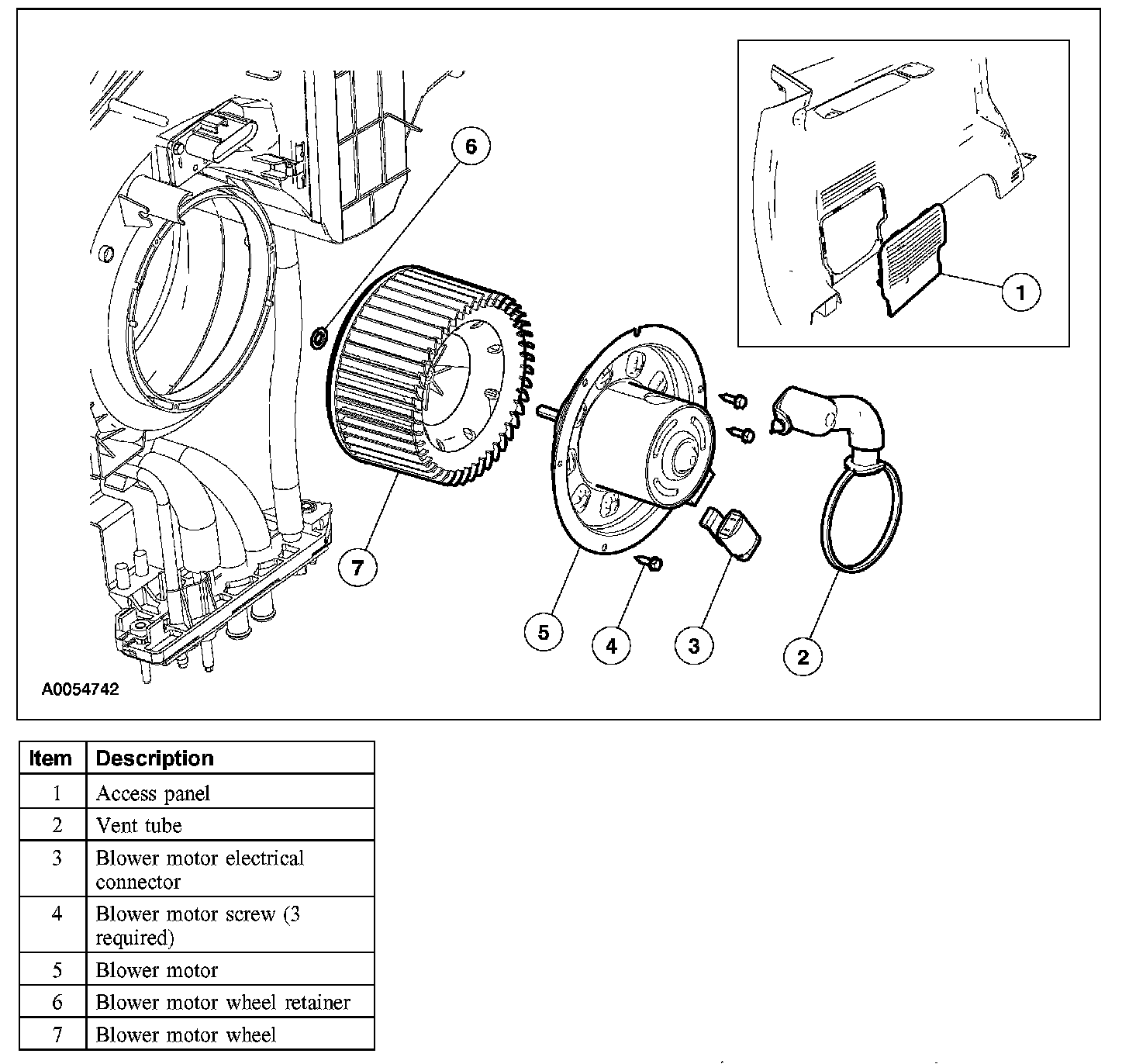

AUXILIARY BLOWER MOTOR







Removal and Installation
1. Remove the access panel.
2. Remove the vent tube.
3. Disconnect the blower motor electrical connector.
4. Remove the 3 blower motor screws.
5. Remove the blower motor.
6. Remove the blower motor retainer.
7. Remove the blower motor wheel.
8. To install, reverse the removal procedure.
