Home >> Mercury >> 2005 >> Mountaineer 2WD V8-4.6L SOHC VIN W >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Blower Motor Resistor C293

Blower Motor Resistor C293

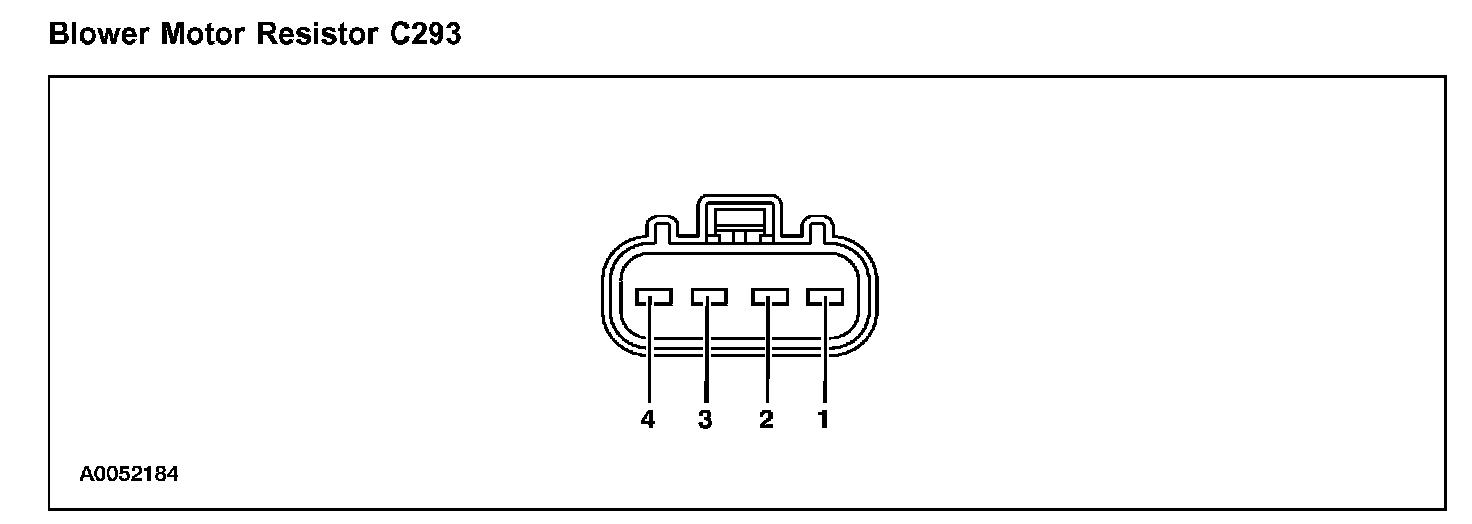

Blower Motor Resistor C293 (Part 1):



Blower Motor Resistor C293 (Part 2):
