Diagnostic Vacuum Diagrams - Manual Climate Control System

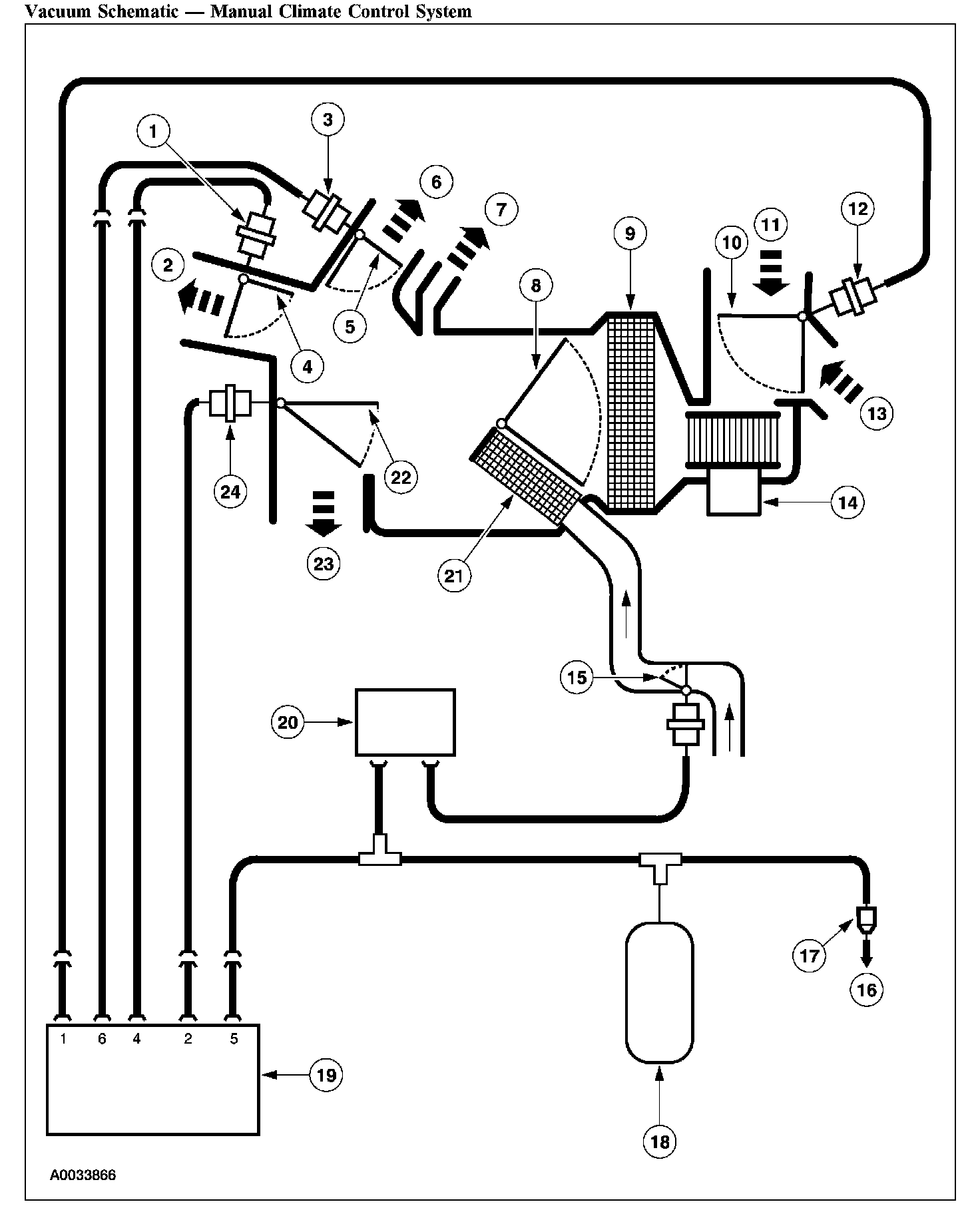

Vacuum Schematic - Manual Climate Control System (Part 1):

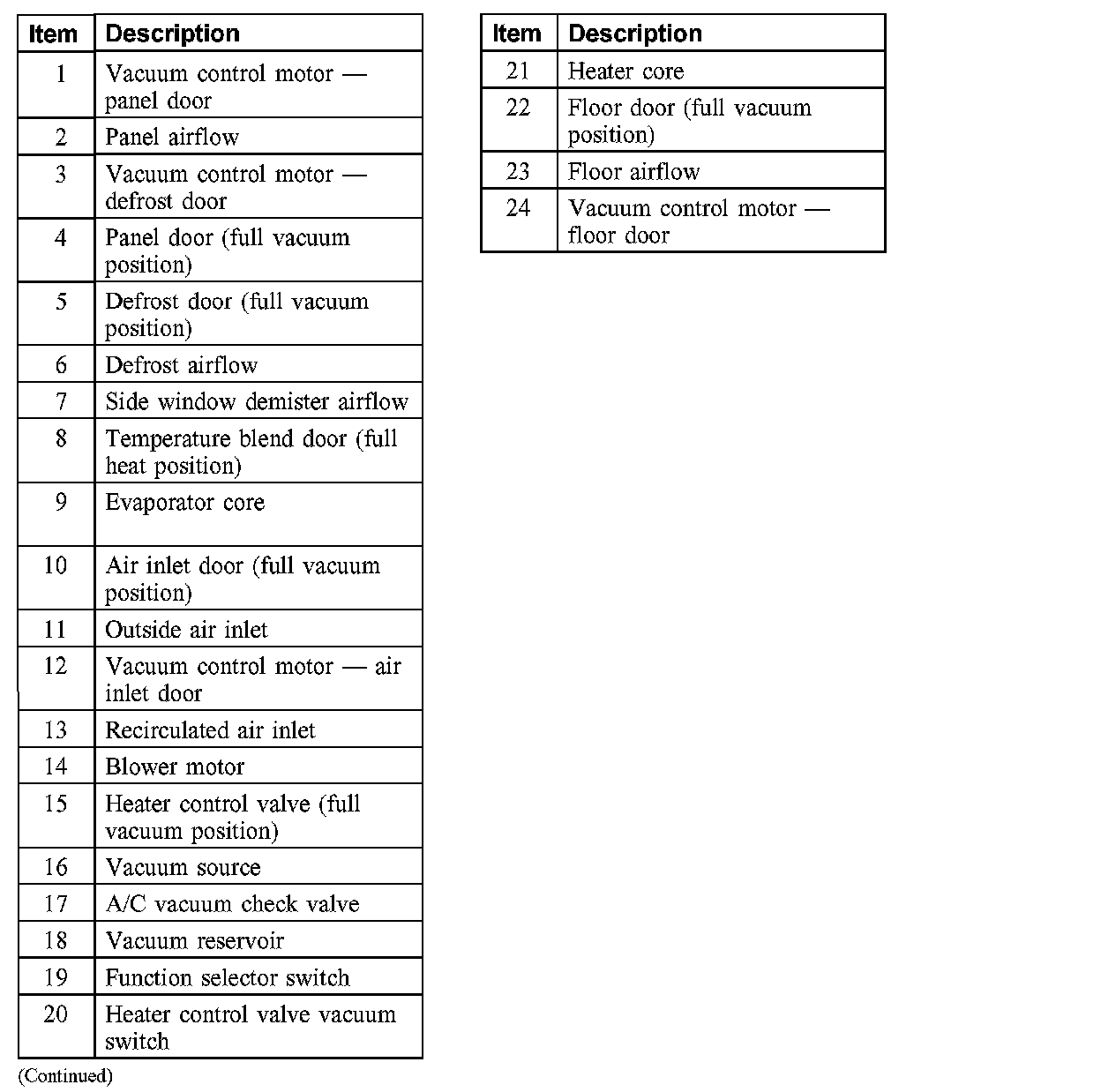

Vacuum Schematic - Manual Climate Control System (Part 2):

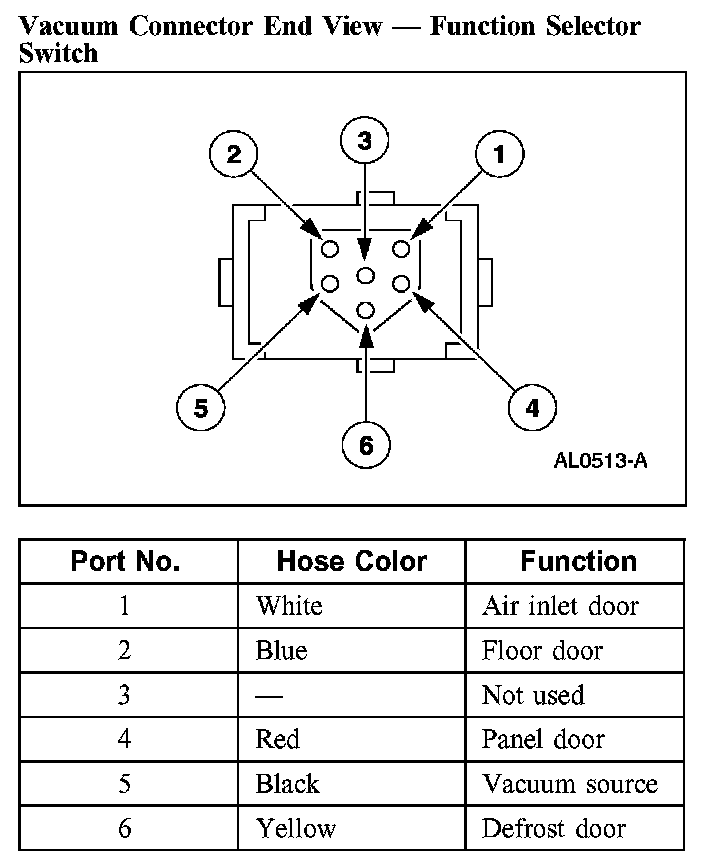

Vacuum Connector End View - Function Selector Switch:

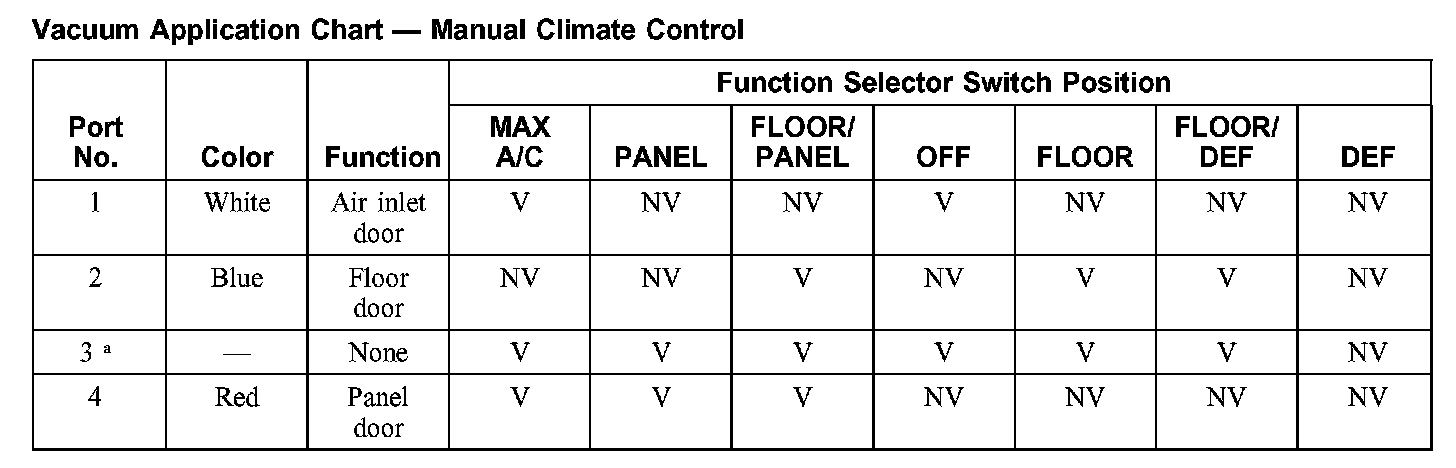

Vacuum Application Chart - Manual Climate Control (Part 1):

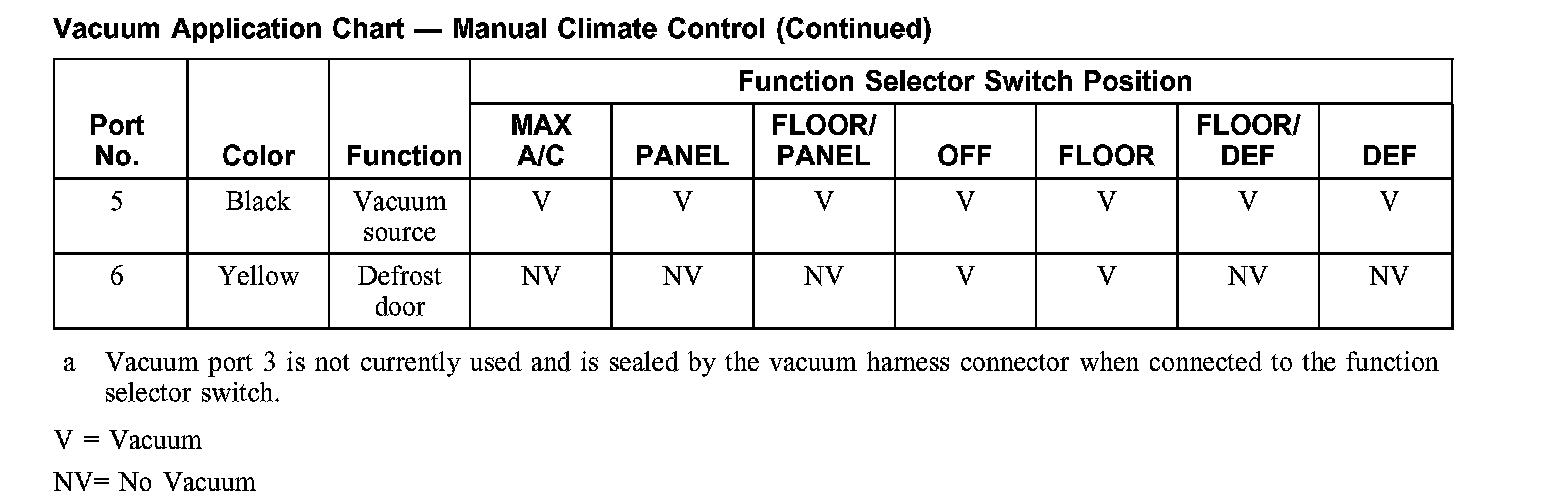

Vacuum Application Chart - Manual Climate Control (Part 2):

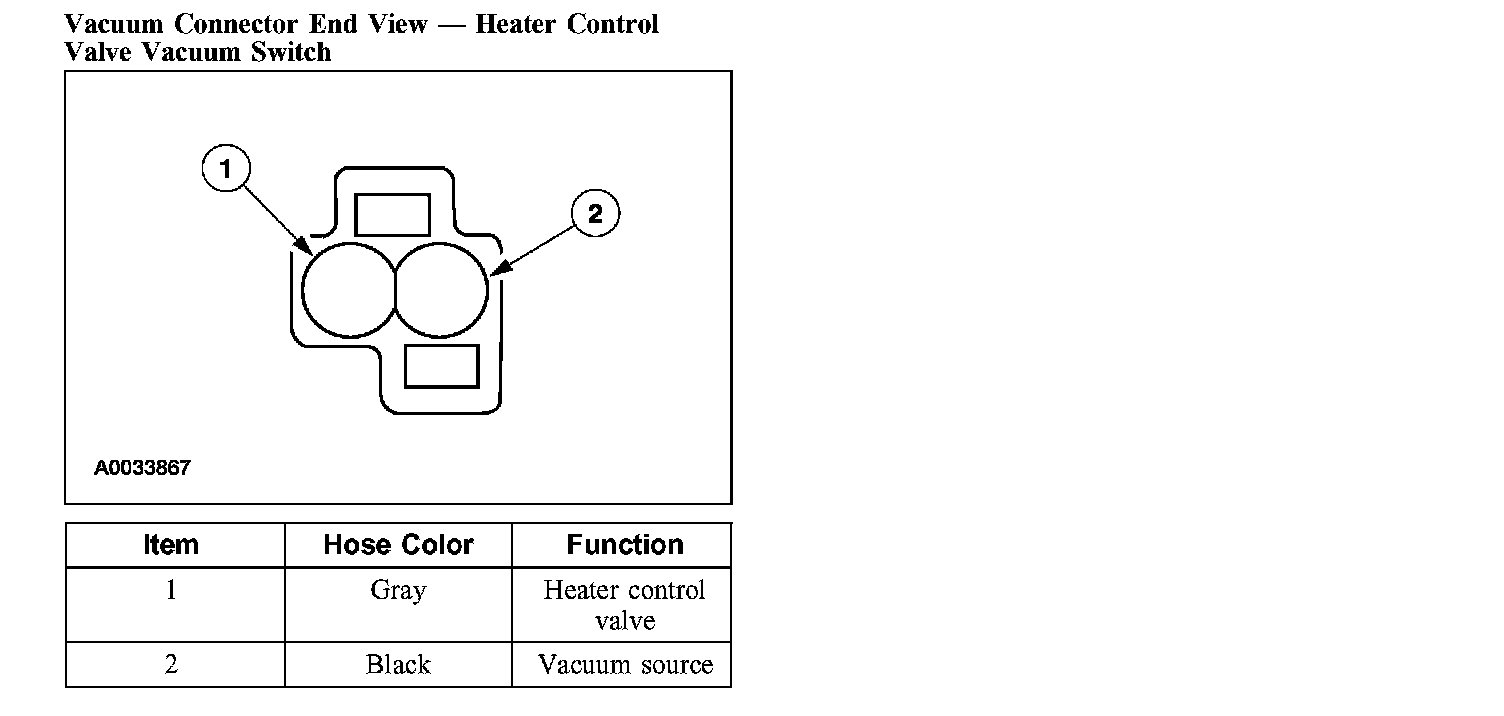

Vacuum Connector End View - Heater Control Valve Vacuum Switch:
