Test T: LFC 49/DTC C1981 - Front Driver Seat Track Position Sensor Circuit Fault

PINPOINT TEST T: LFC 49/DTC C1981 - FRONT DRIVER SEAT TRACK POSITION SENSOR CIRCUIT FAULT

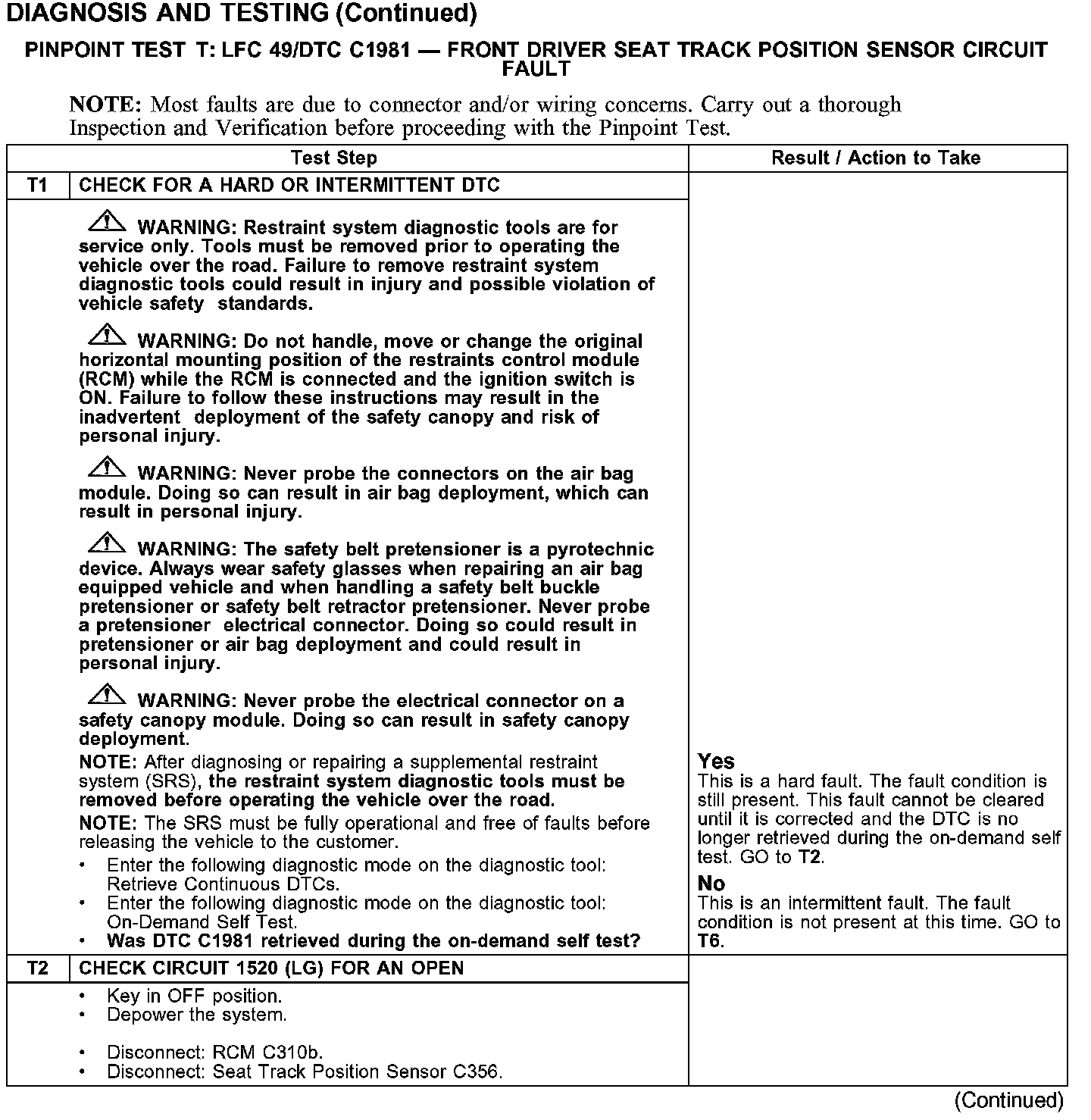

T1-T2:

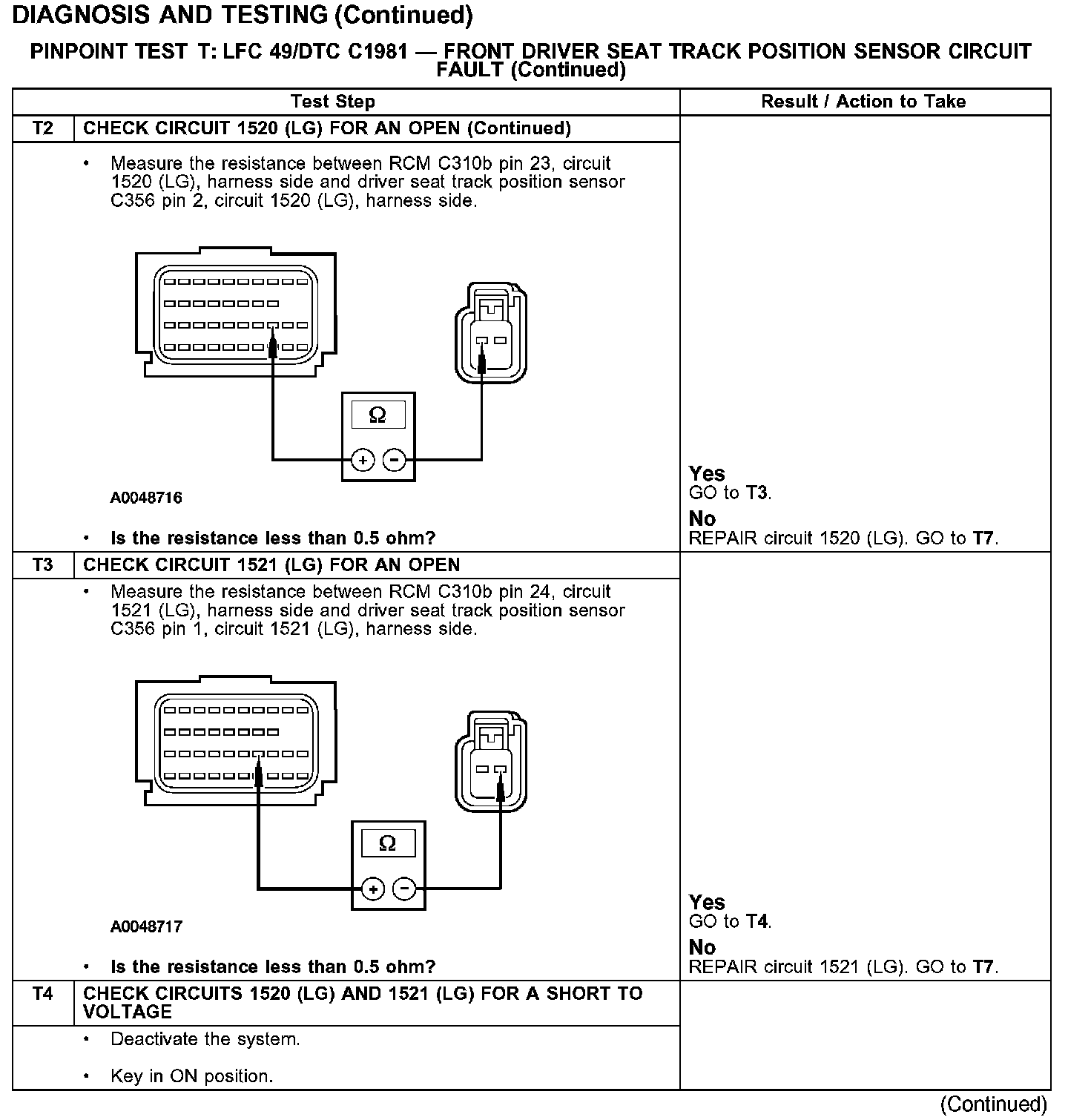

T2-T4:

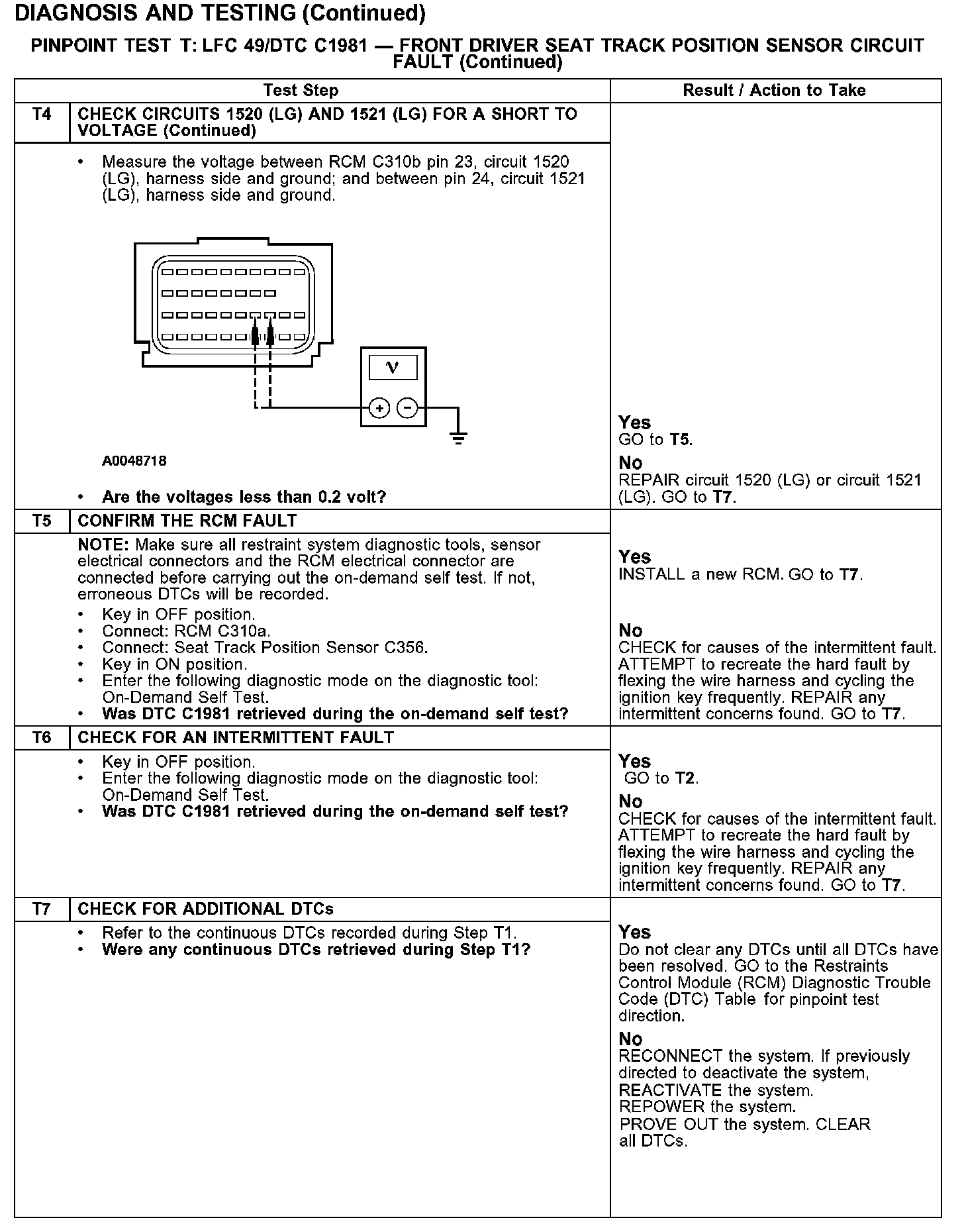

T4-T7:

Normal Operation
The restraints control module (RCM) monitors the driver seat track position sensor circuits. If the RCM detects a open or short to battery, it will store diagnostic trouble code (DTC) C1982 in memory and flash lamp fault code (LFC) 49 (or higher priority code if one exists) on the air bag indicator.

Possible Causes
A driver seat track position sensor open circuit or short to battery fault can be caused by:
- damaged wiring, terminals or connectors.
- RCM is faulted.
