Safety Belt System - Exploded View, Second Row, 60/40

SAFETY BELT SYSTEM - EXPLODED VIEW, SECOND ROW, 60/40

Removal and Installation

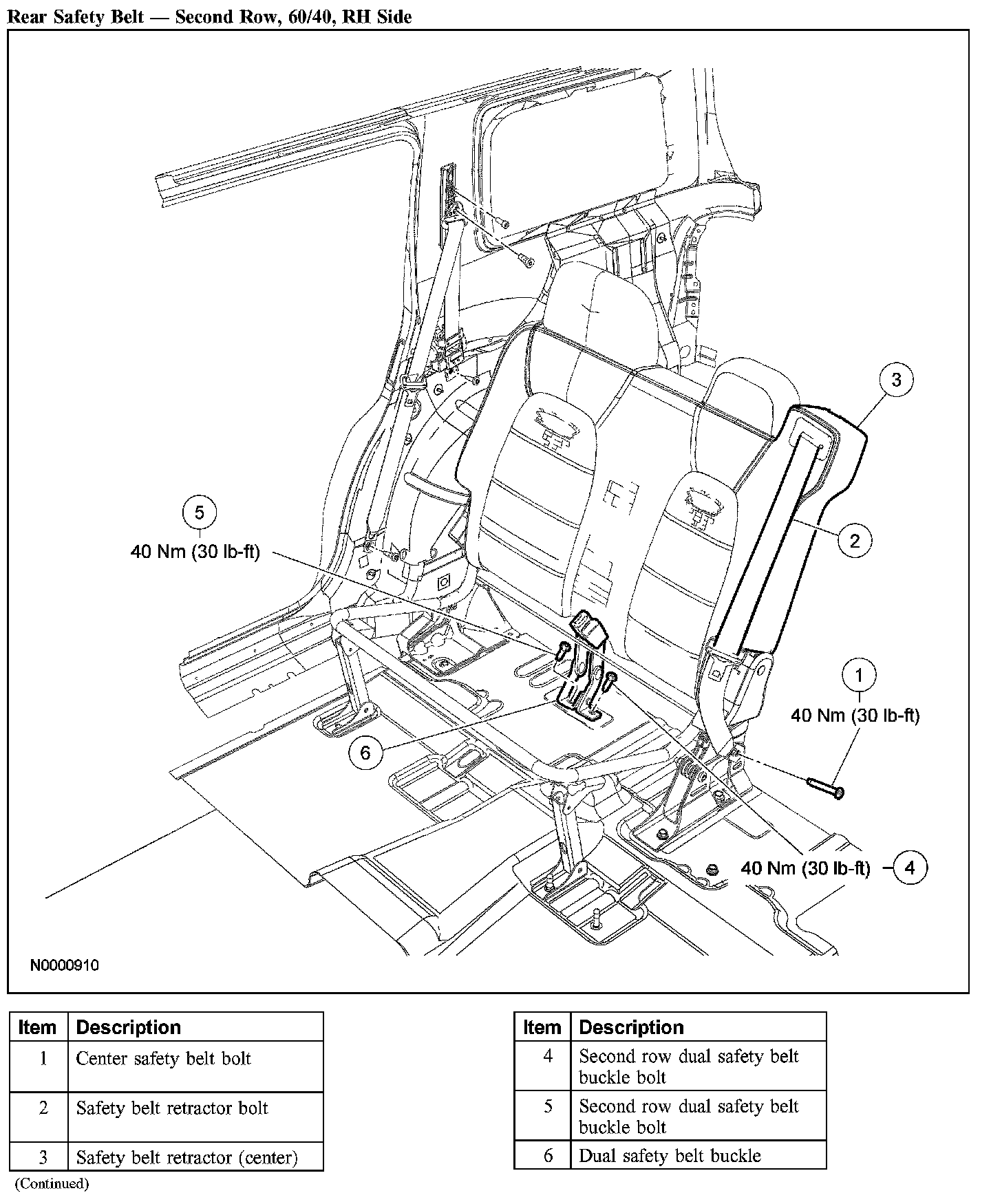

Rear Safety Belt - Second Row, 60/40, RH Side:

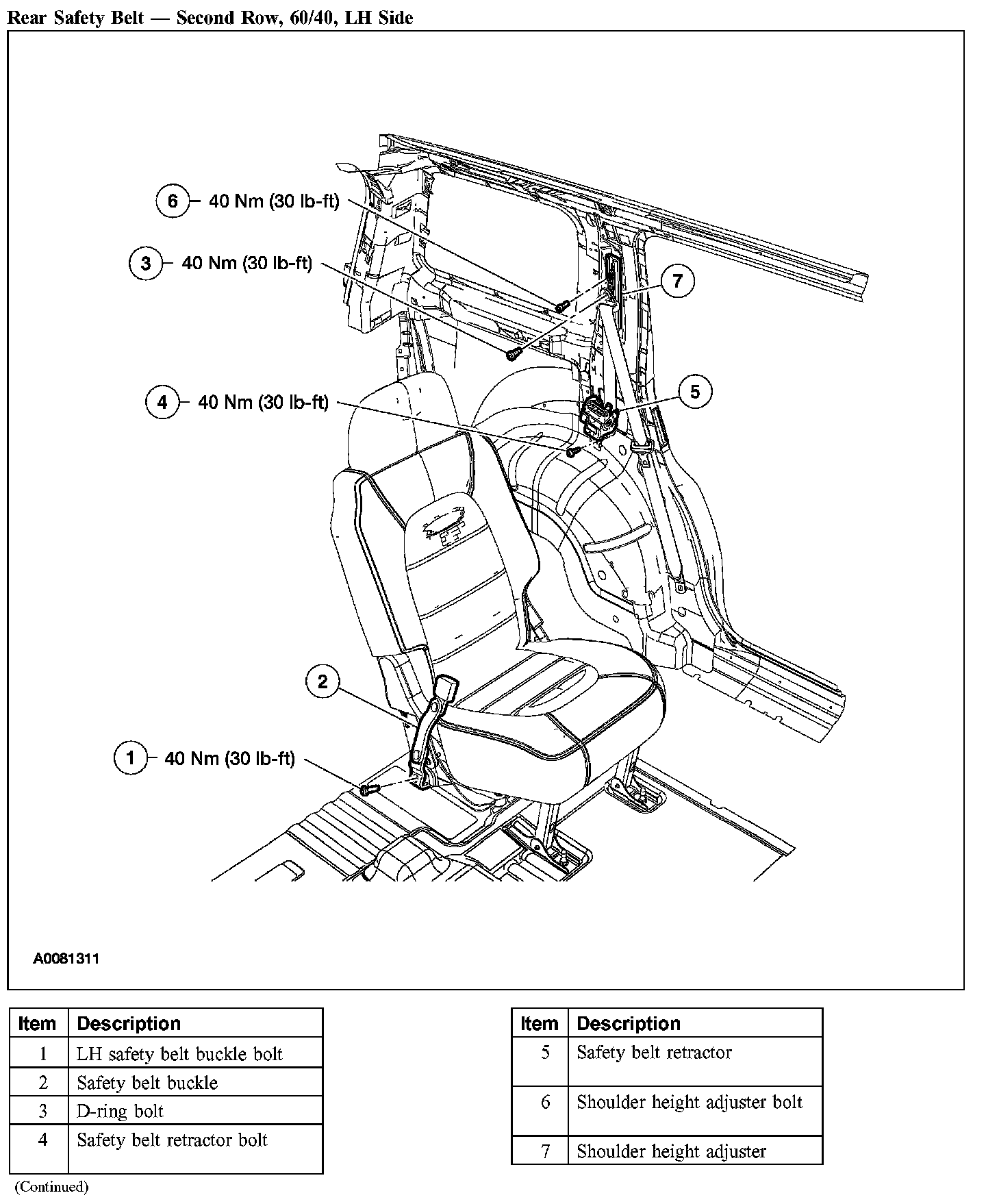

Rear Safety Belt - Second Row, 60/40, LH Side:

1. For additional information, refer to the procedures.
