Mountaineer 2WD V8-4.6L SOHC VIN W
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit Reference
>>

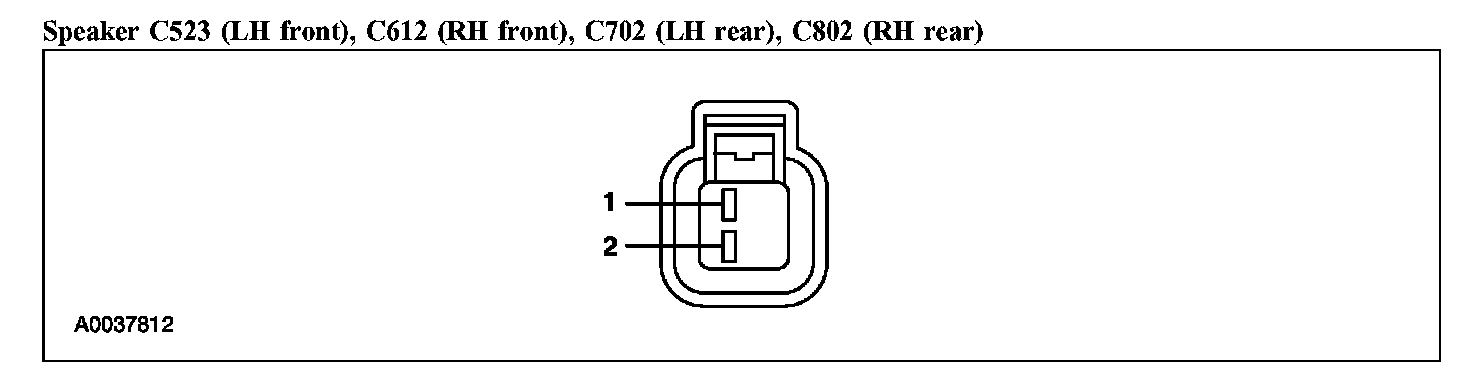

Speaker C523 (LH front), C612 (RH front), C702 (LH rear), C802 (RH rear)
Speaker C523 (LH front), C612 (RH front), C702 (LH rear), C802 (RH rear)

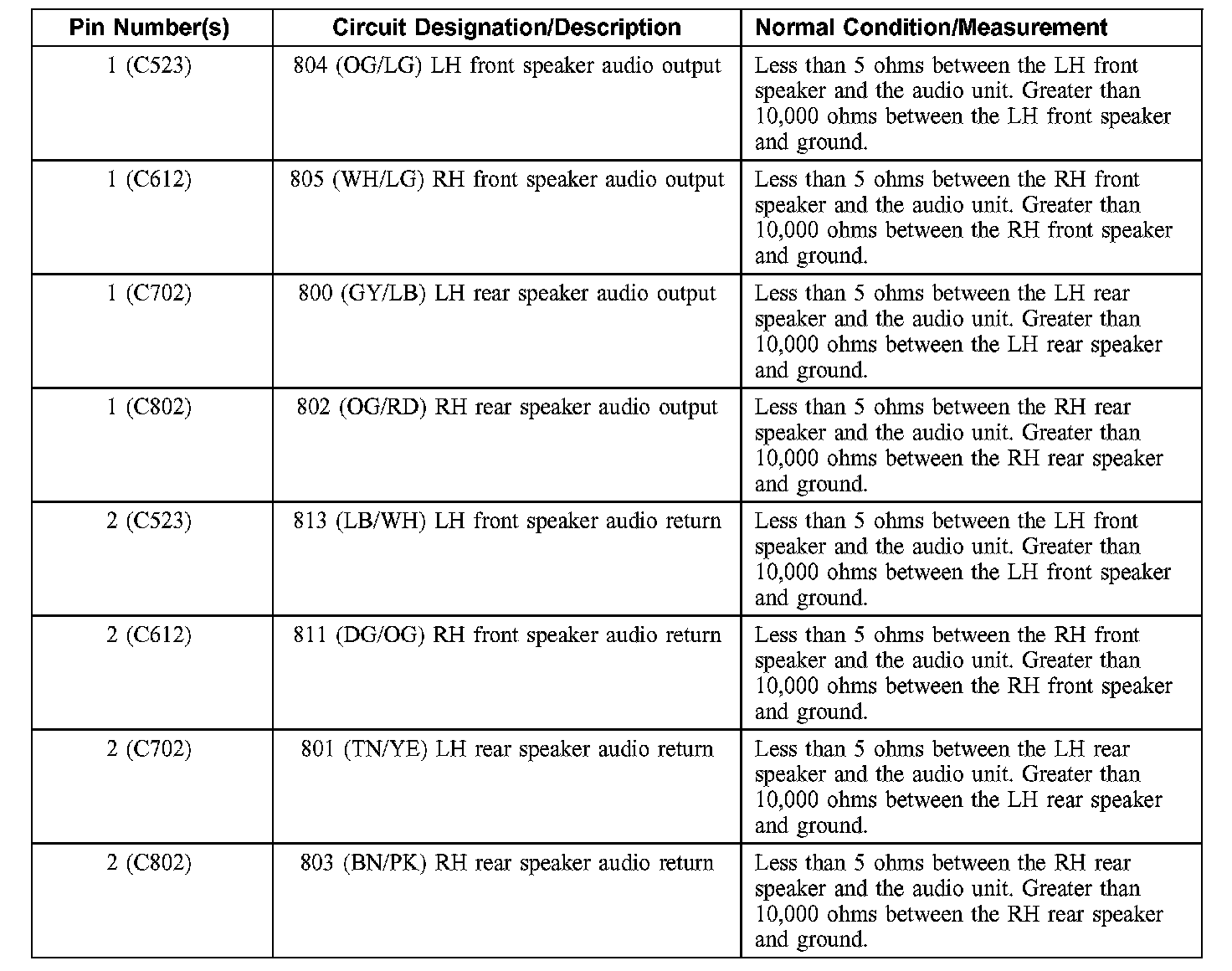

Speaker C523 (LH Front), C612 (RH Front), C702 (LH Rear), C802 (RH Rear) (Part 1):
Speaker C523 (LH Front), C612 (RH Front), C702 (LH Rear), C802 (RH Rear) (Part 2):
