Test I: The Video System Is Inoperative

PINPOINT TEST I: THE VIDEO SYSTEM IS INOPERATIVE

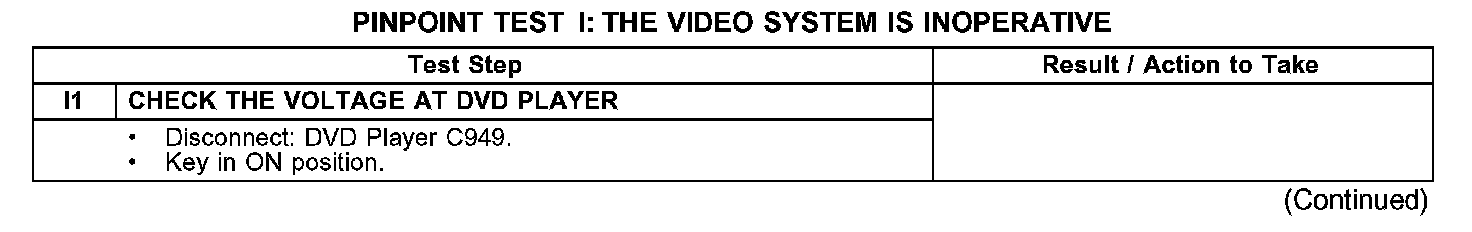

I1:

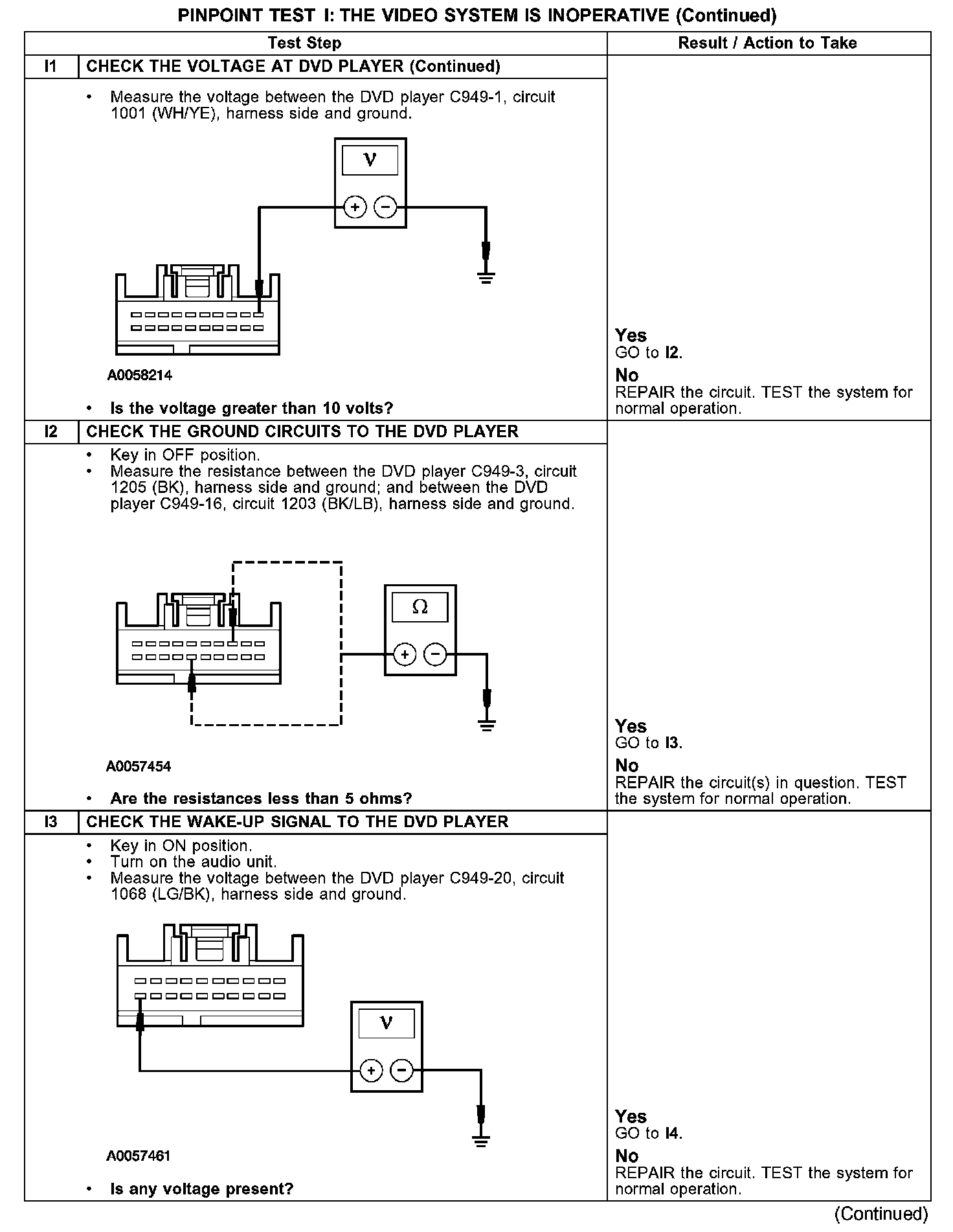

I1-I3:

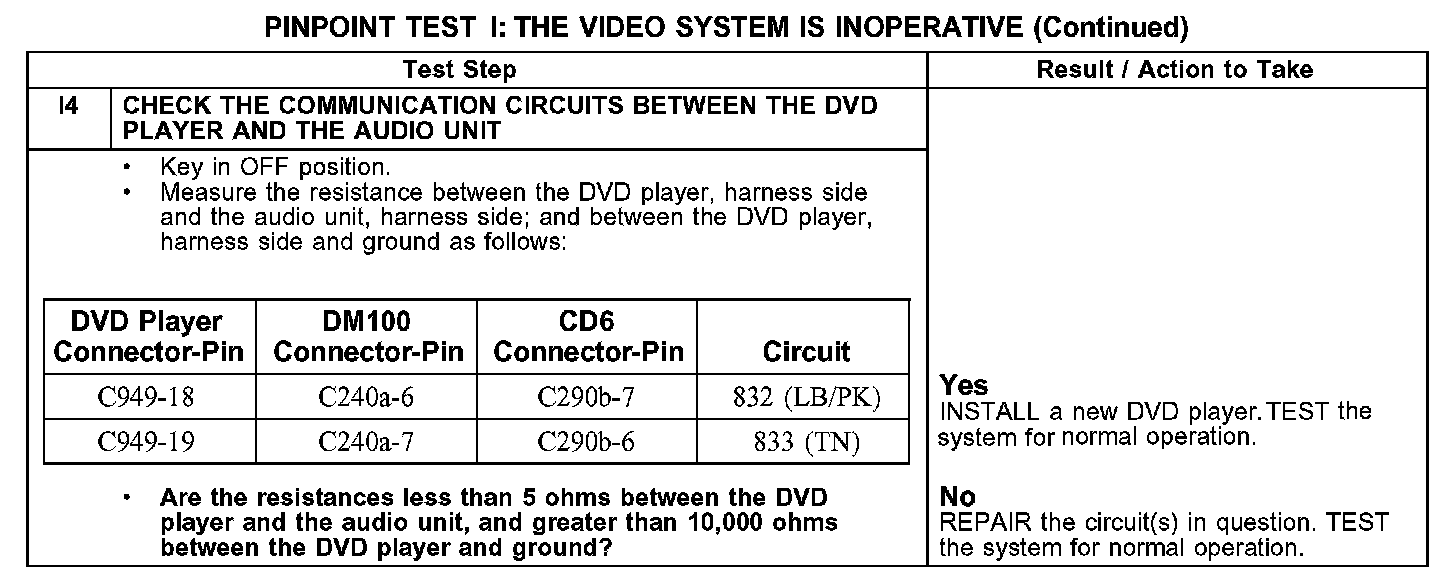

I4:

Normal Operation
When the ignition switch is turned to the ON or ACC position, voltage is supplied to the digital versatile disc (DVD) player. Once the DVD player is powered up, a wake-up signal is sent to the audio unit through circuit 1068 so that communication between the audio unit and the DVD player can begin. When a video disc is inserted into the DVD player and the PLAY button is pressed, an image should be displayed on the screen.

Possible Causes
- circuit 832 (LB/PK) open or shorted to ground
- circuit 833 (TN) open or shorted to ground
- circuit 1001 (WH/YE) open
- circuit 1068 (LG/BK) open
- circuit 1203 (BK/LB) open
- circuit 1205 (BK) open
- DVD player
