Test J: The Video System Does Not Operate Correctly - No Sound From One or More Speakers, Not All Speakers

PINPOINT TEST J: THE VIDEO SYSTEM DOES NOT OPERATE CORRECTLY - NO SOUND FROM ONE OR MORE SPEAKERS, NOT ALL SPEAKERS

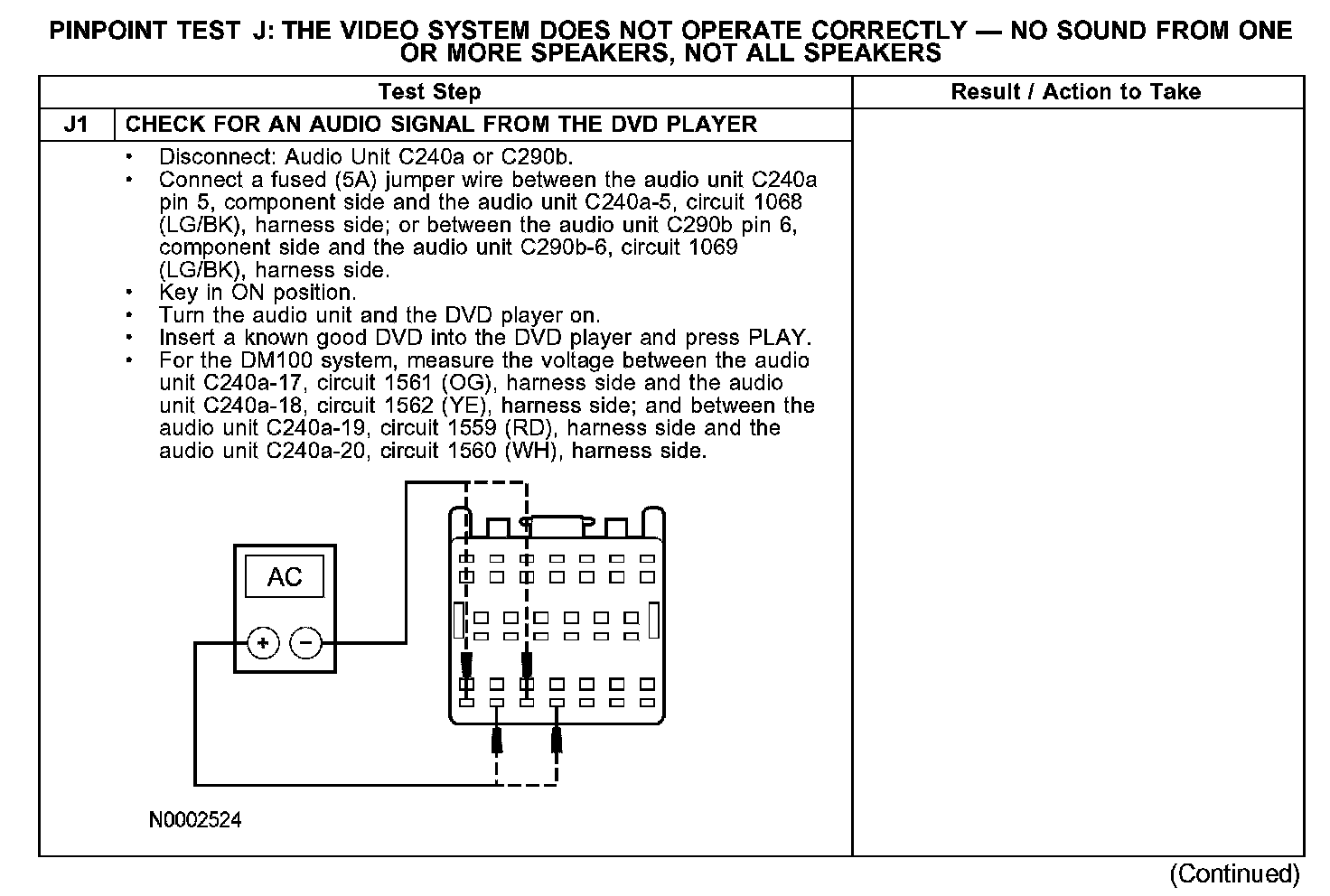

J1:

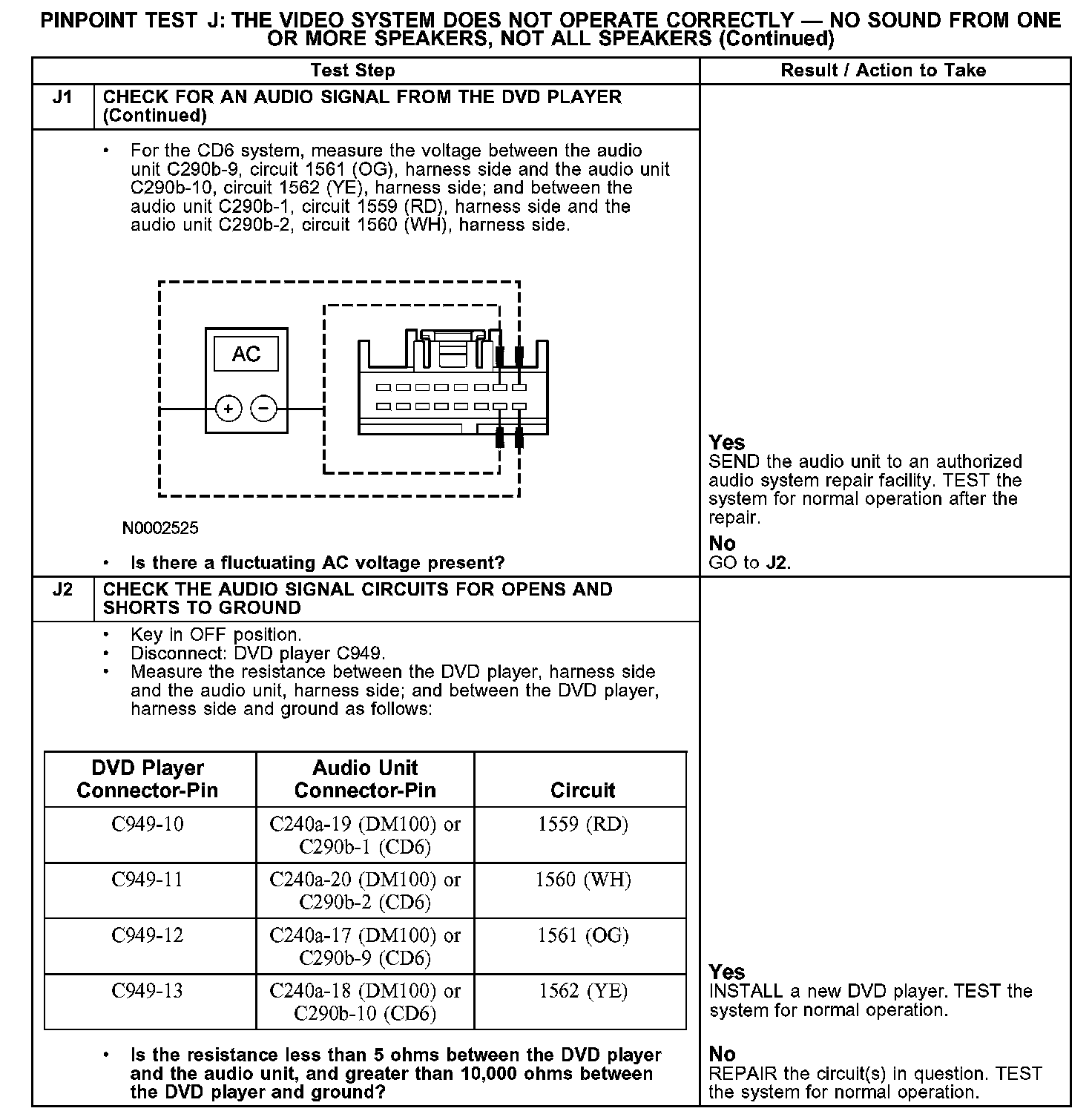

J1-J2:

Normal Operation
When a movie is being played using the DVD player, sound should be heard through all speakers and the subwoofer.

Possible Causes
- circuit 1559 (RD) open or short to ground
- circuit 1560 (WH) open or short to ground
- circuit 1561 (OG) open or short to ground
- circuit 1562 (YE) open or short to ground
- DVD player
- audio unit
