Audio Unit

AUDIO UNIT

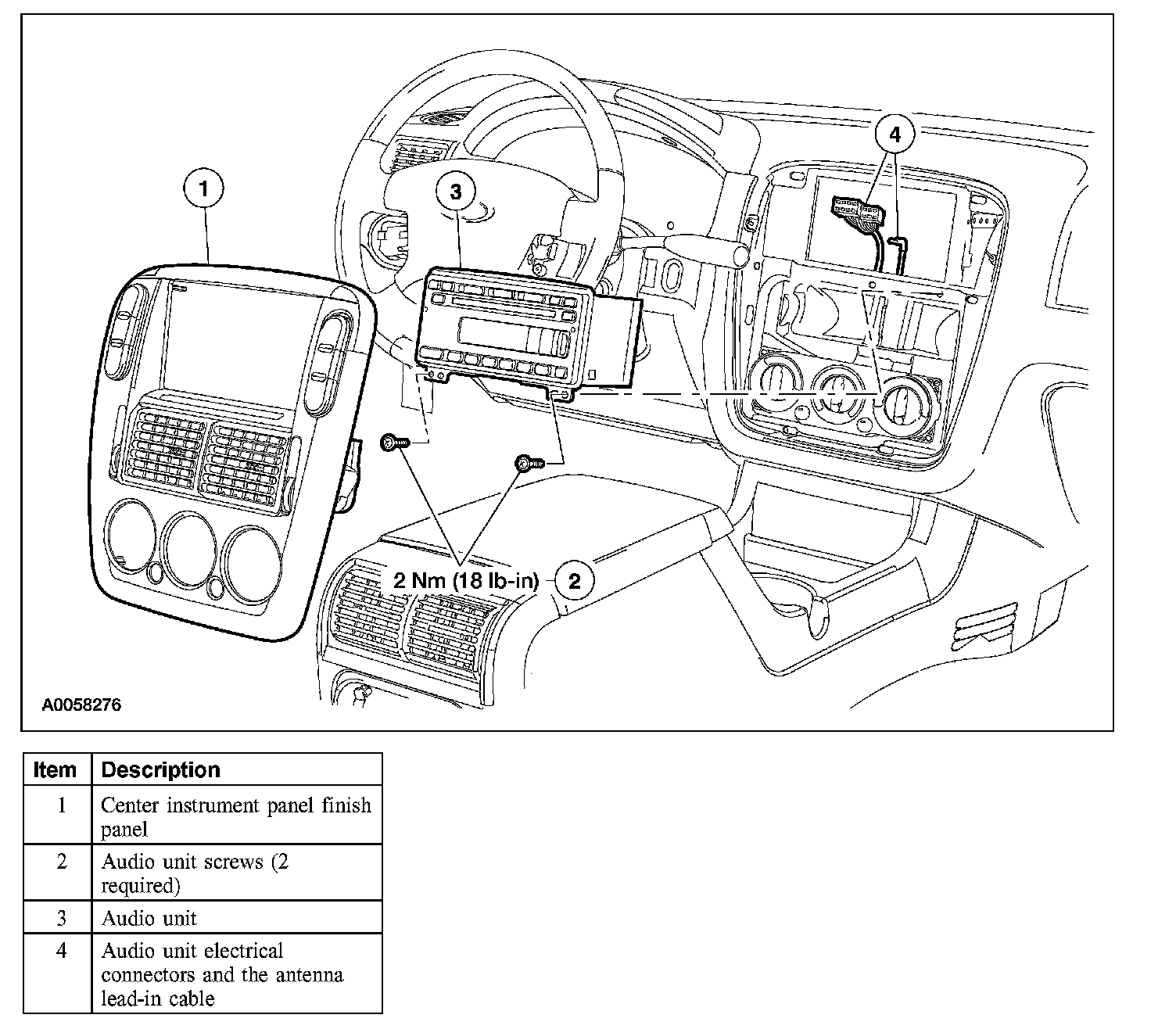

Removal and Installation

1. NOTE: Make sure the ignition switch is in the off position.

Remove the center instrument panel finish panel.

2. Remove the 2 screws and the audio unit.
- Disconnect the audio unit electrical connectors and the antenna lead-in cable.
- To install, tighten to 2 Nm (18 lb-in).

3. To install, reverse the removal procedure.
