Test E: Panic Feature Is Inoperative/Does Not Operate Correctly

PINPOINT TEST E: PANIC FEATURE IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

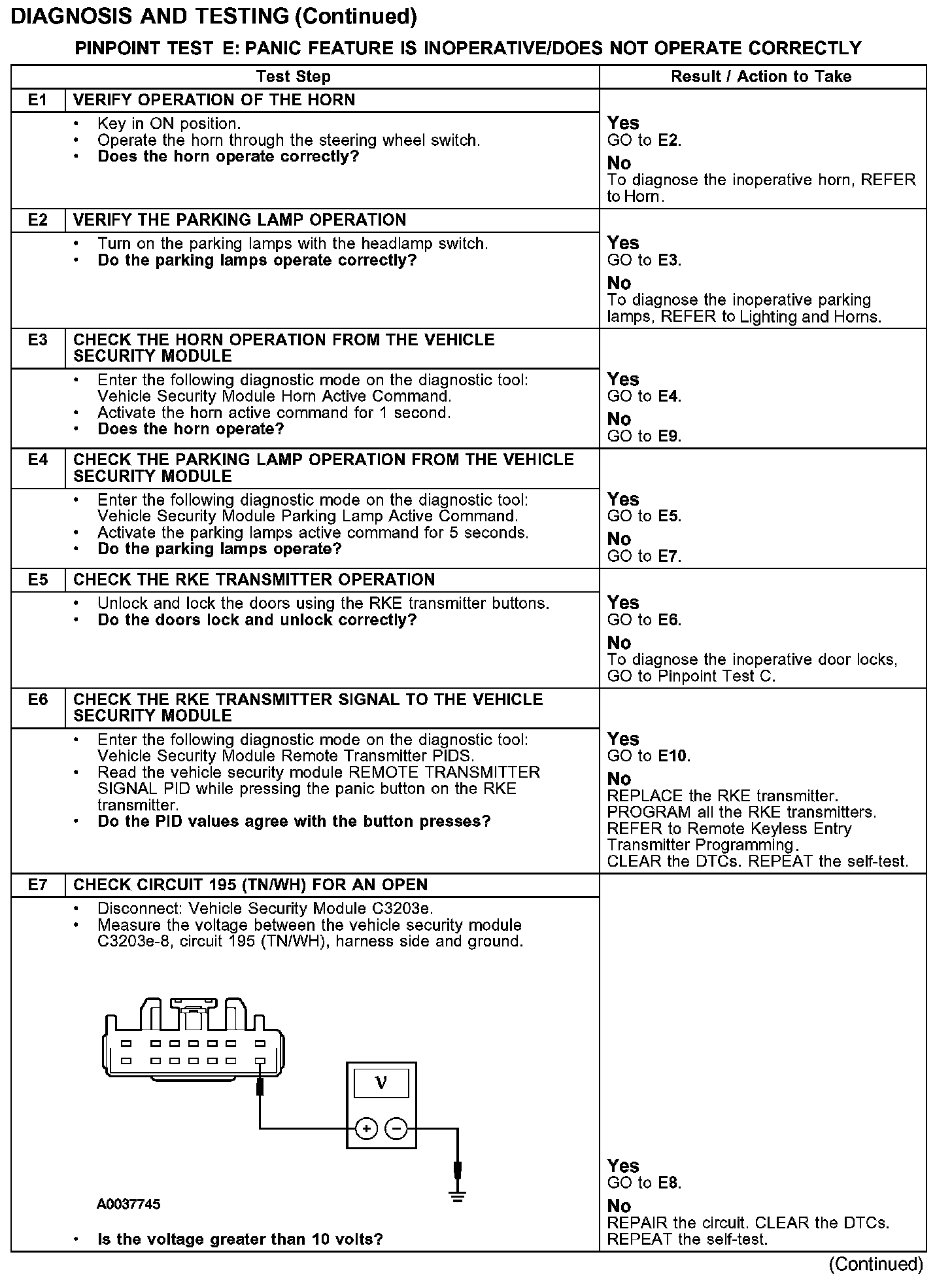

E1-E7:

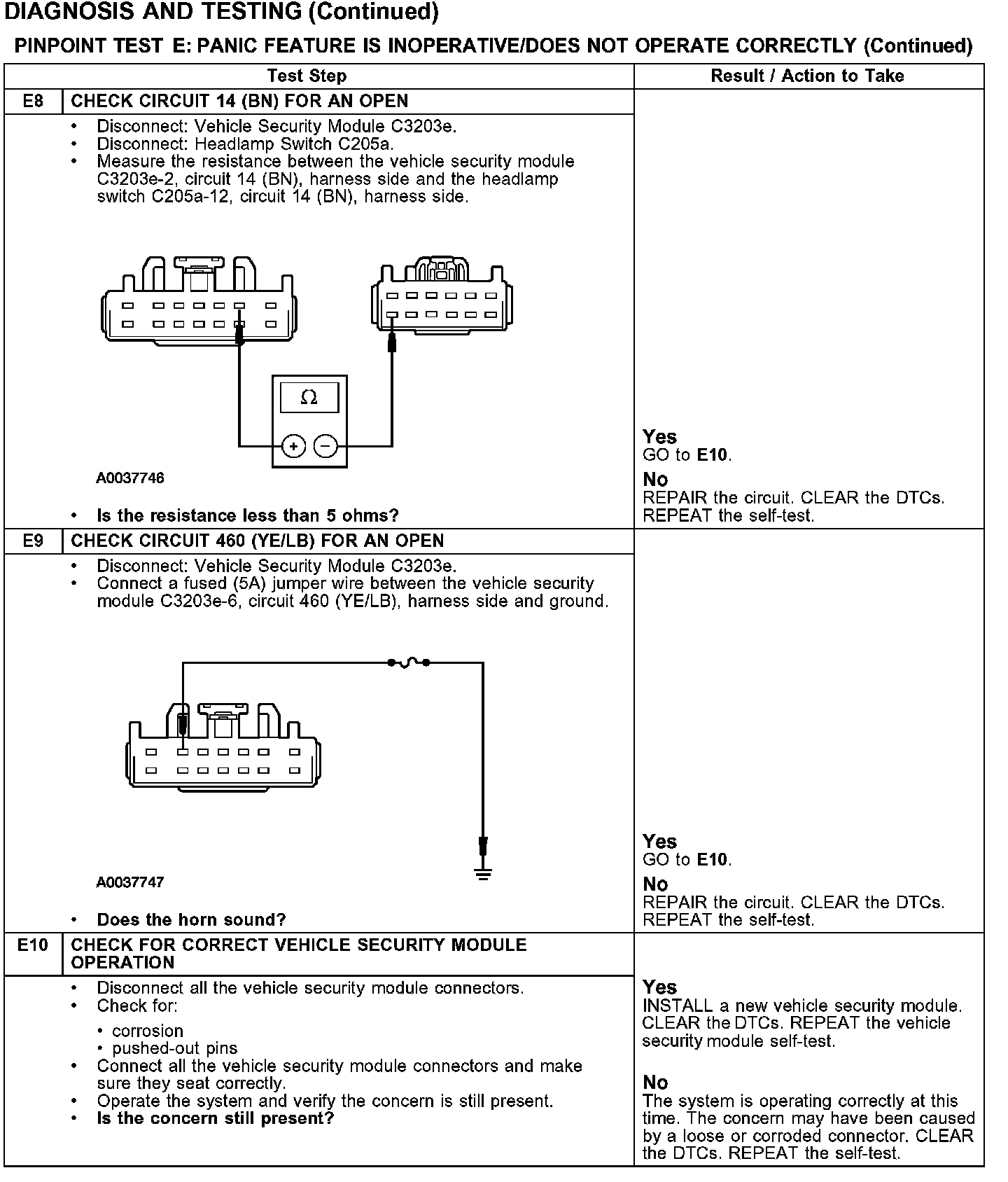

E8-E10:

Normal Operation
With the panic feature activated, the vehicle security module supplies ground to circuit 460 (YE/LB), energizing the horn relay which supplies voltage to circuit 6 (YE/LG). This activates the horn and circuit 14 (BN) to activate the parking lamps.

Possible Causes
- circuit 460 (YE/LB) open
- circuit 195 (TN/WH) open
- circuit 14 (BN) open
- remote keyless entry (RKE) transmitter
- vehicle security module
