Test I: The Liftgate Window Glass Release Is Inoperative

PINPOINT TEST I: THE LIFTGATE WINDOW GLASS RELEASE IS INOPERATIVE

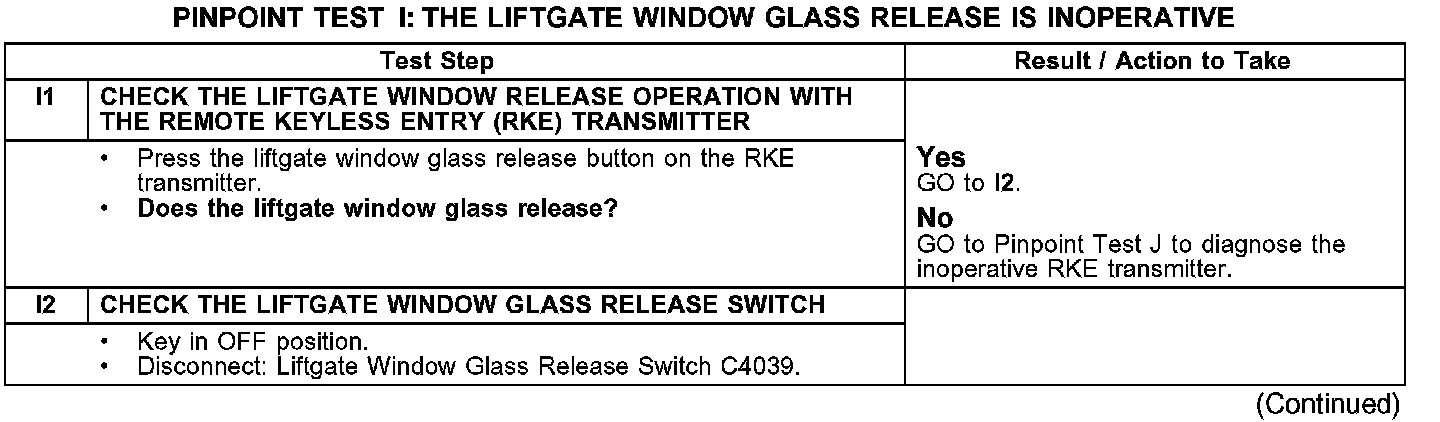

I1-I2:

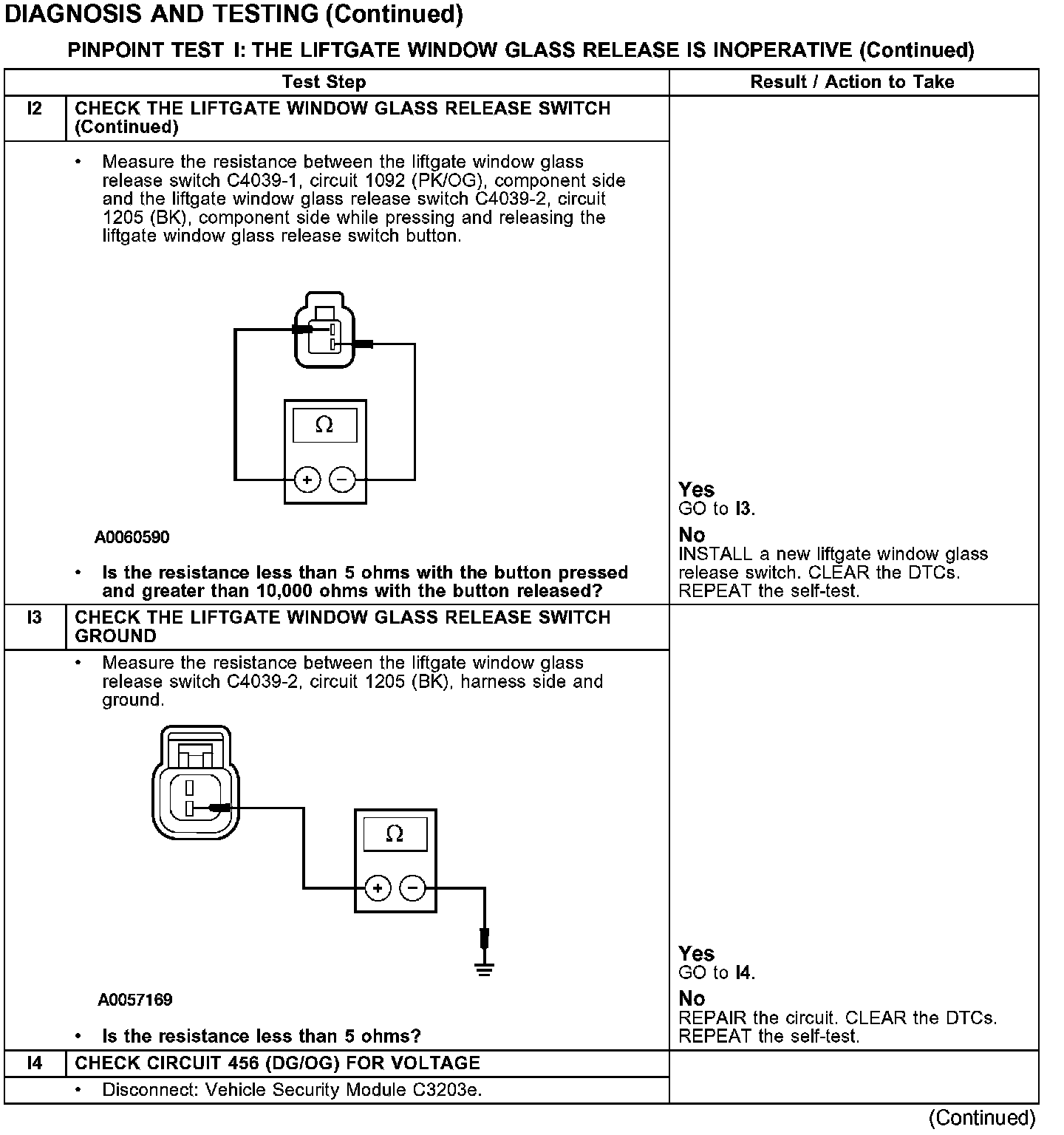

I2-I4:

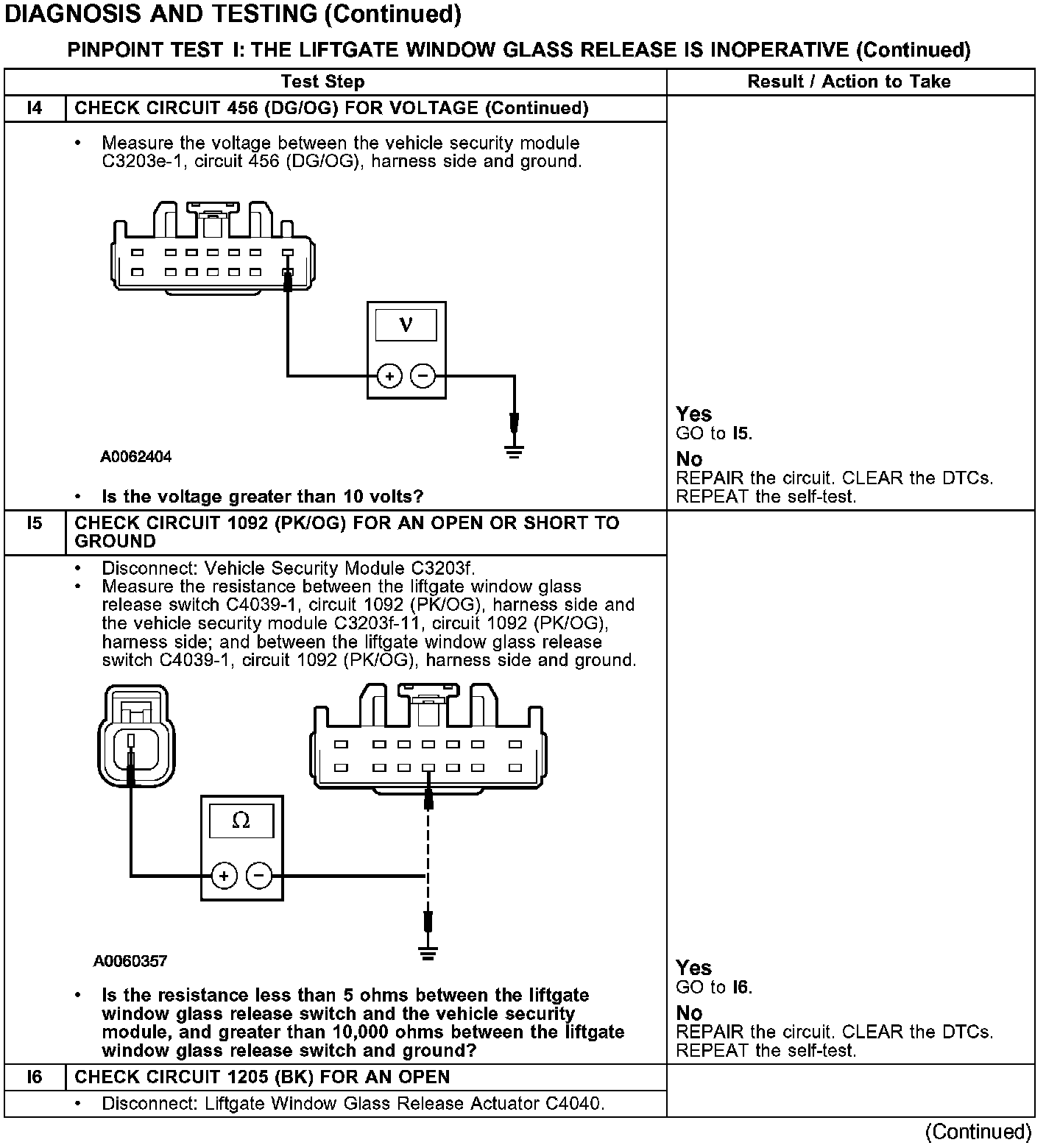

I4-I6:

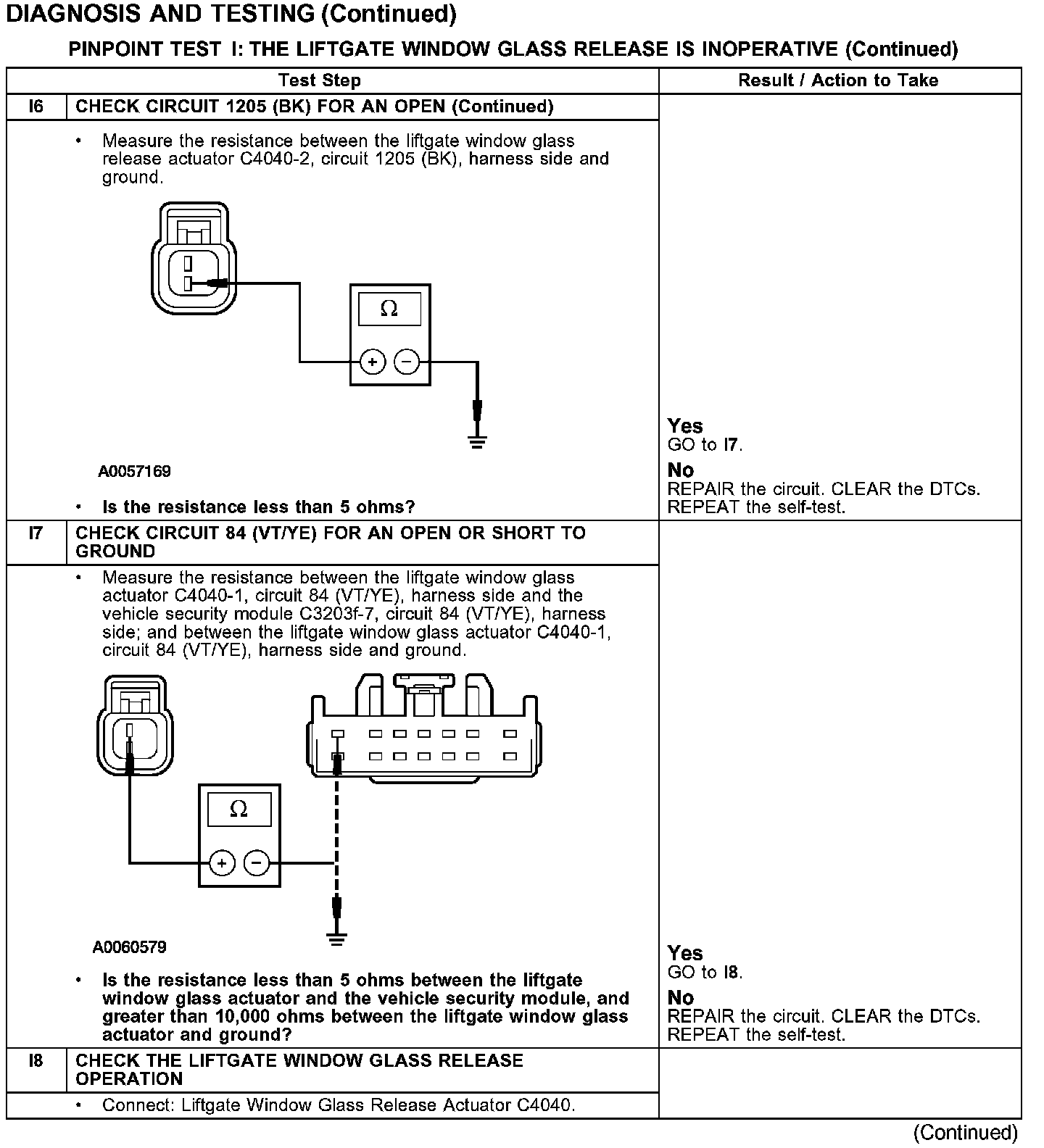

I6-I8:

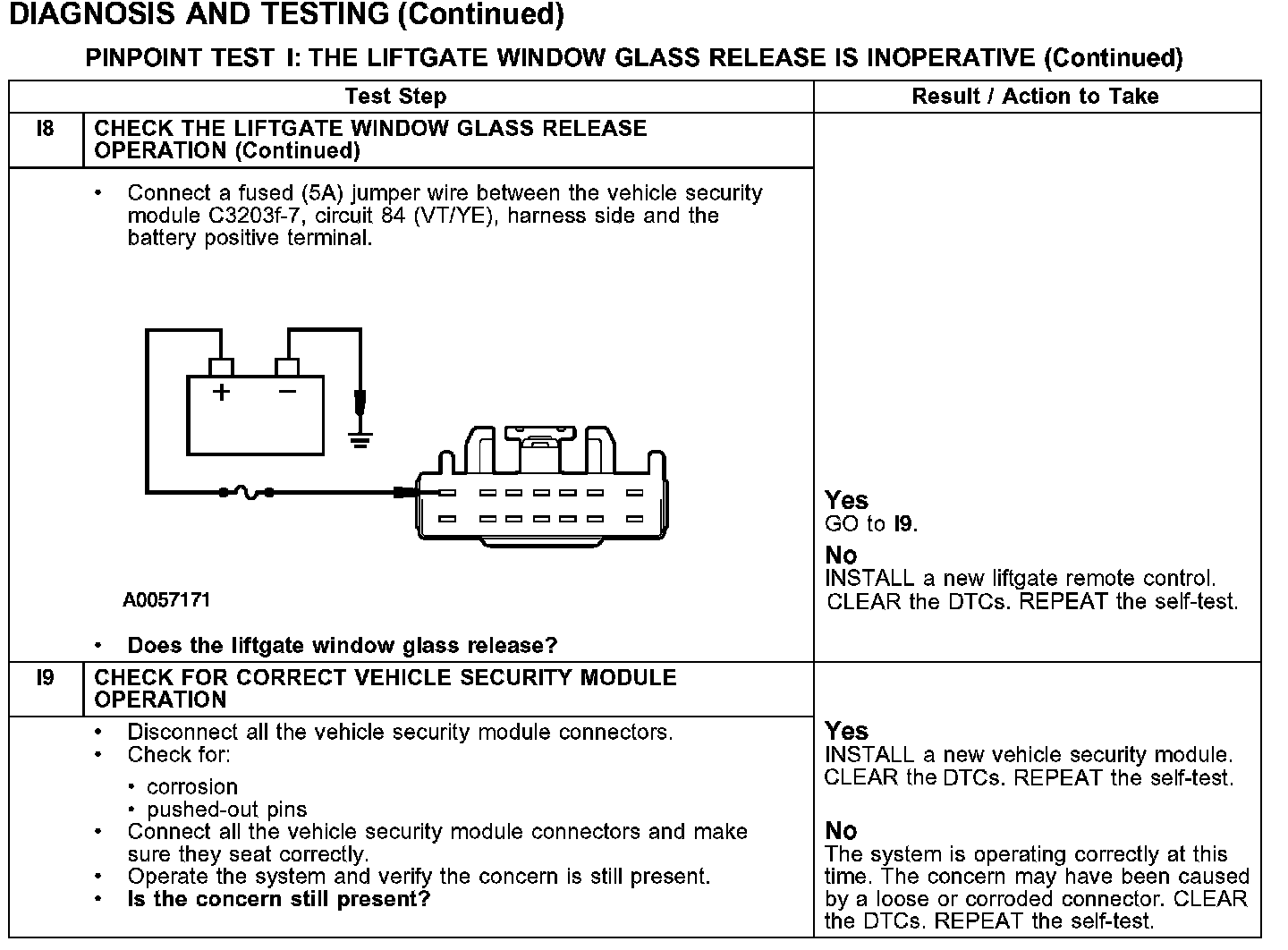

I8-I9:

Normal Operation
When the liftgate window glass release switch is pressed, a ground is provided to the vehicle security module. The vehicle security module energizes the liftgate window glass release actuator.

Possible Causes
- circuit 84 (VT/YE) open, or short to ground
- circuit 1092 (PK/OG) open, or short to ground
- circuit 1205 (BK) open
- circuit 456 (DG/OG) open
- liftgate window glass release switch
- liftgate window glass release actuator
- vehicle security module
