Exterior Mirror Glass

EXTERIOR MIRROR GLASS

Removal

NOTE: RH shown, LH similar.

1. Position the exterior mirror glass in the full UP position.
2. Locate the notch at the bottom of the exterior mirror glass.

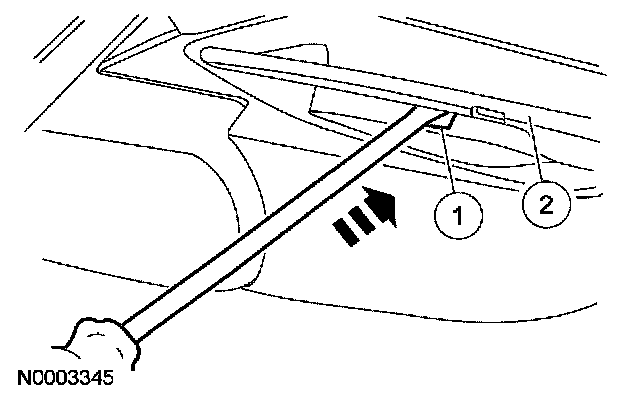

3. Release the exterior mirror glass.
1 Insert a long flat-bladed screwdriver in the notch.
2 Push the screwdriver into the notch until the glass is released.

4. If equipped with heated mirrors, disconnect the electrical connectors from the exterior mirror glass.

Installation
1. If equipped with heated mirrors, connect the electrical connectors to the exterior mirror glass.

2. NOTE: Motor must be tilted inboard to install the glass assembly.

Position the exterior mirror glass on the exterior mirror motor.

3. Place a hand against the back of the exterior mirror housing and a hand flat against the exterior mirror glass. Press the mirror glass in place until it is fully seated.
