Initial Inspection and Diagnostic Overview

INSPECTION AND VERIFICATION

1. Verify the customer concern by operating the system.

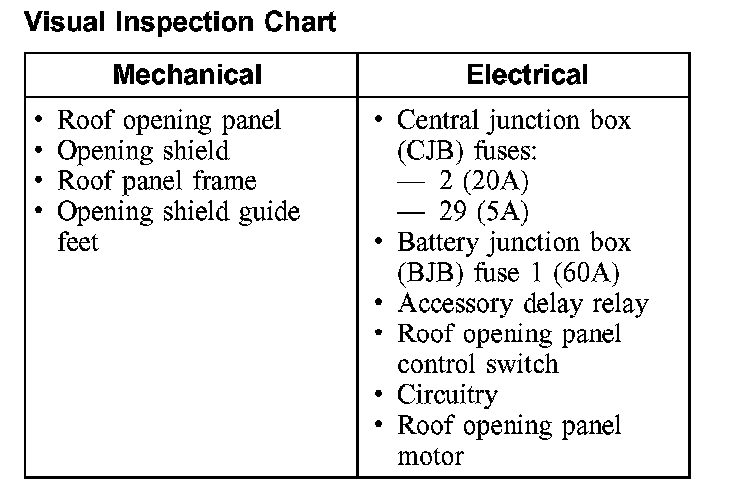

Visual Inspection Chart:

2. Visually inspect for obvious signs of mechanical or electrical damage.
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the concern is not visually evident, determine the symptom. GO to Symptom Chart. Symptom Related Diagnostic Procedures
