Test C: The Roof Opening Panel Rattles

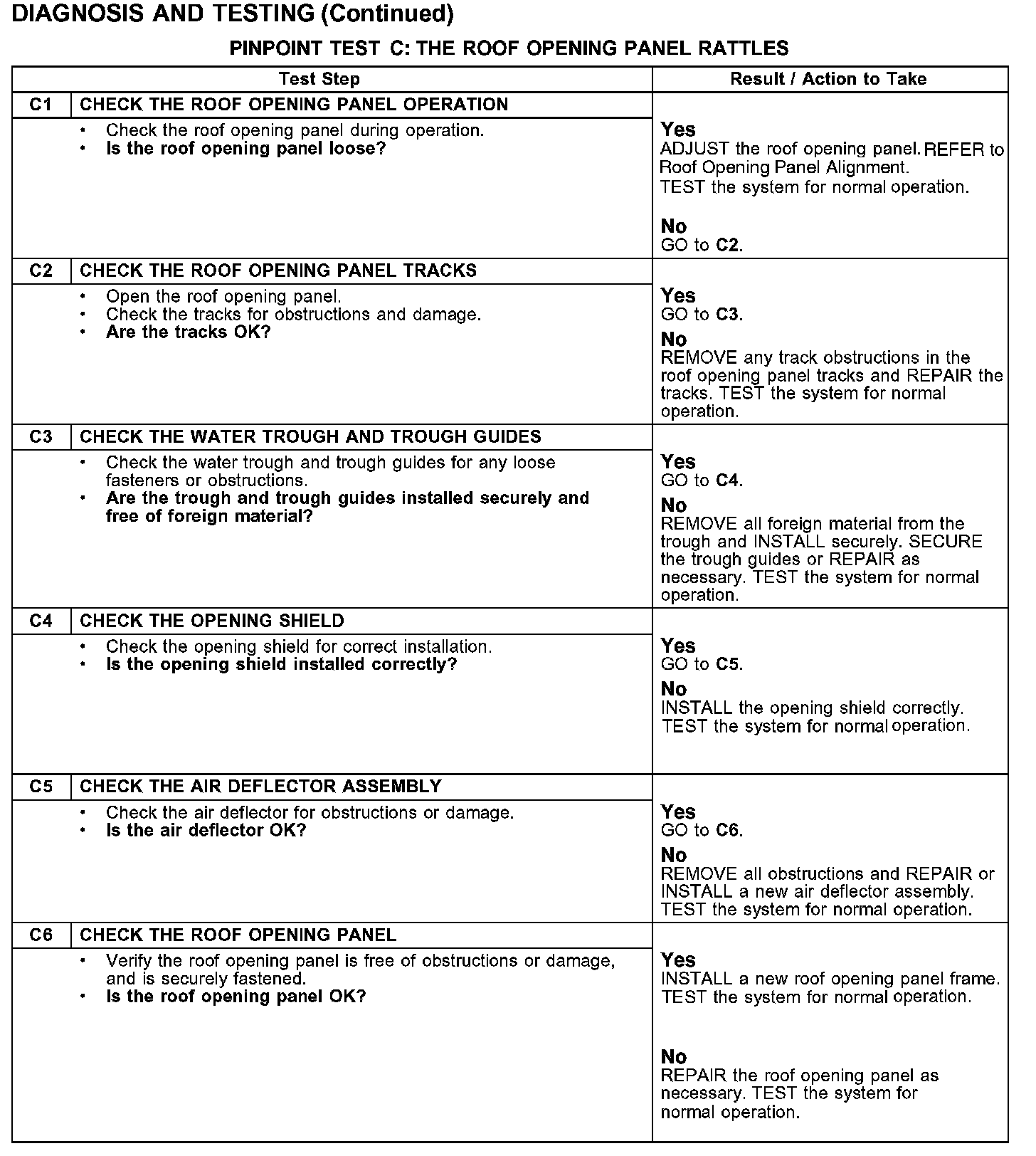

PINPOINT TEST C: THE ROOF OPENING PANEL RATTLES

C1-C6:

Normal Operation
When the roof opening panel glass is completely closed, it is flush with the roof panel. All components should be secured correctly.

Possible Causes
- Rattling noises from the roof opening panel can be caused by any of the following loosely or incorrectly installed components:
- Roof opening panel
- Roof opening panel air deflector assembly
- Roof opening panel water trough
- Roof opening panel lifter assemblies
- Headliner
- Roof opening panel frame
