Sunroof / Moonroof: Adjustments

ROOF OPENING PANEL ALIGNMENT







1. Loosen the roof opening panel.

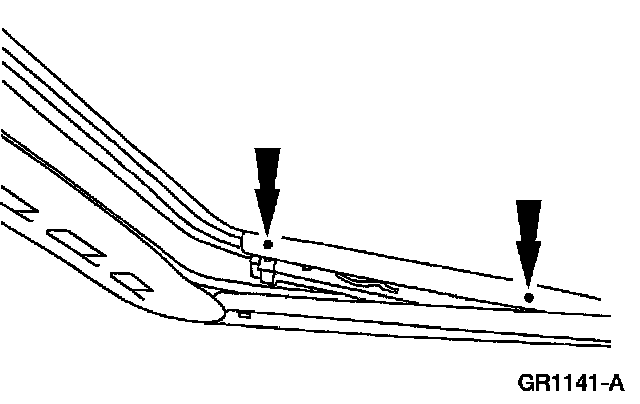

- Loosen the 4 lifter arm bolts.

2. Cycle the roof opening panel in the following sequence: OPEN, CLOSE, VENT, CLOSE.

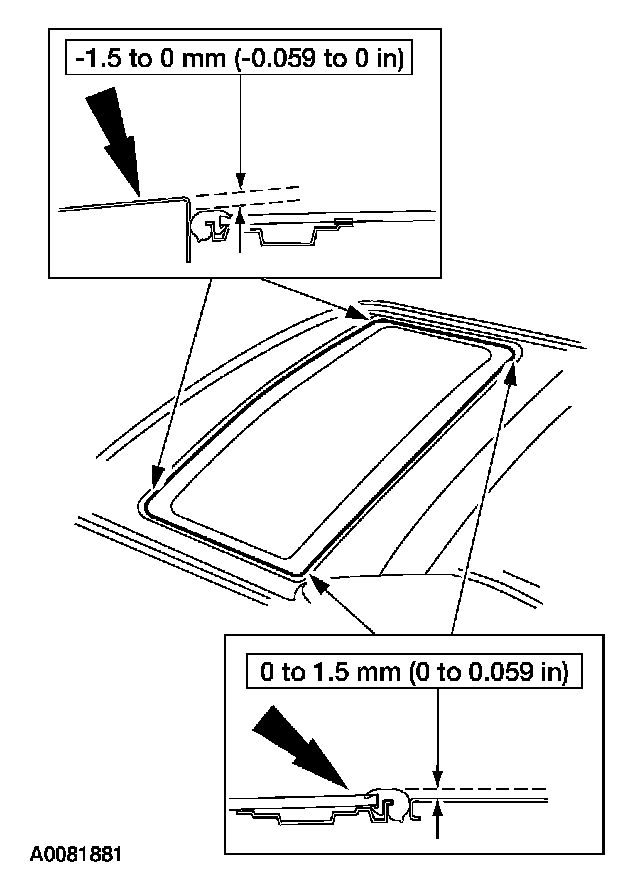

3. Position the roof opening panel to the roof panel as specified.

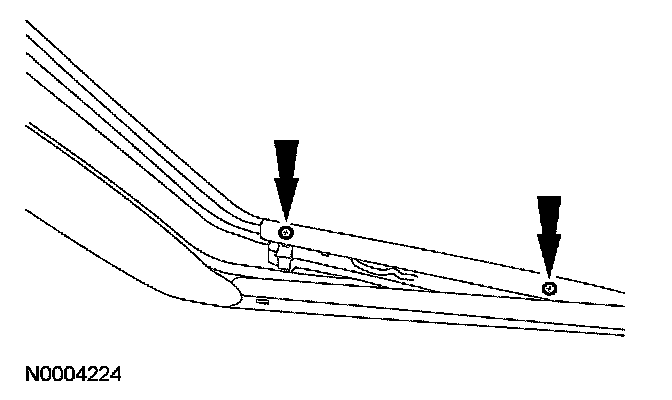

4. Tighten the 4 roof opening panel glass lifter arm bolts.
- Tighten to 4 Nm (35 lb-in).
