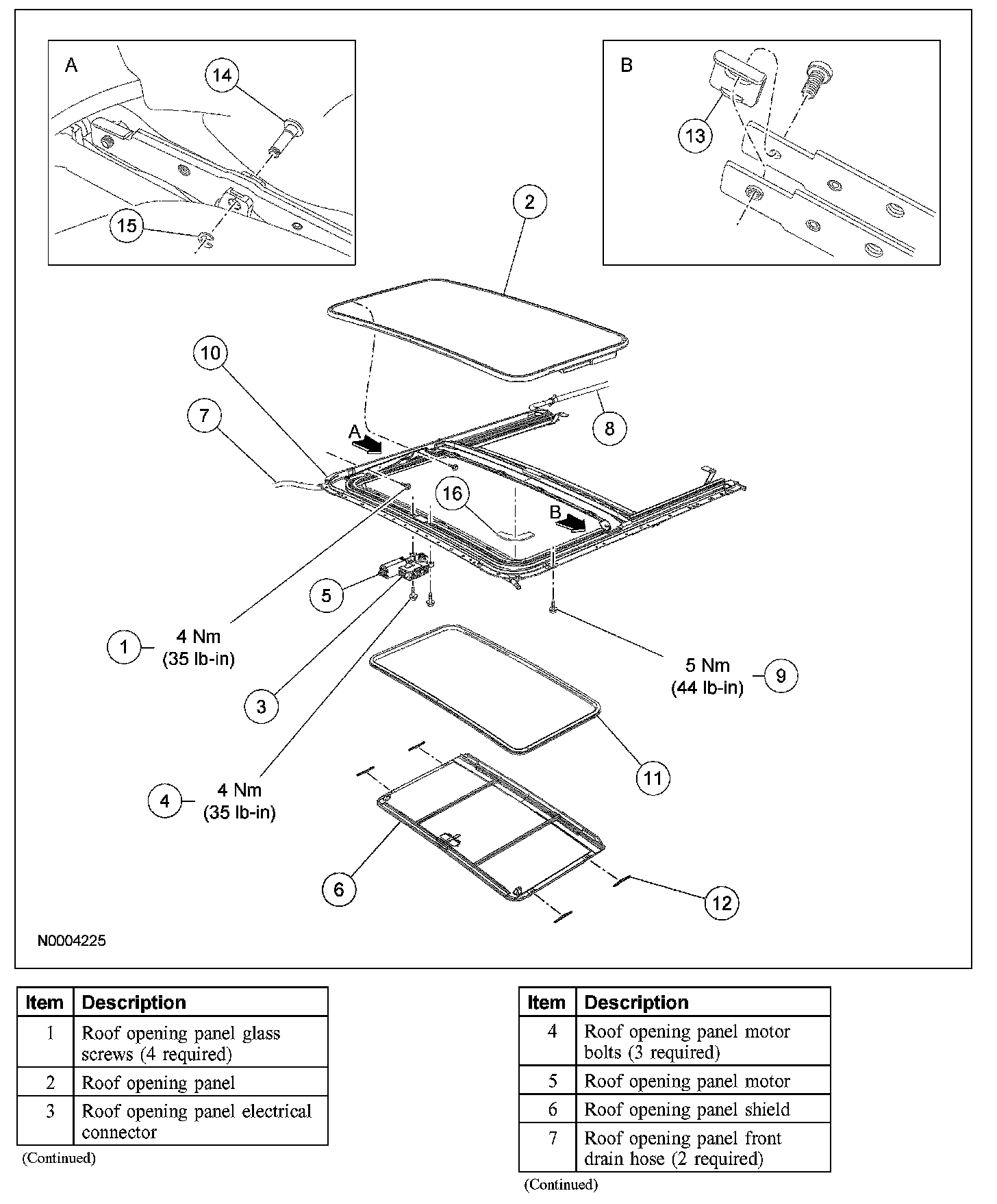

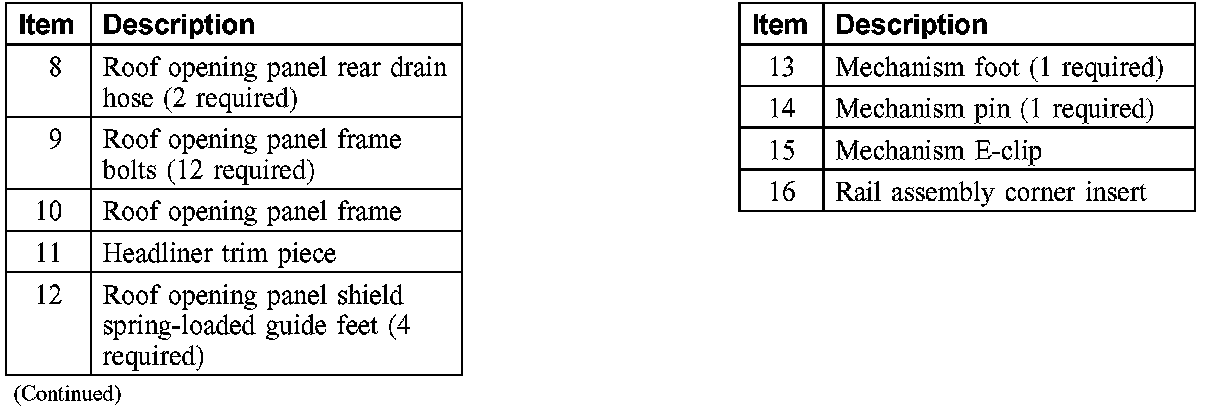

Roof Opening Panel - Exploded View
Roof Opening Panel - Exploded View
ROOF OPENING PANEL - EXPLODED VIEW
Removal and Installation
Part 1:
Part 2:
1.
For additional information, refer to the procedures.
