Roof Opening Panel

ROOF OPENING PANEL

Removal and Installation

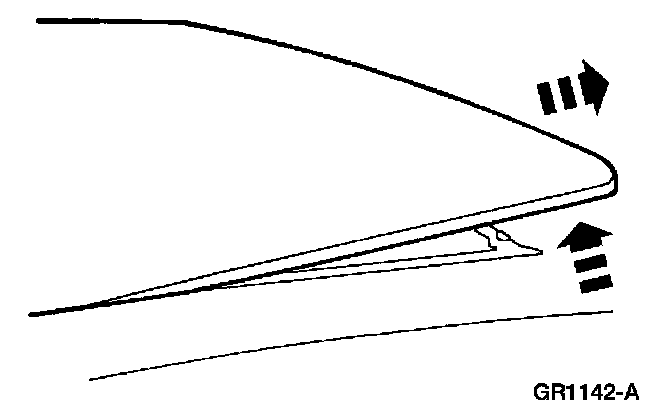

1. Open the roof opening panel to the VENT position.

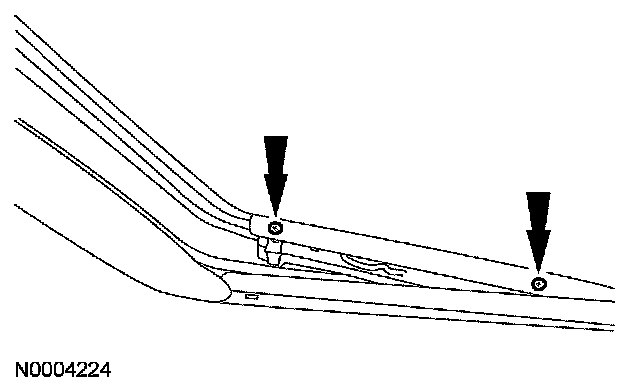

2. Remove the 4 roof opening panel glass screws.
- To install, tighten to 4 Nm (35 lb-in).

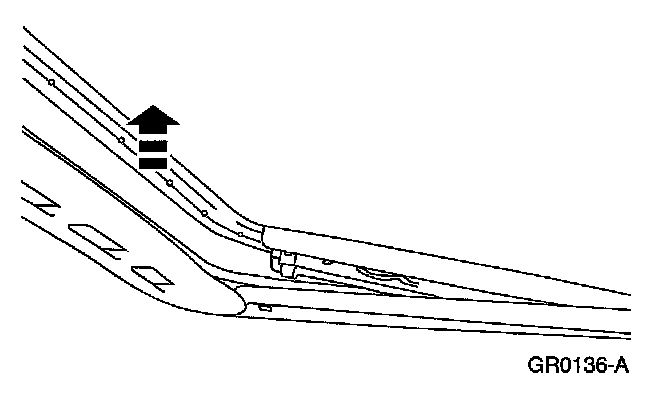

3. From outside the vehicle, remove the roof opening panel.
4. To install, reverse the removal procedure.
- Check for correct alignment of the panel.
