Seat - Exploded View, Front

SEAT - EXPLODED VIEW, FRONT

Removal and Installation

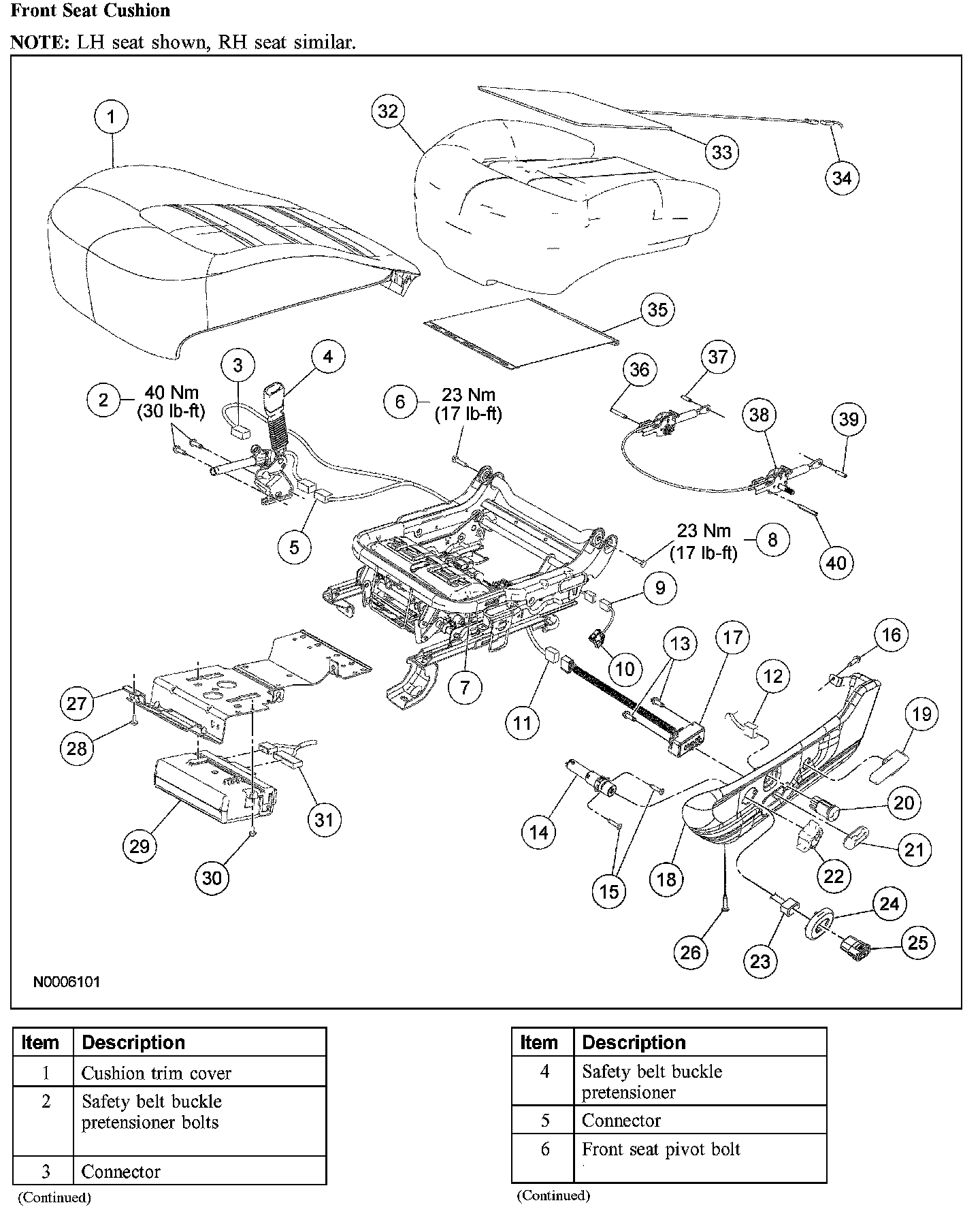

Front Seat Cushion (Part 1):

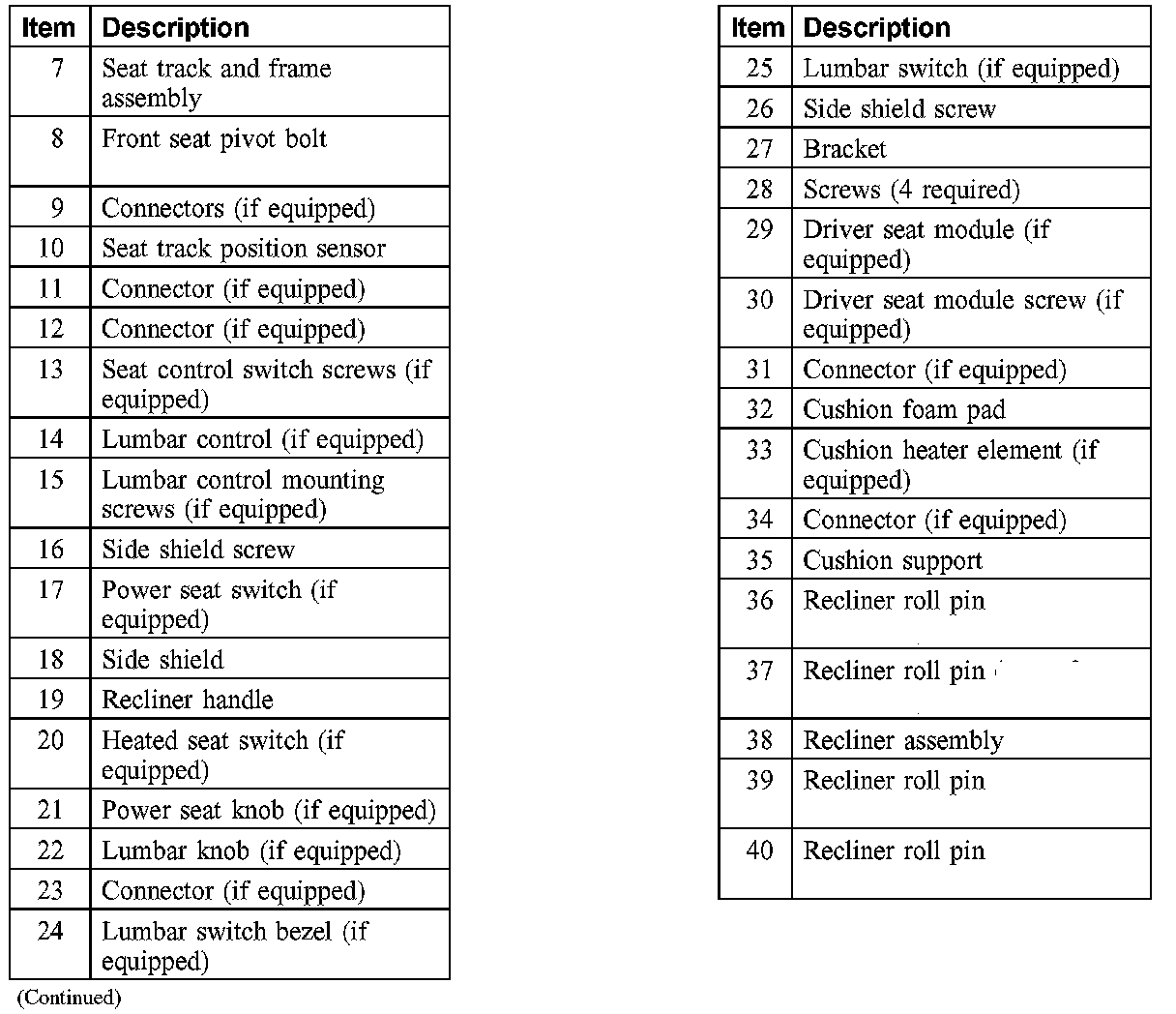

Front Seat Cushion (Part 2):

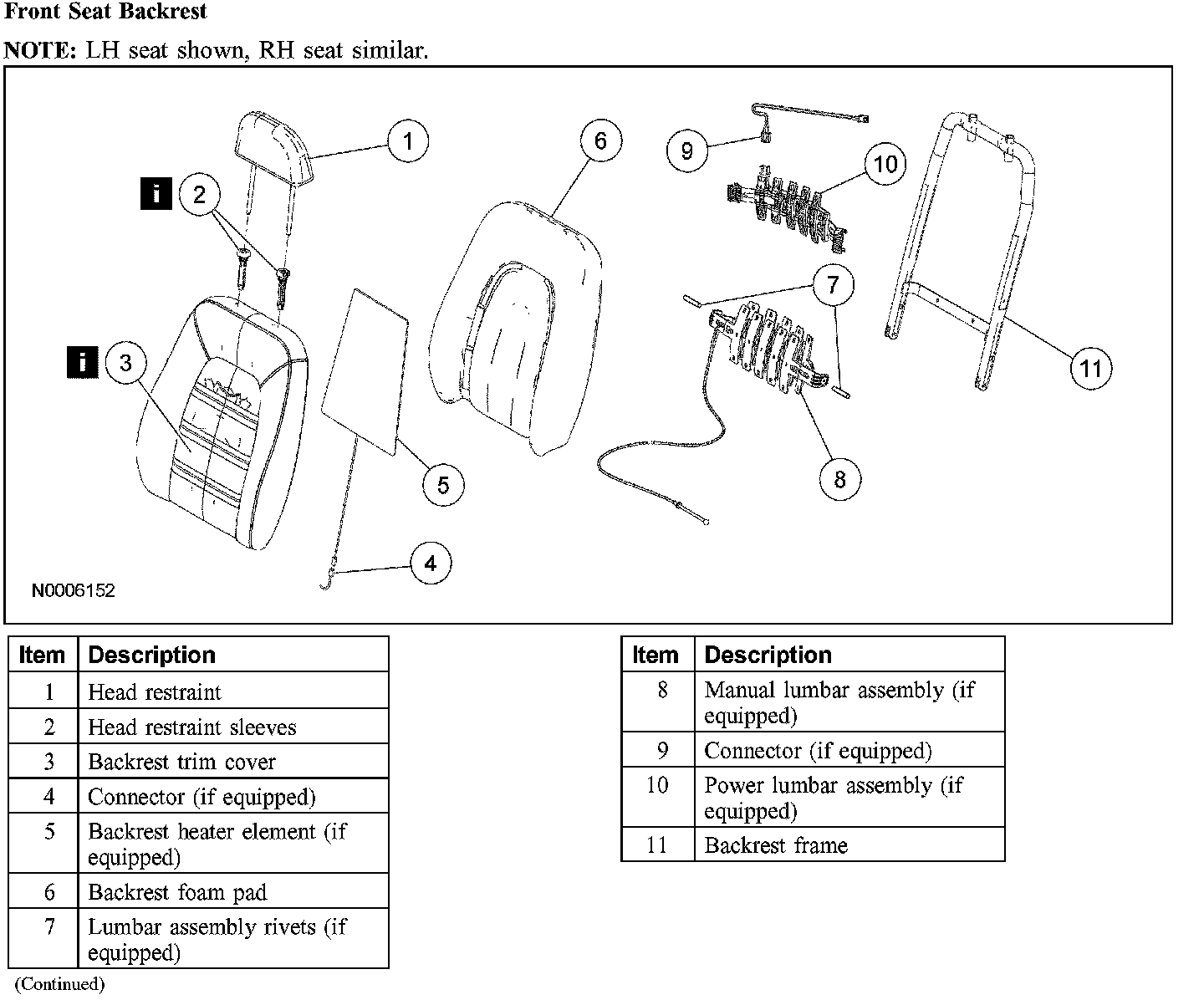

Front Seat Backrest:






1. For additional information, refer to the procedures.
