Seat - Exploded View, 20 Percent, Second Row

SEAT - EXPLODED VIEW, 20 PERCENT, SECOND ROW

Removal and Installation

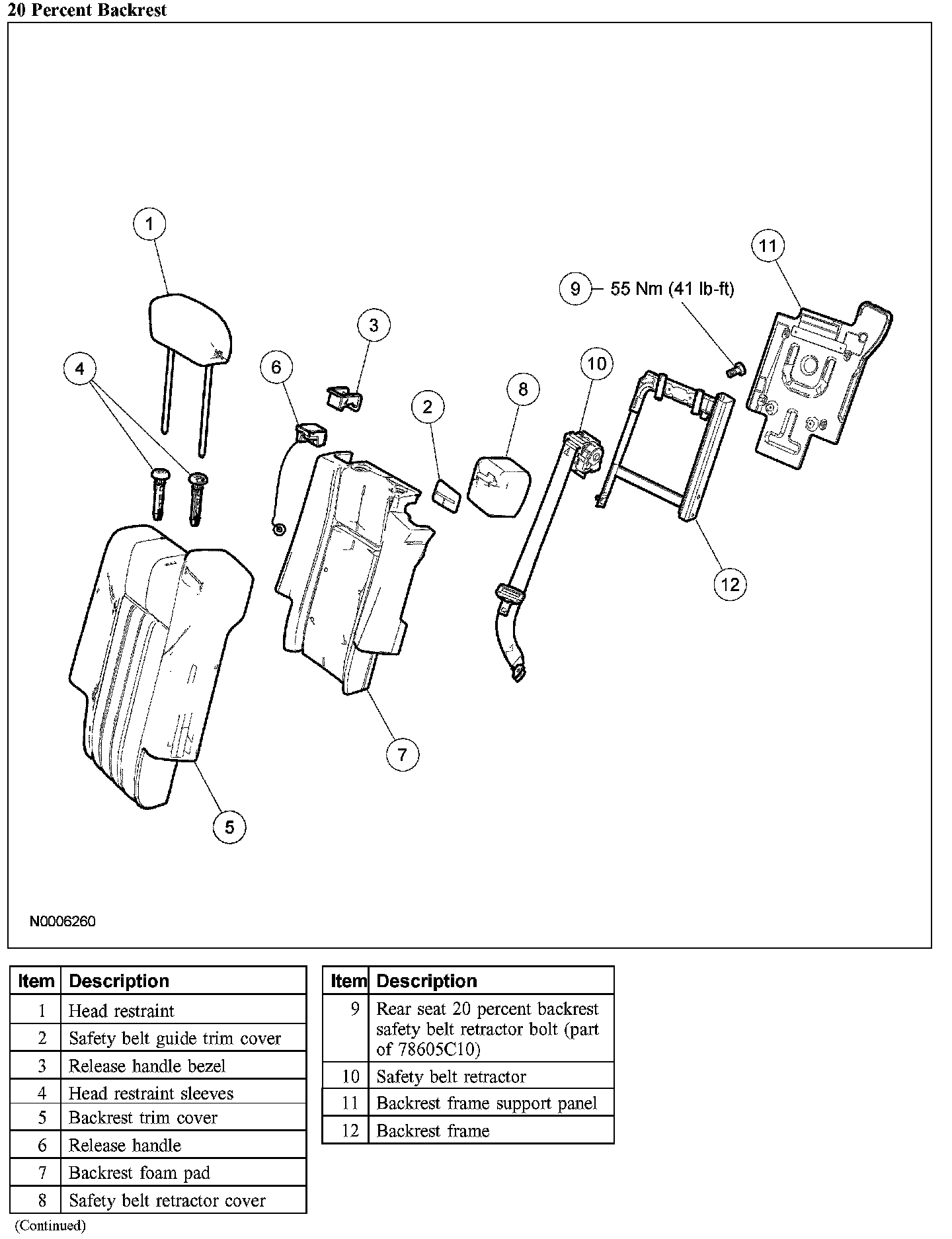

20 Percent Backrest:

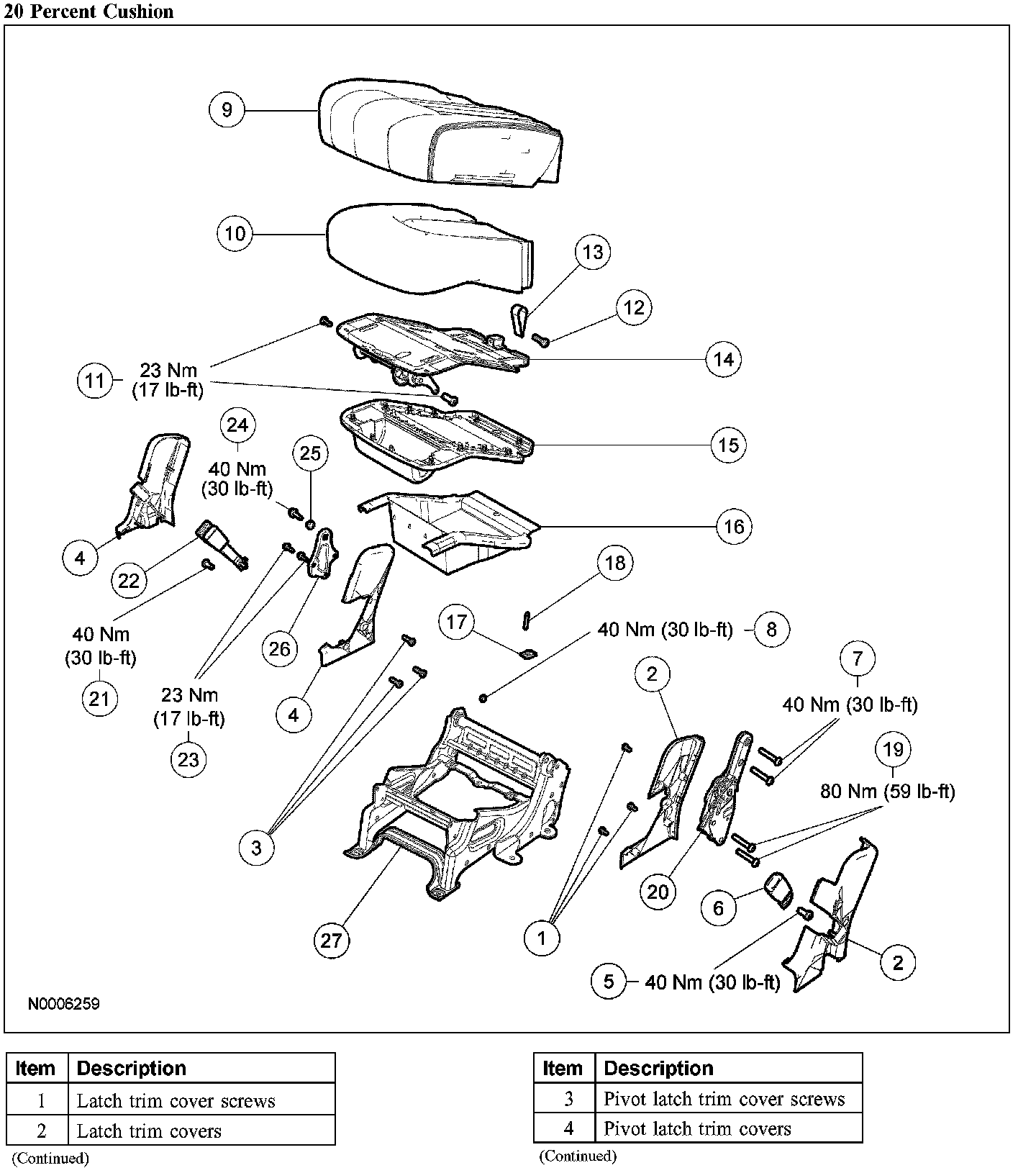

20 Percent Cushion (Part 1):

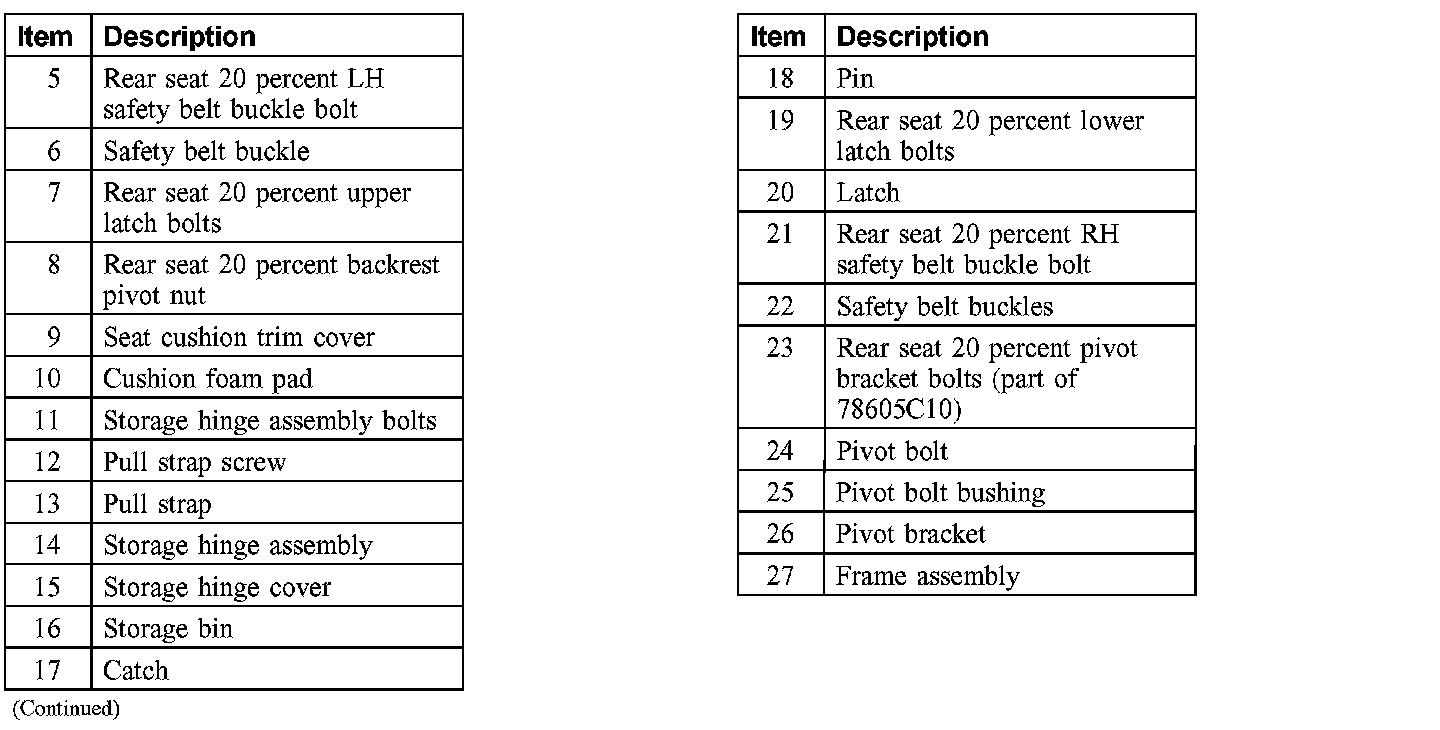

20 Percent Cushion (Part 2):

1. For additional information, refer to the procedures.
