Seat - Exploded View, 40 Percent E-Z Entry and Quad Bucket

SEAT - EXPLODED VIEW, SECOND ROW, 40 PERCENT E-Z ENTRY AND QUAD BUCKET

Removal and Installation

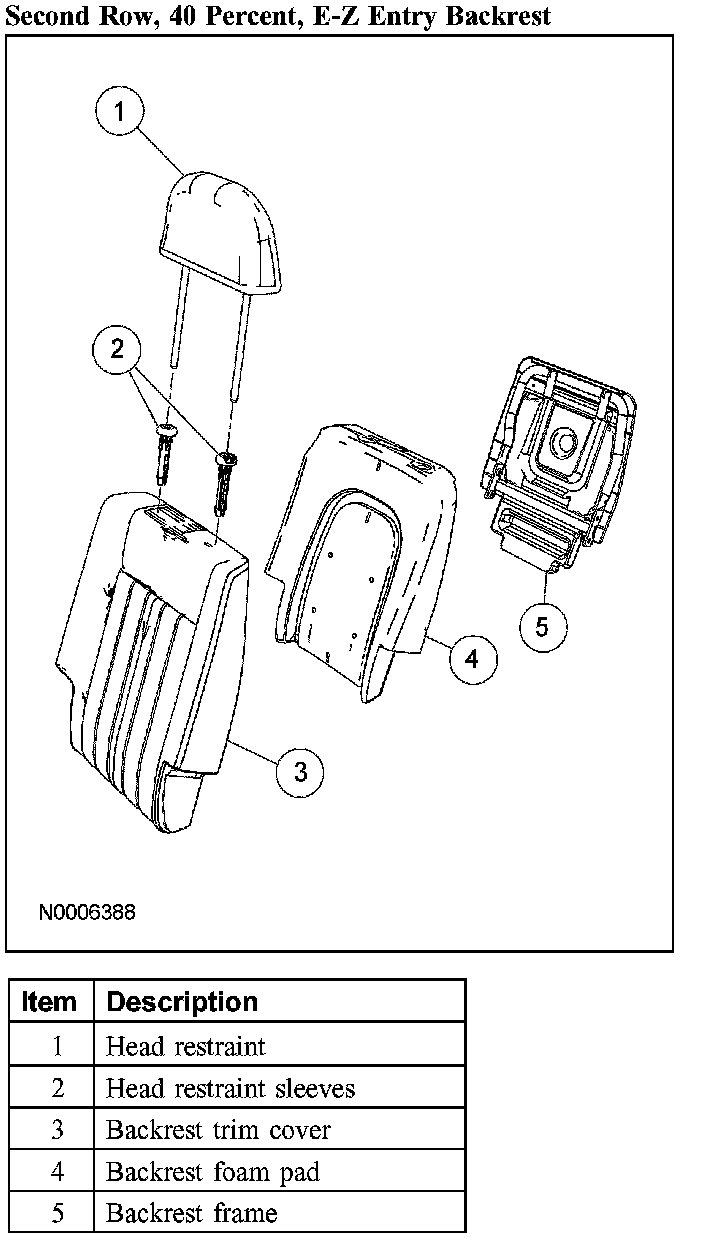

Second Row, 40 Percent, E-Z Entry Backrest:

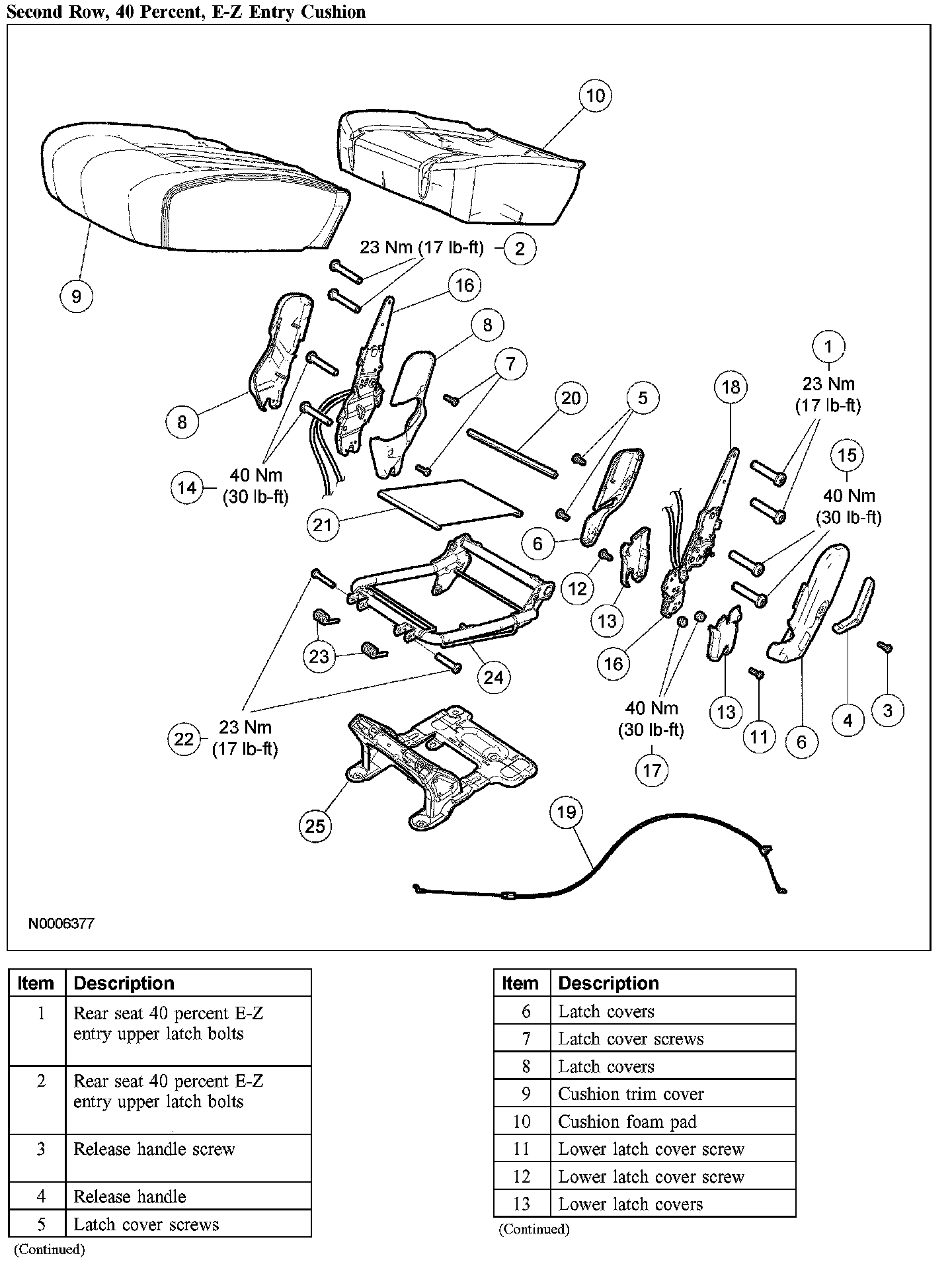

Second Row, 40 Percent, E-Z Entry Cushion (Part 1):

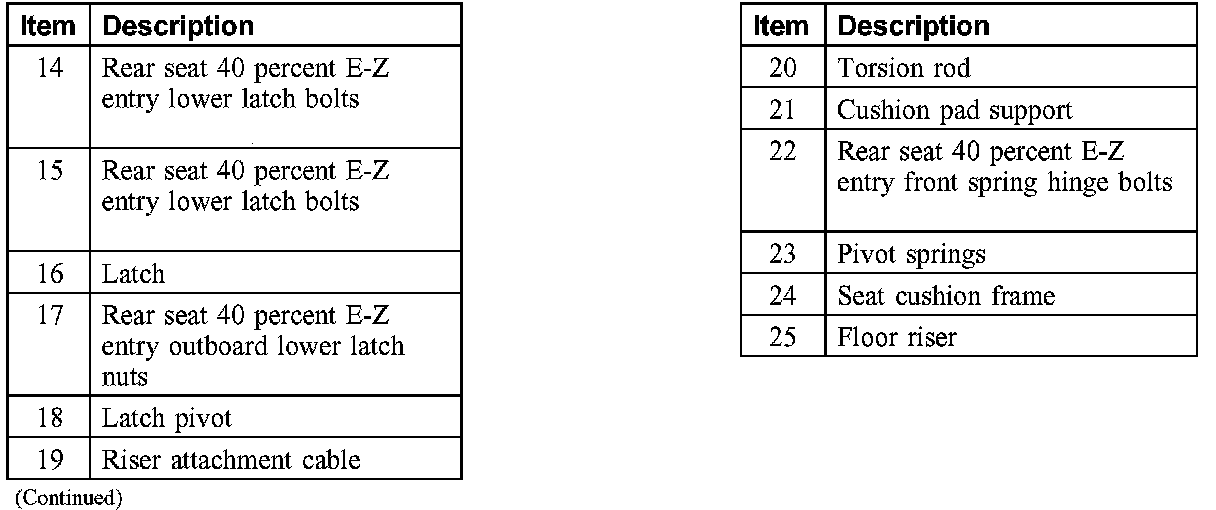

Second Row, 40 Percent, E-Z Entry Cushion (Part 2):

1. For additional information, refer to the procedures.
