Seat - Exploded View, 40 Percent of 60/40 Bench, Second Row

SEAT - EXPLODED VIEW, 40 PERCENT OF 60/40 BENCH, SECOND ROW

Removal and Installation

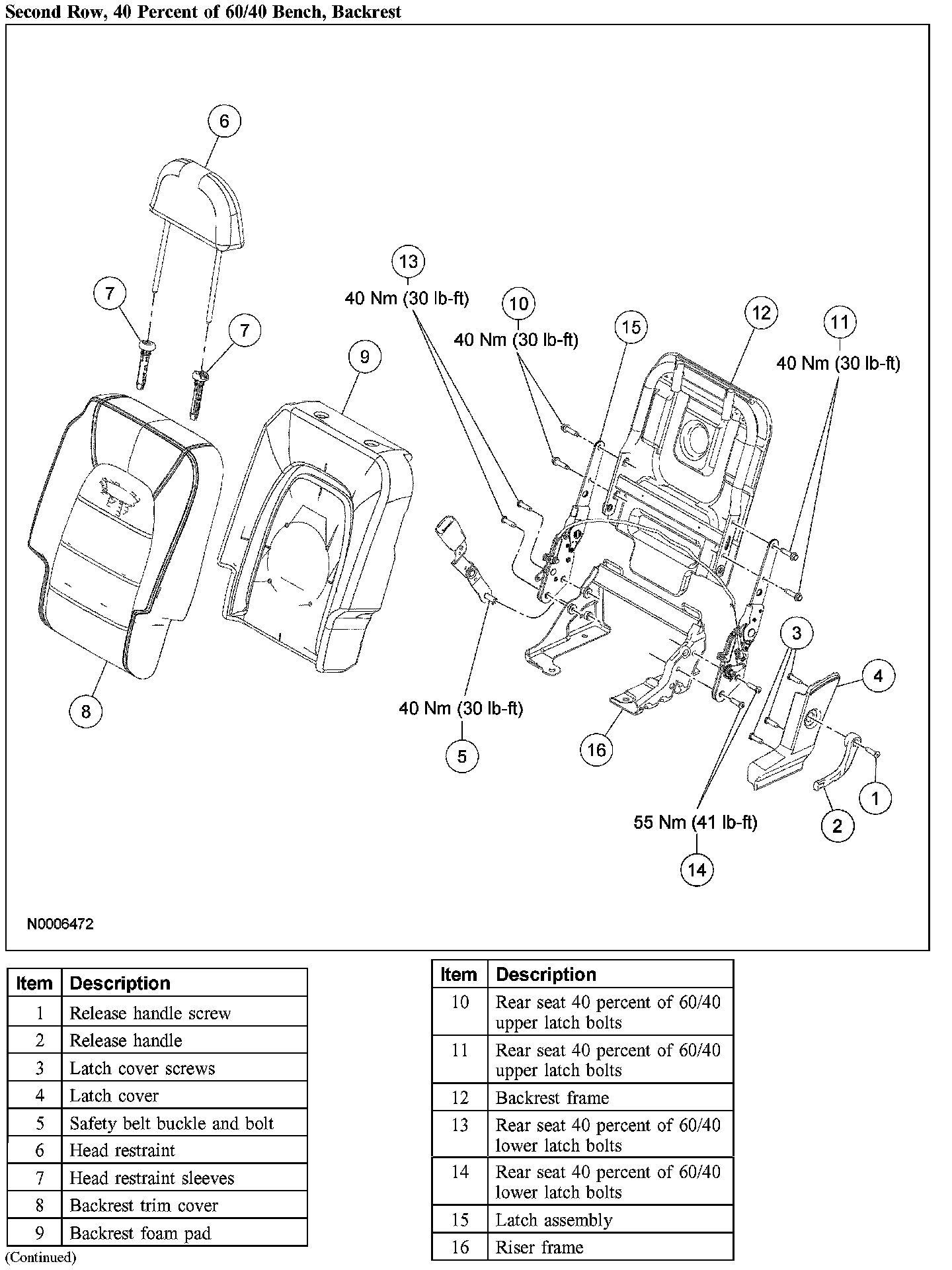

Second Row, 40 Percent Of 60/40 Bench, Backrest:

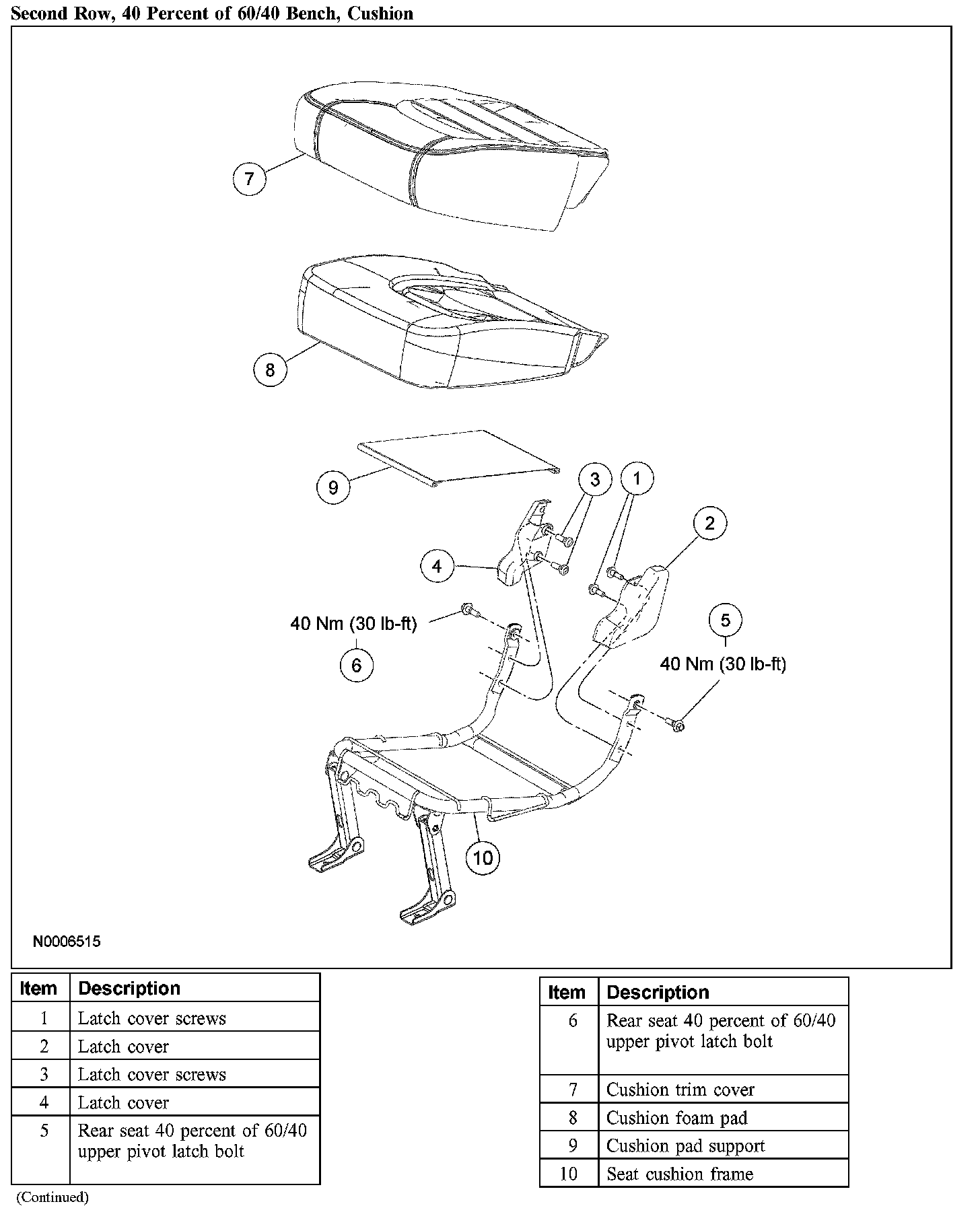

Second Row 40 Percent Of 40/60 Bench, Cushion:

1. For additional information, refer to the procedures.
