Rear Seat - Quad Buckets, Second Row

REAR SEAT - QUAD BUCKETS, SECOND ROW







Removal and Installation

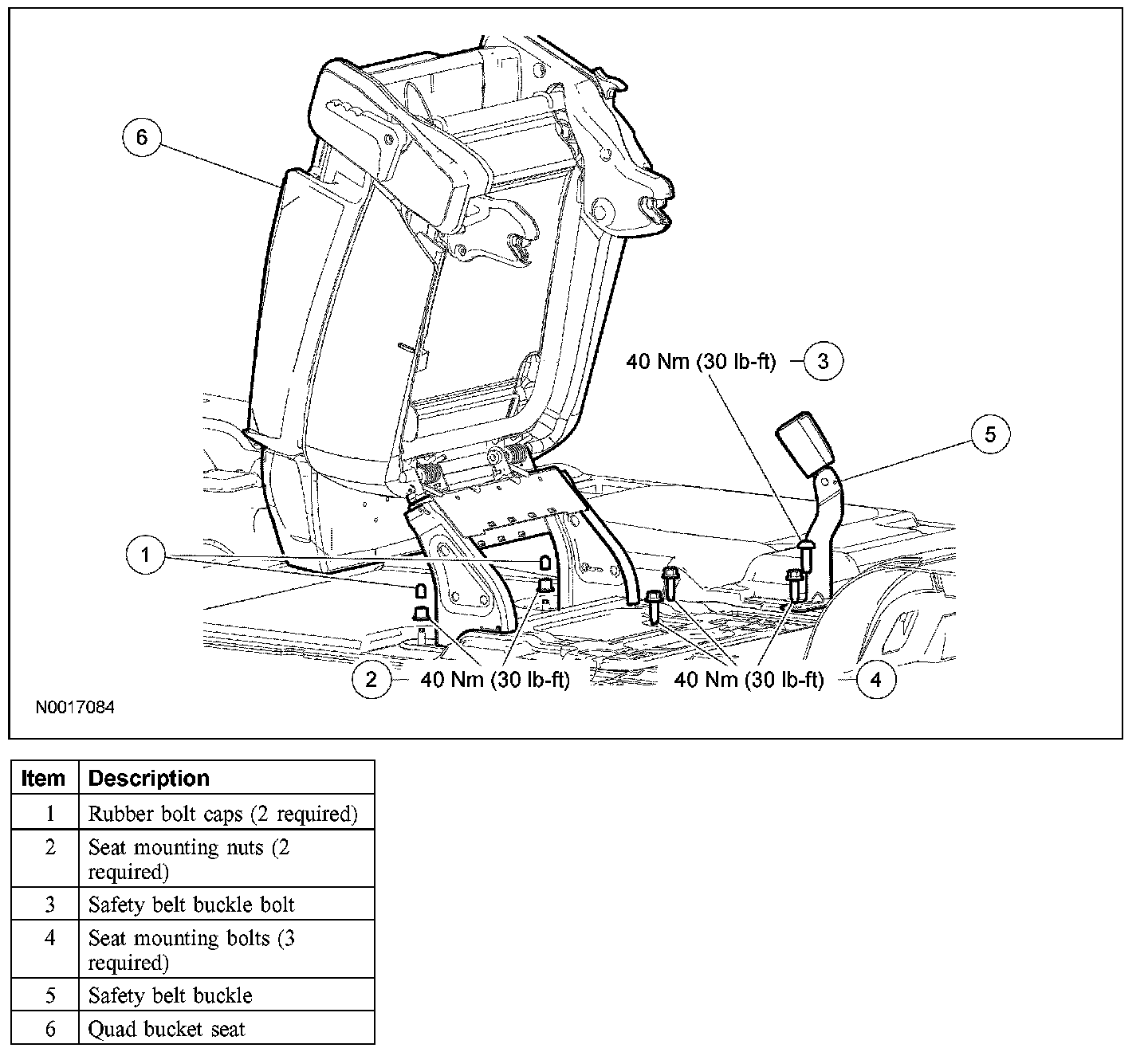

NOTE: LH seat shown, RH seat similar.

1. Remove the 2 rubber bolt caps.
2. Remove the 2 seat mounting nuts.
- To install, tighten to 40 Nm (30 lb-ft).

3. Fold the affected quad bucket seat up to the E-Z entry position.
4. Remove the safety belt buckle bolt.
- To install, tighten to 40 Nm (30 lb-ft).

5. Remove the 3 seat mounting bolts.
- To install, tighten to 40 Nm (30 lb-ft).

6. Remove the safety belt buckle.
7. Remove the quad bucket seat.
8. To install, reverse the removal procedure.
9. Check the active restraint system for correct operation.
