Instrument Panel - Exploded View
Instrument Panel - Exploded View

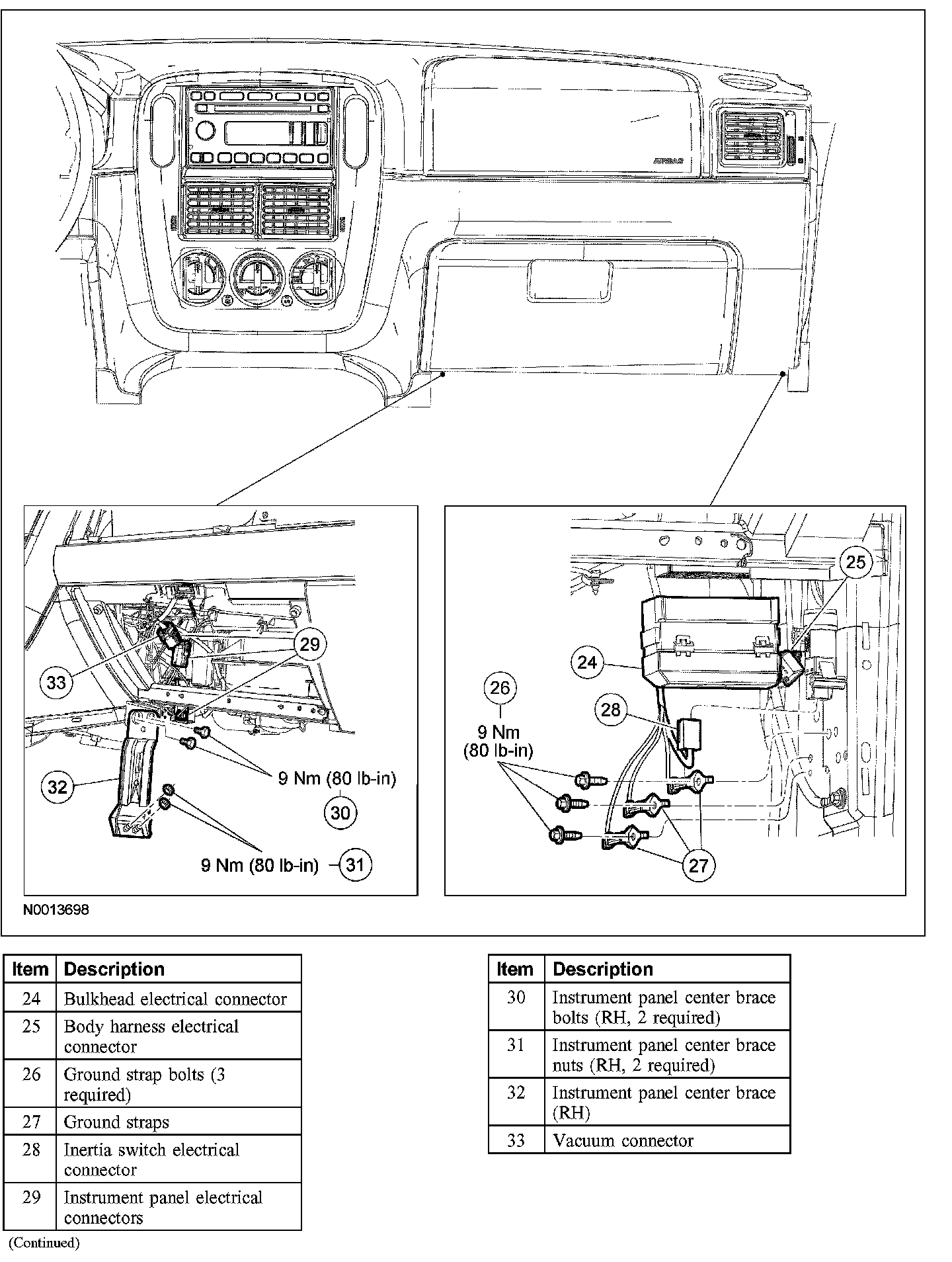

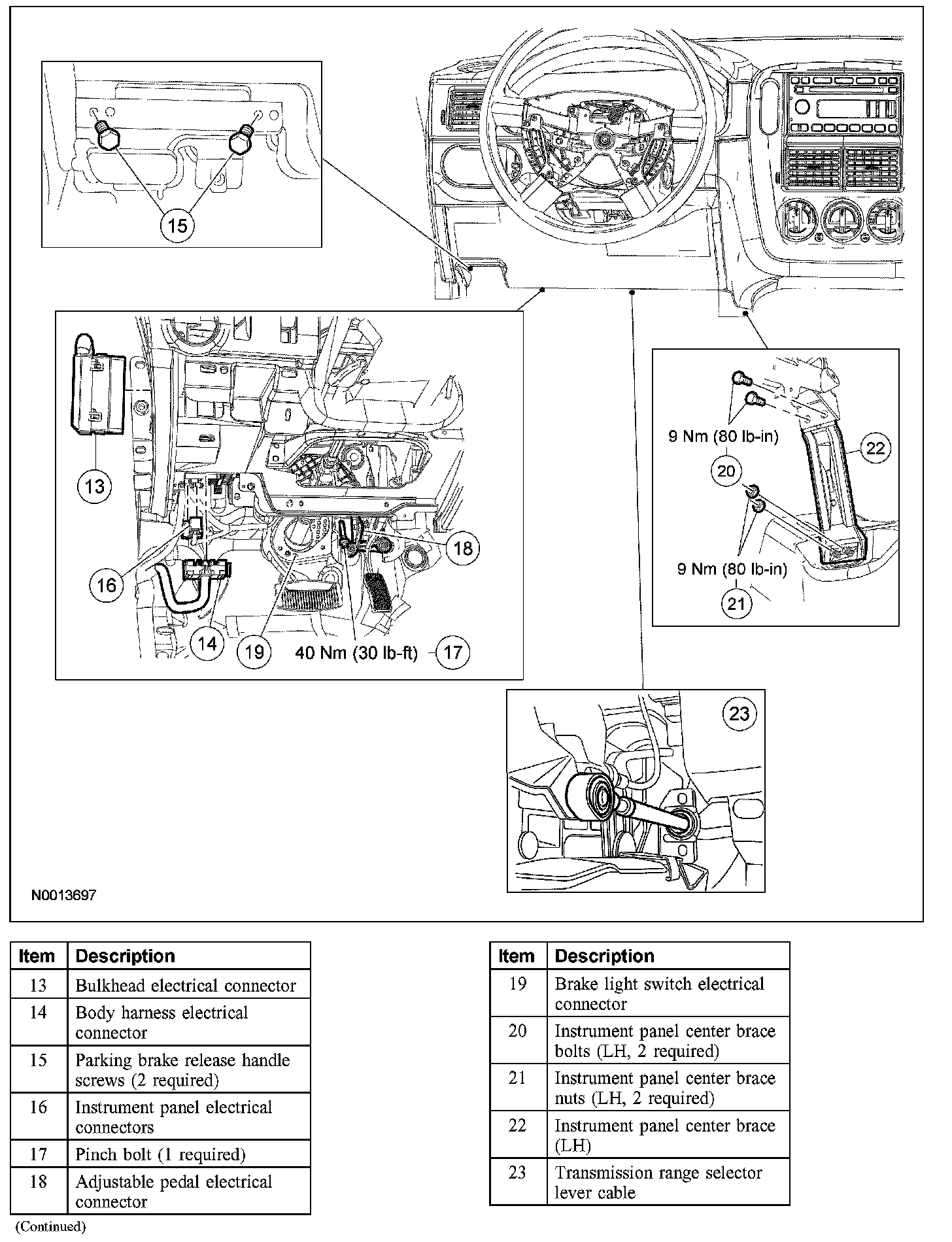

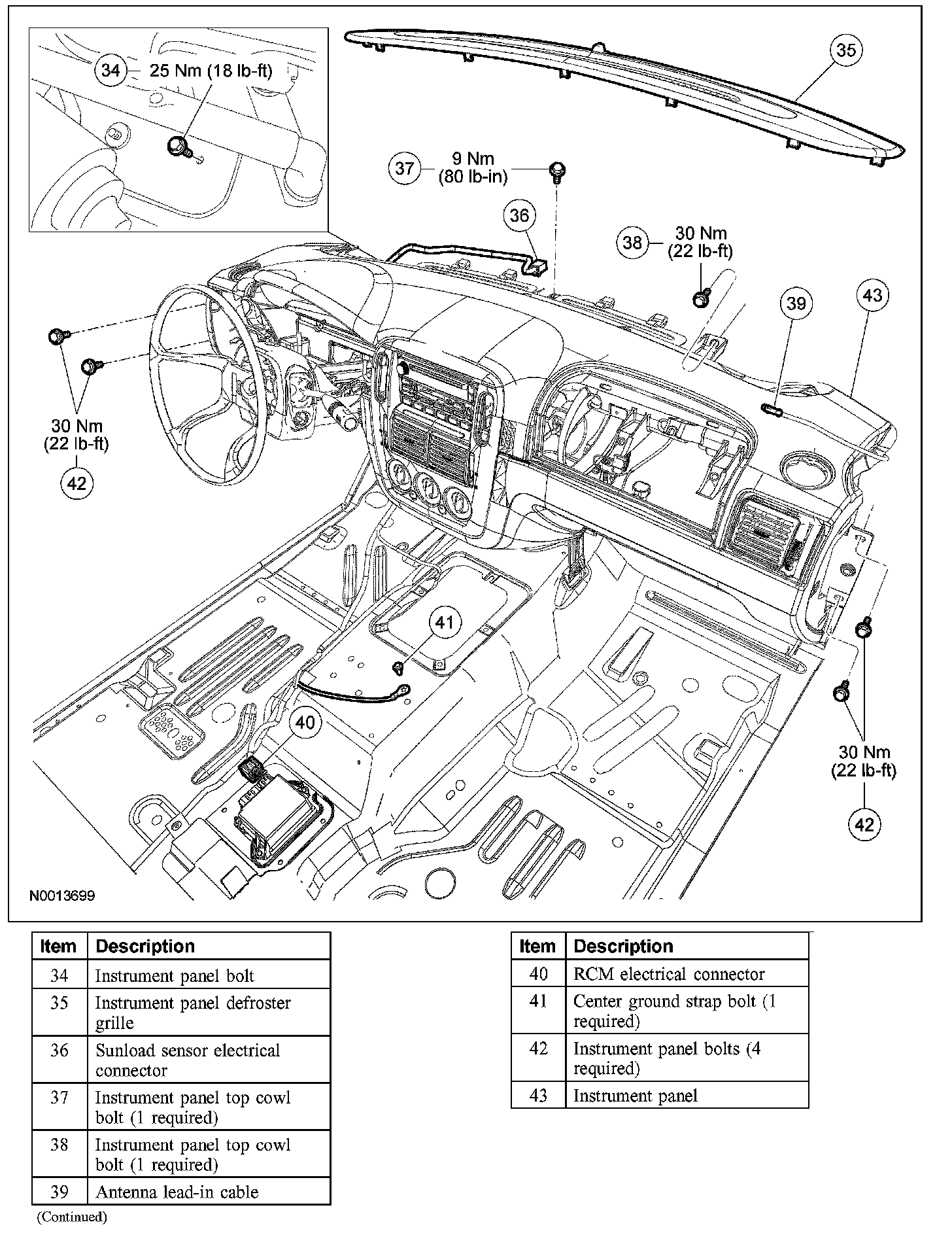

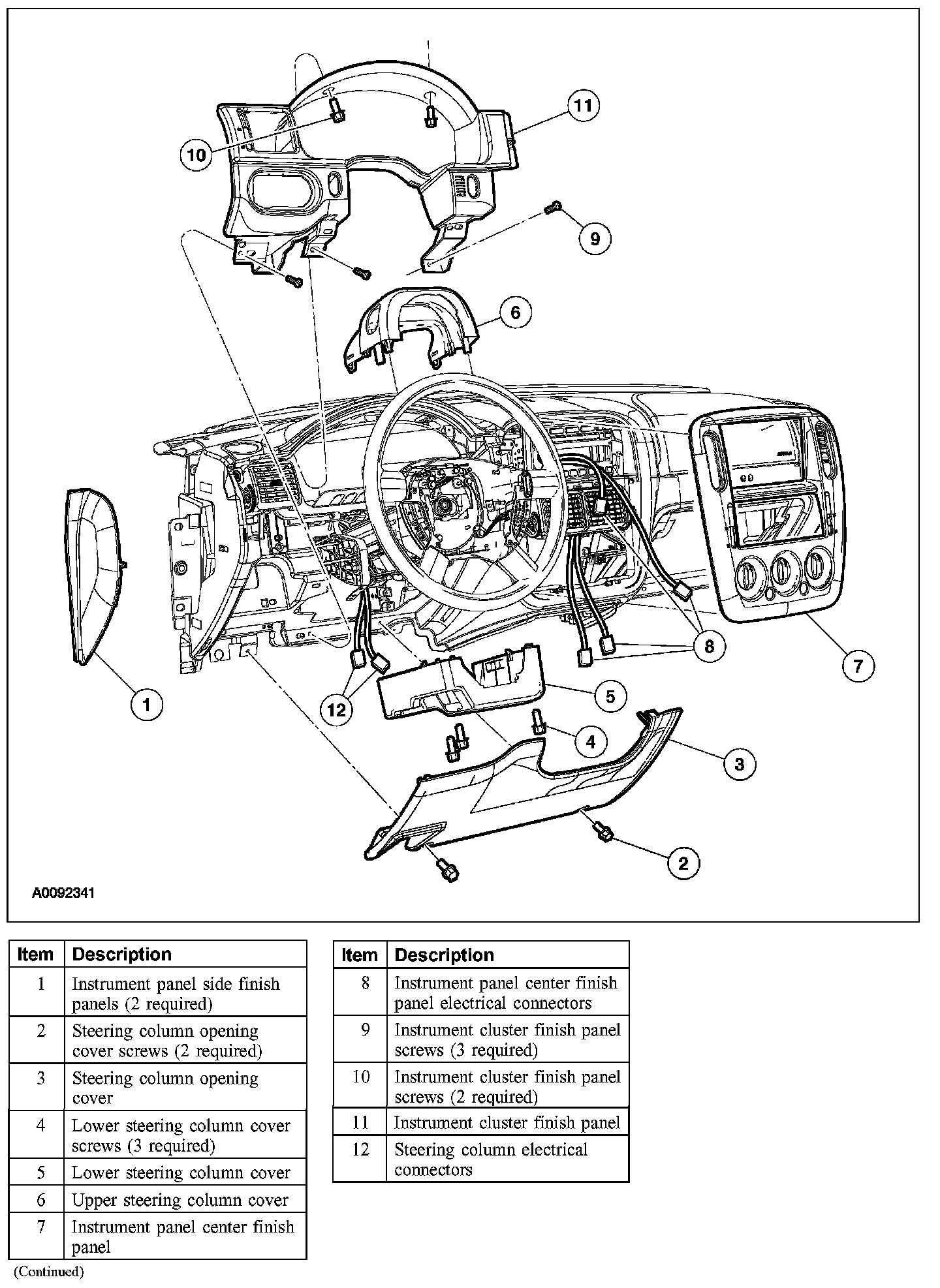

INSTRUMENT PANEL - EXPLODED VIEW
Removal and Installation
1.
For additional information, refer to the procedures.
