Conventional

INSTRUMENT CLUSTER







Removal and Installation

NOTE: Prior to removal of the instrument cluster, it is necessary to upload the instrument cluster configuration information to the diagnostic tool.

1. Depower the supplemental restraint system (SRS).
2. Lower the tilt steering column to the lowest position.
3. Remove the instrument cluster finish panel.

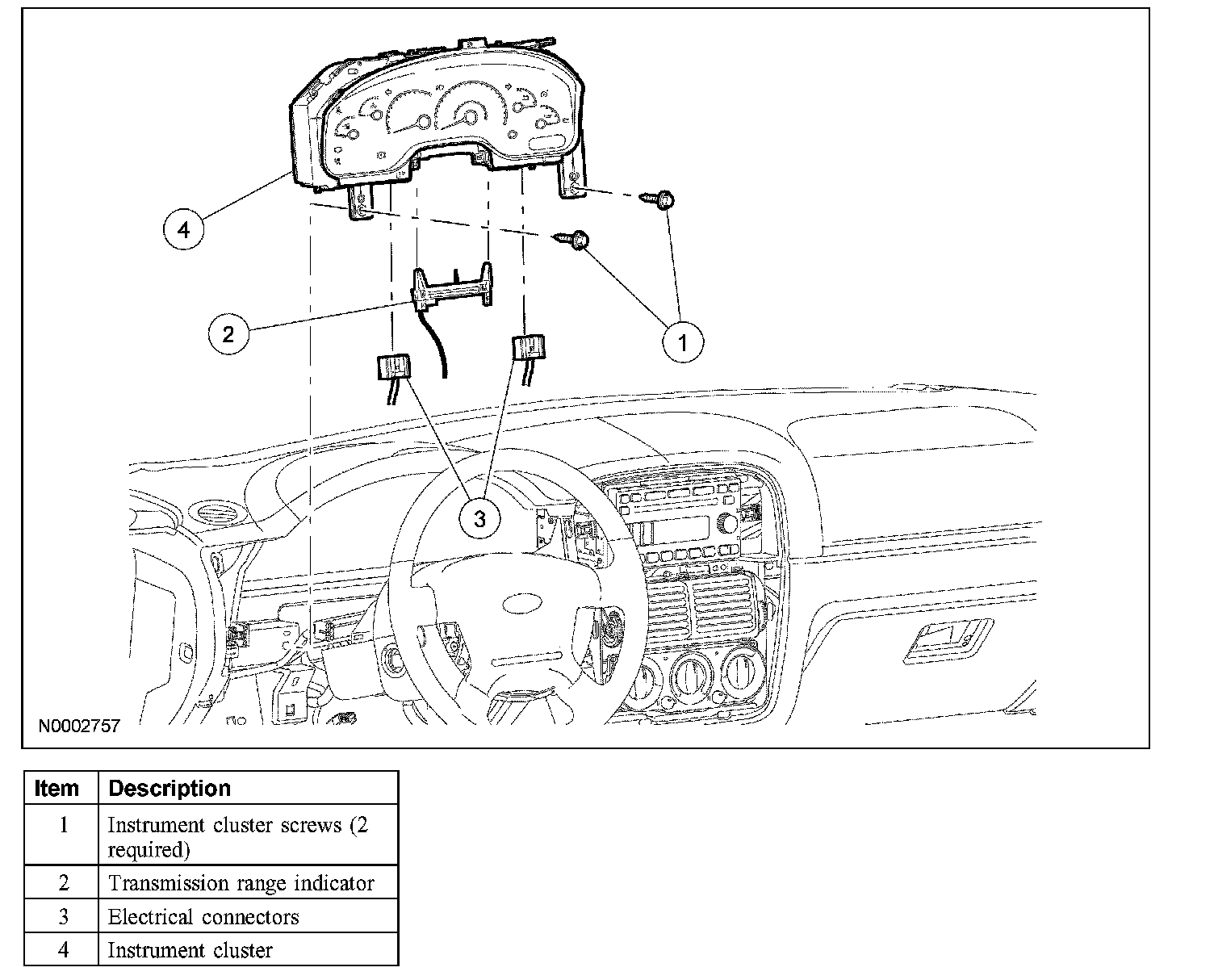

4. Remove the 2 screws and the instrument cluster.
- Disconnect the transmission range indicator and the electrical connectors.

5. To install, reverse the removal procedure.
- Upload the instrument cluster configuration information from the diagnostic tool into the new instrument cluster.
