Instrument Cluster

CLUSTER LENS

Removal and Installation
1. Remove the instrument cluster.

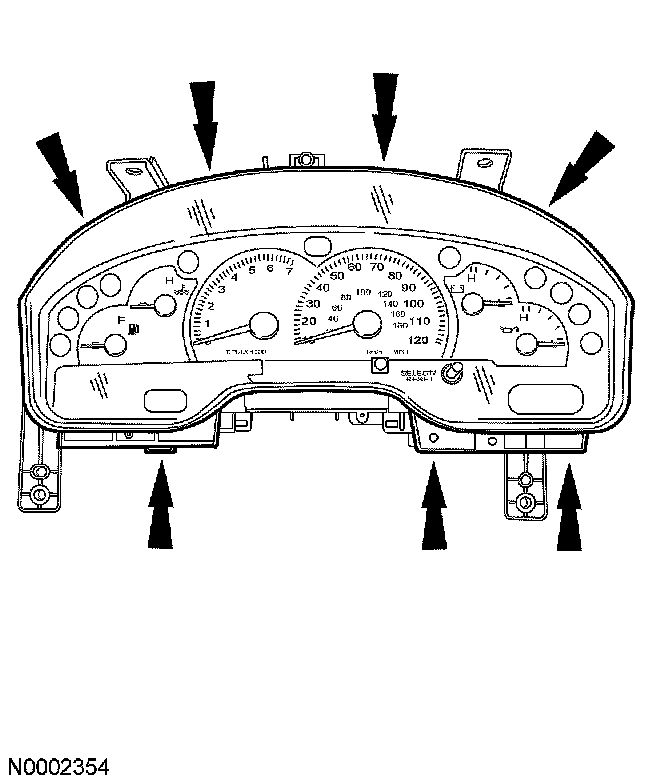

2. Unclip and remove the instrument cluster lens.
3. To install, reverse the removal procedure.
