Diagnosis By Symptom - Instrument Cluster

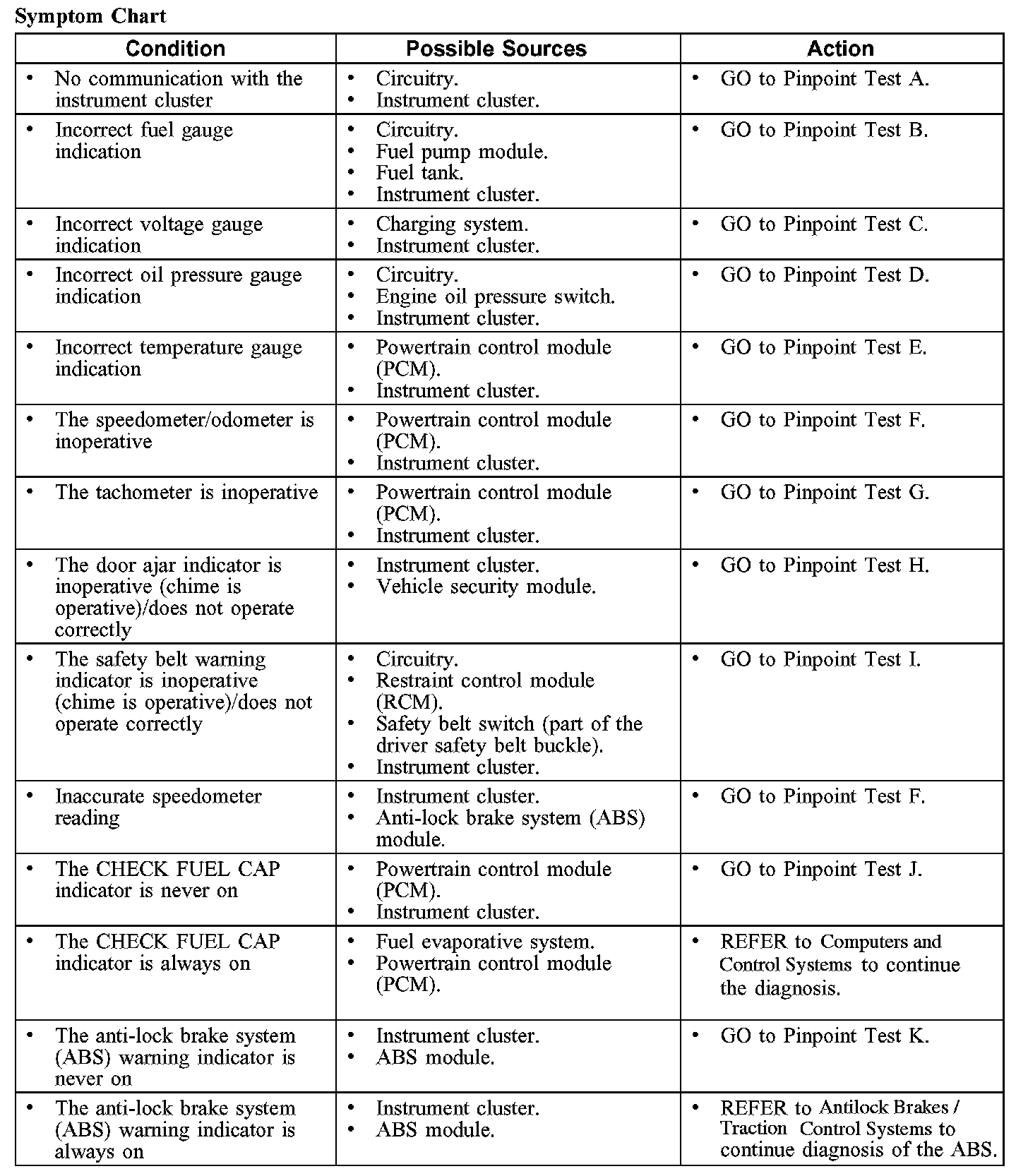

Symptom Chart (Part 1):

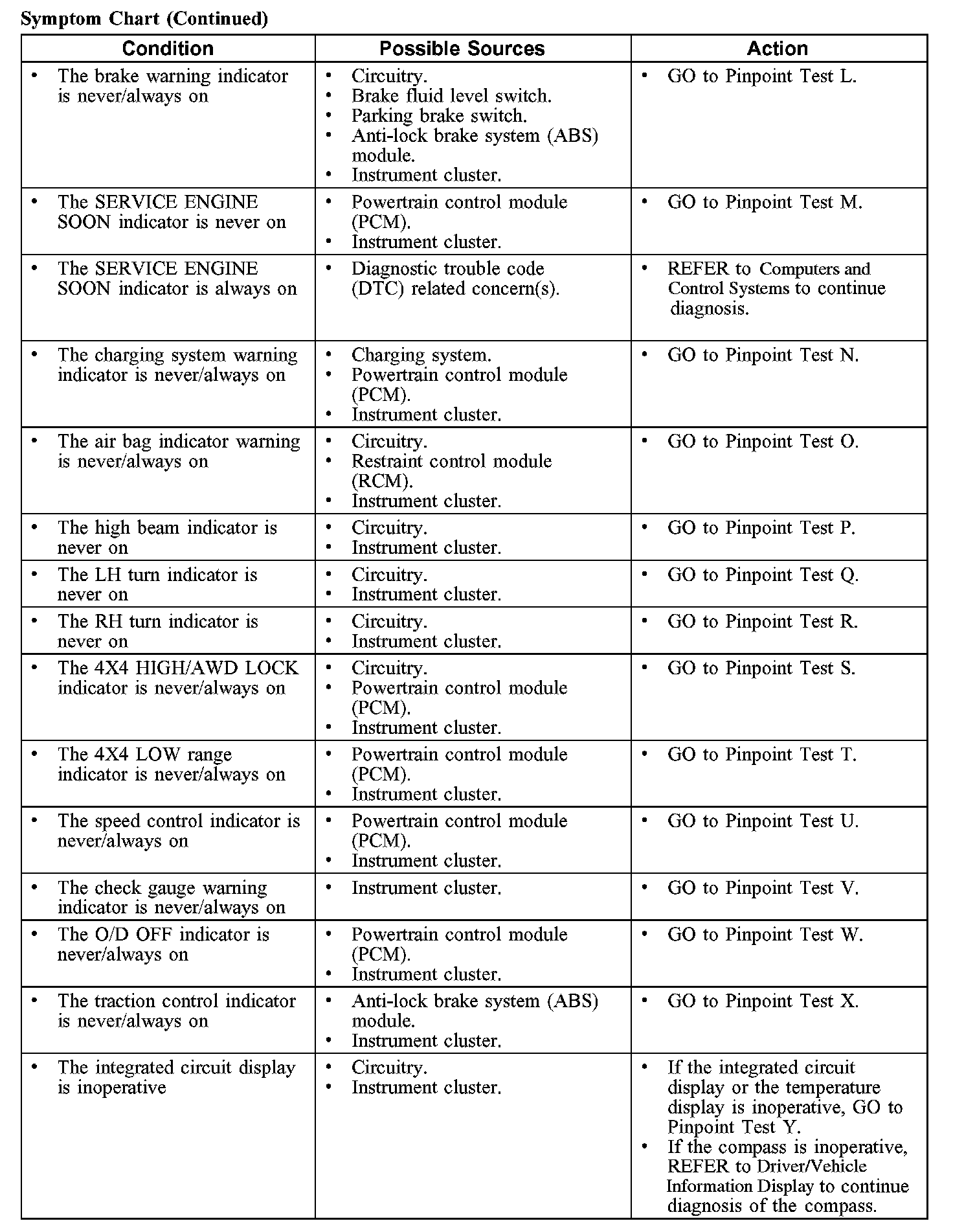

Symptom Chart (Part 2):

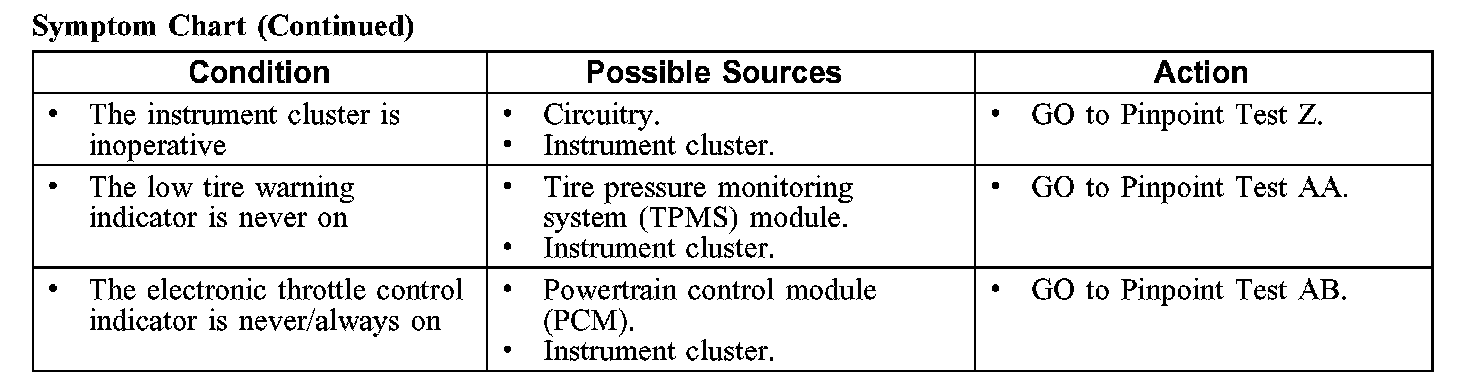

Symptom Chart (Part 3):
