Diagnosis By Symptom - Instrument Cluster and Panel Illumination

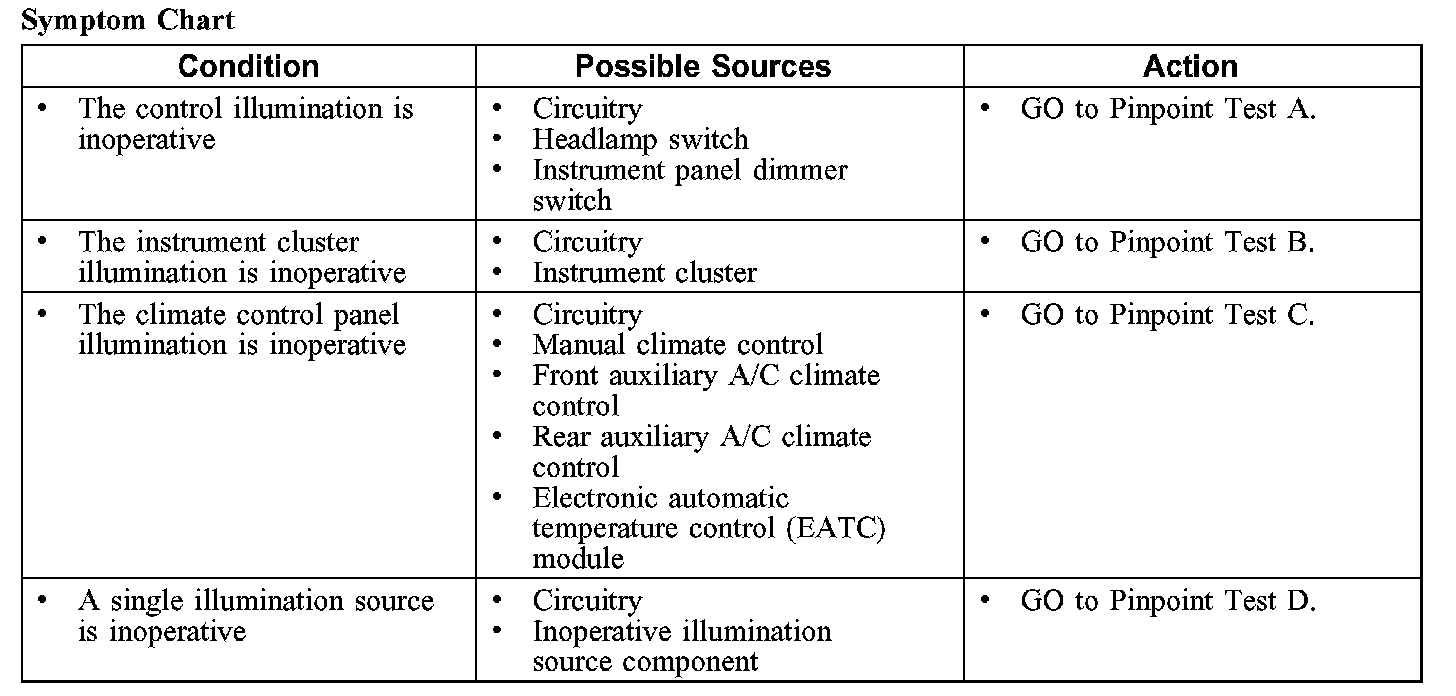

Symptom Chart (Part 1):

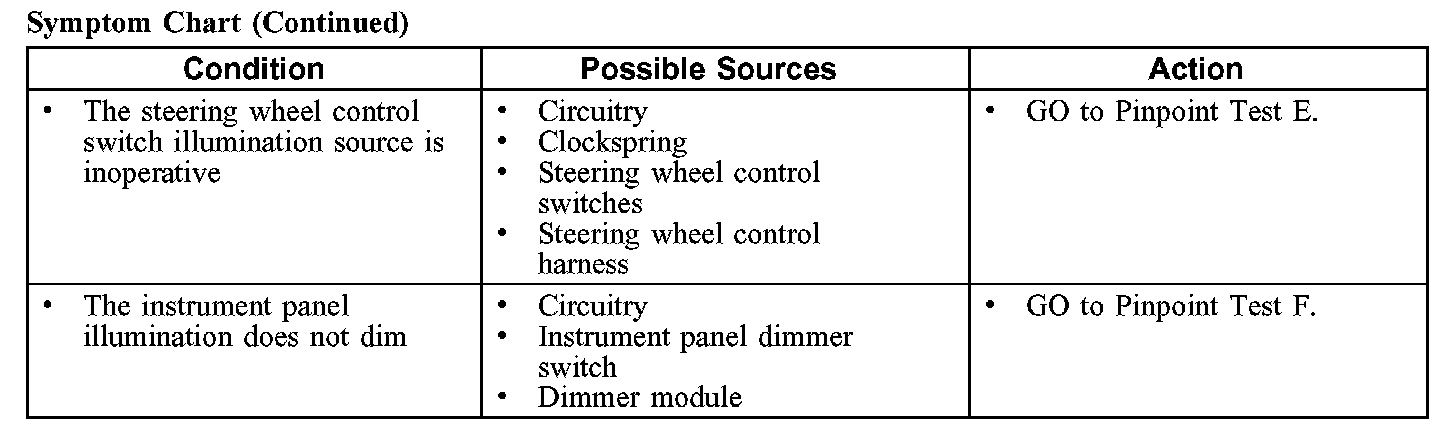

Symptom Chart (Part 2):
