Test D: Incorrect Oil Pressure Gauge Indication

PINPOINT TEST D: INCORRECT OIL PRESSURE GAUGE INDICATION

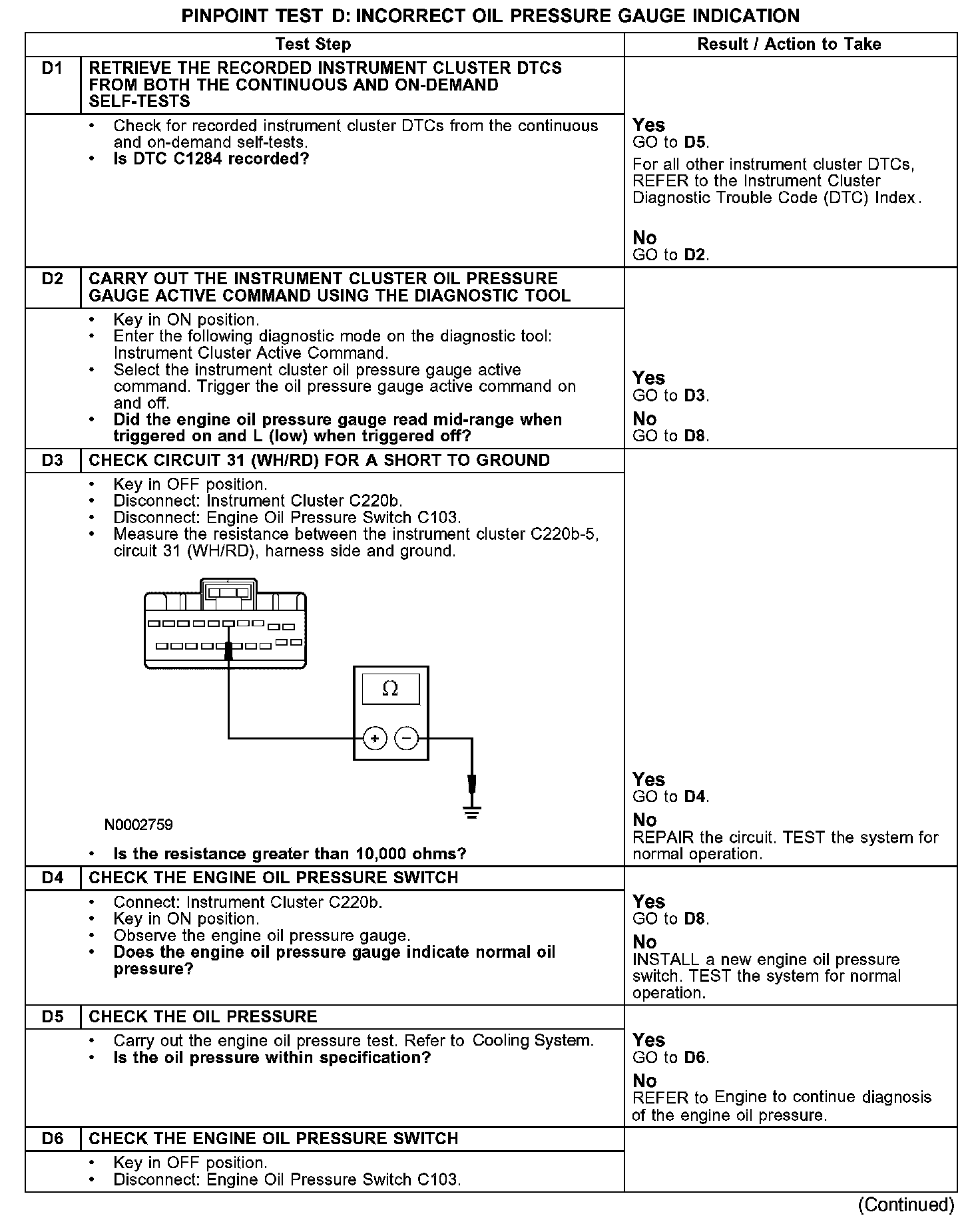

D1-D6:

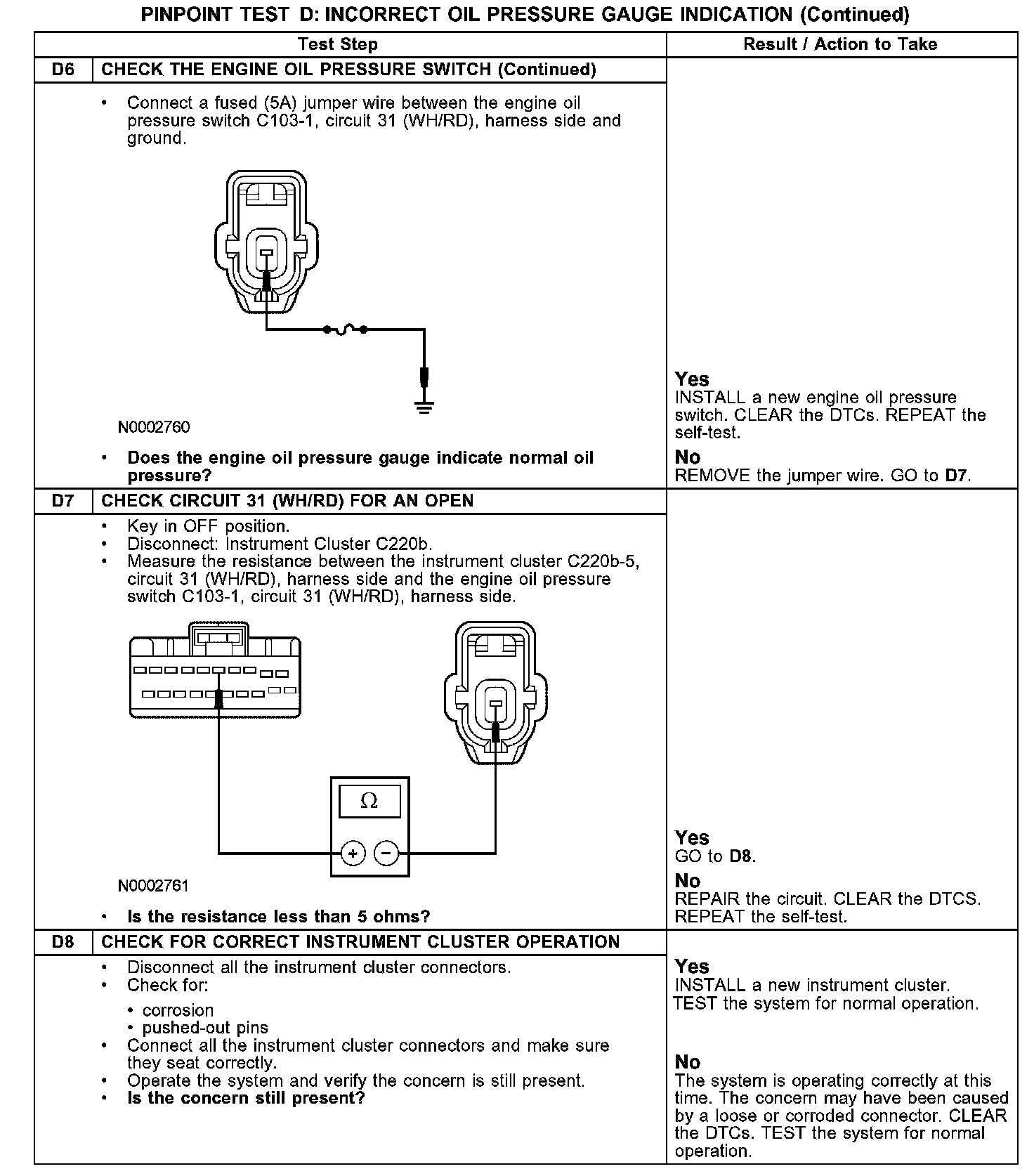

D6-D8:

Normal Operation
The engine oil pressure switch is a normally open switch. When the oil pressure is within normal ranges, the engine oil pressure switch closes and sends a ground signal to the instrument cluster through circuit 31 (WH/RD) and commands the oil pressure gauge to the normal or mid-range position. When the oil pressure is low the engine oil pressure switch opens, removing the ground signal, and the instrument cluster commands the oil pressure gauge to the L (low) position.

Possible Causes
- circuit 31 (WH/RD) open or short to ground
- engine oil pressure switch
- base engine concern
- instrument cluster
