Test G: The Tachometer Is Inoperative

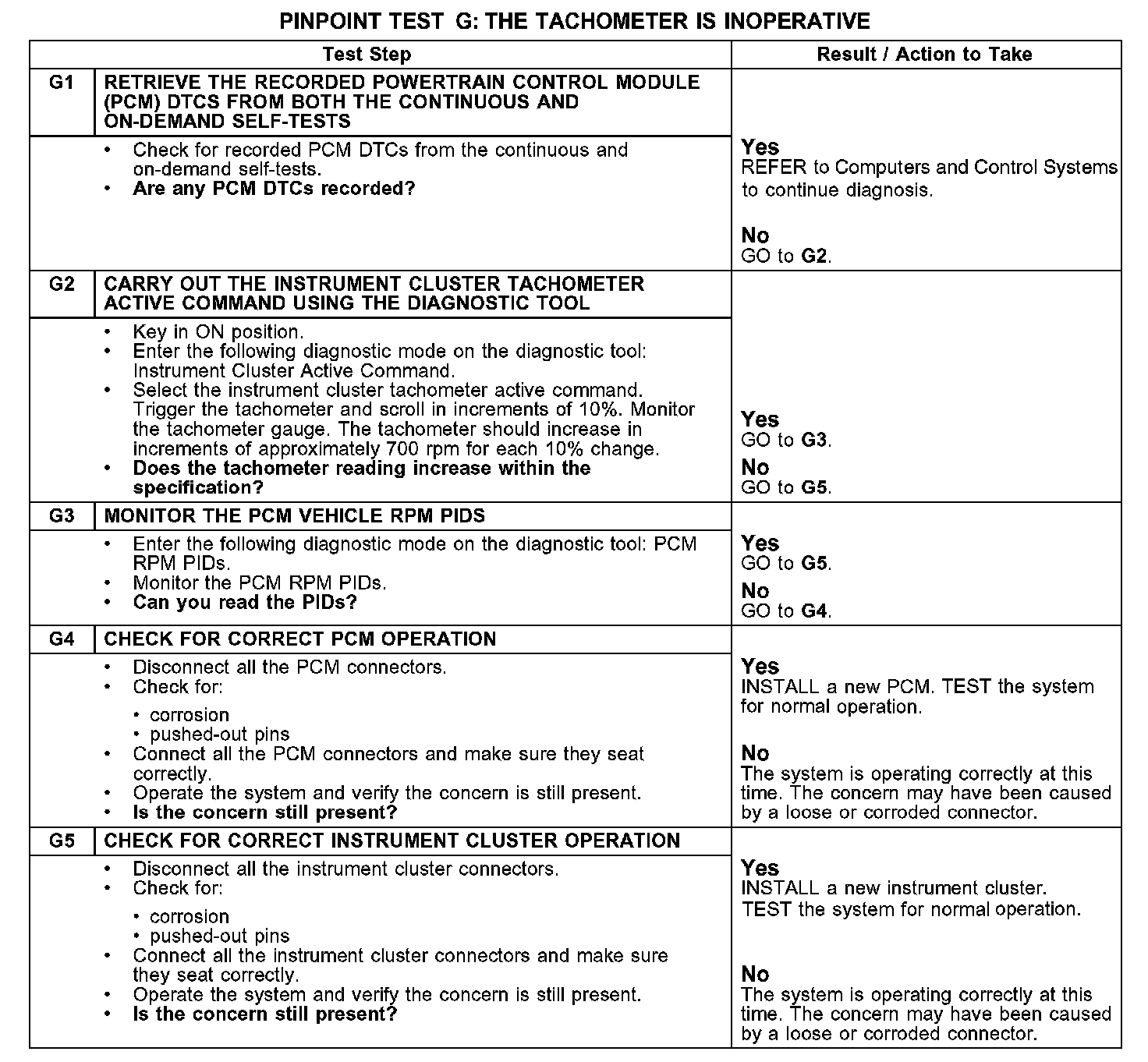

PINPOINT TEST G: THE TACHOMETER IS INOPERATIVE


G1-G5:






Normal Operation
The engine rpm data is provided to the instrument cluster by the powertrain control module (PCM) through the communication network.

Possible Causes
- PCM
- instrument cluster
