Test N: The Charging System Warning Indicator Is Never/Always on

PINPOINT TEST N: THE CHARGING SYSTEM WARNING INDICATOR IS NEVER/ALWAYS ON

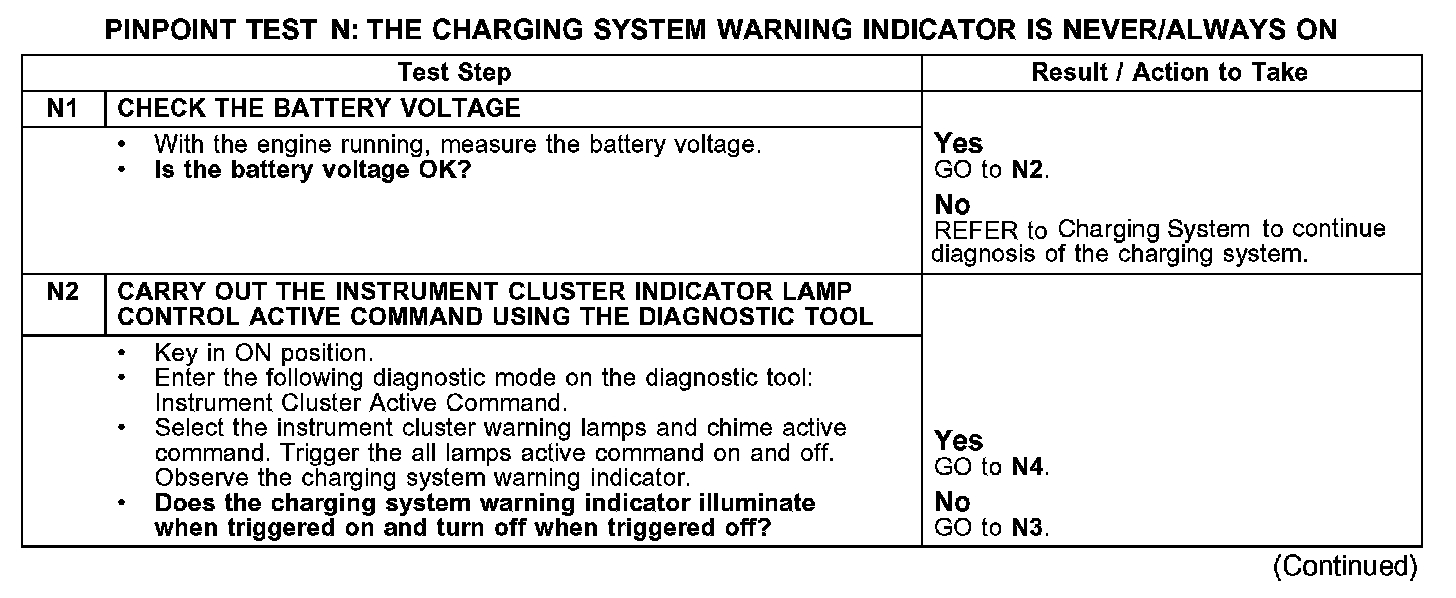

N1-N2:

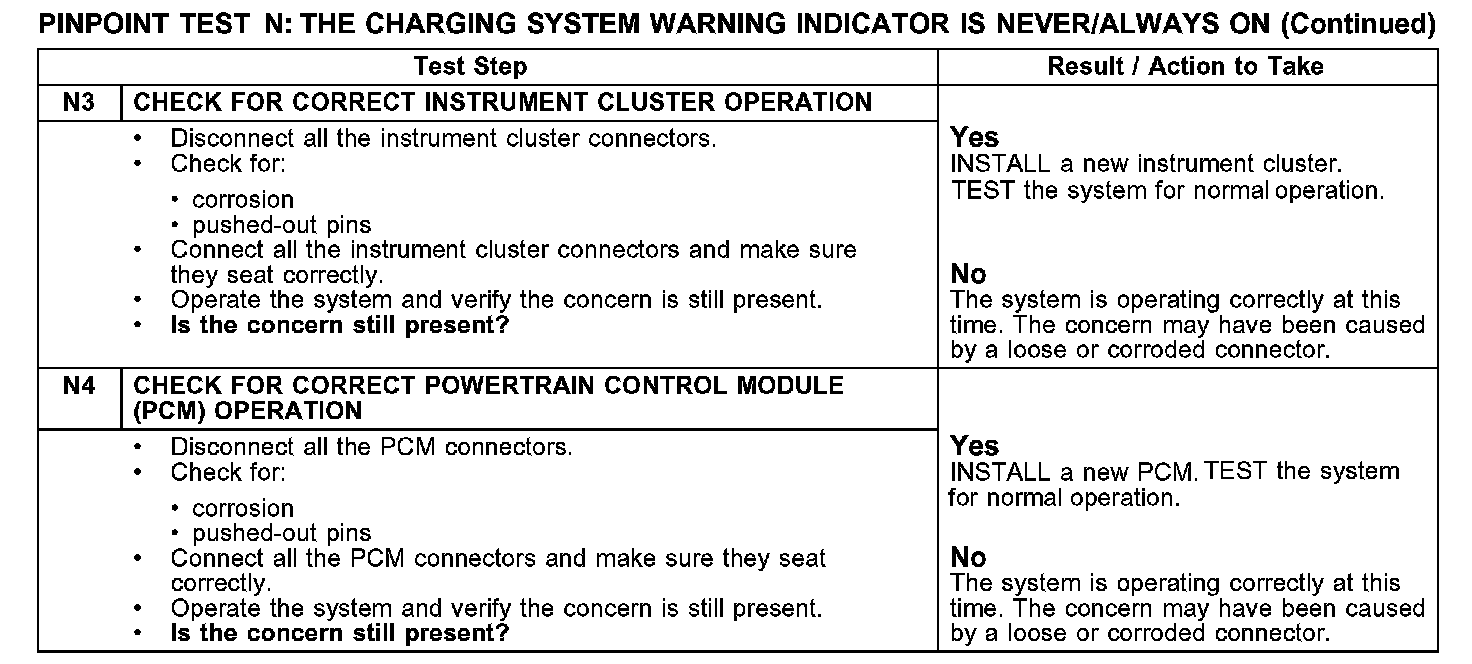

N3-N4:

Normal Operation
The charging system warning indicator is controlled by the instrument cluster based upon data received from the powertrain control module (PCM) over the communication network.

Possible Causes
- charging system
- PCM
- instrument cluster
