Test P: The High Beam Indicator Is Never on

PINPOINT TEST P: THE HIGH BEAM INDICATOR IS NEVER ON

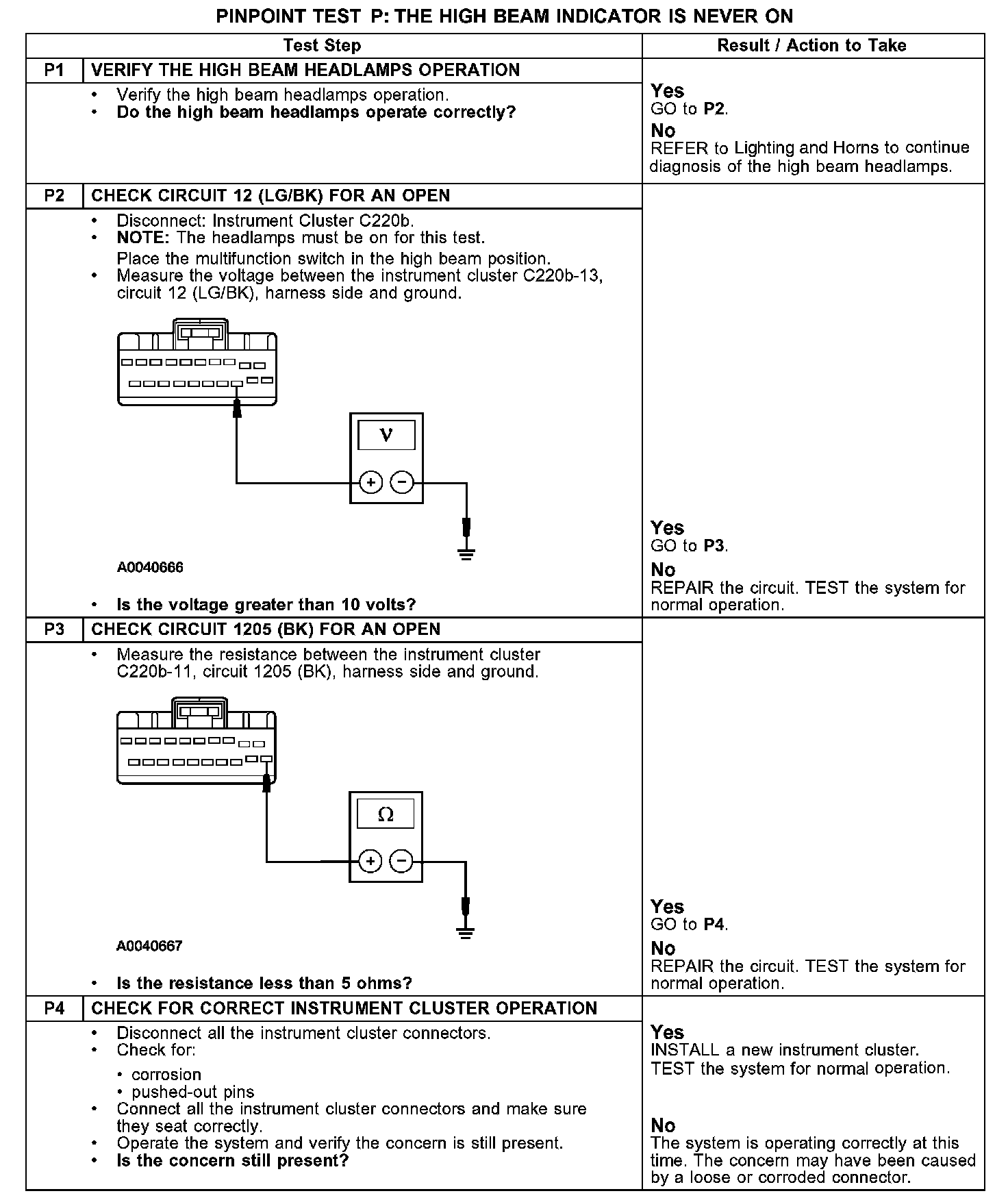

P1-P4:

Normal Operation
The high beam indicator bulb is powered through circuit 12 (LG/BK) when the multifunction switch is placed in the high beam position. The high beam indicator bulb is grounded through the instrument cluster bulb ground circuit 1205 (BK).

Possible Causes
- circuit 12 (LG/BK) open
- circuit 1205 (BK) open
- multifunction switch
- instrument cluster
