Test Q: The LH Turn Indicator Is Never on

PINPOINT TEST Q: THE LH TURN INDICATOR IS NEVER ON

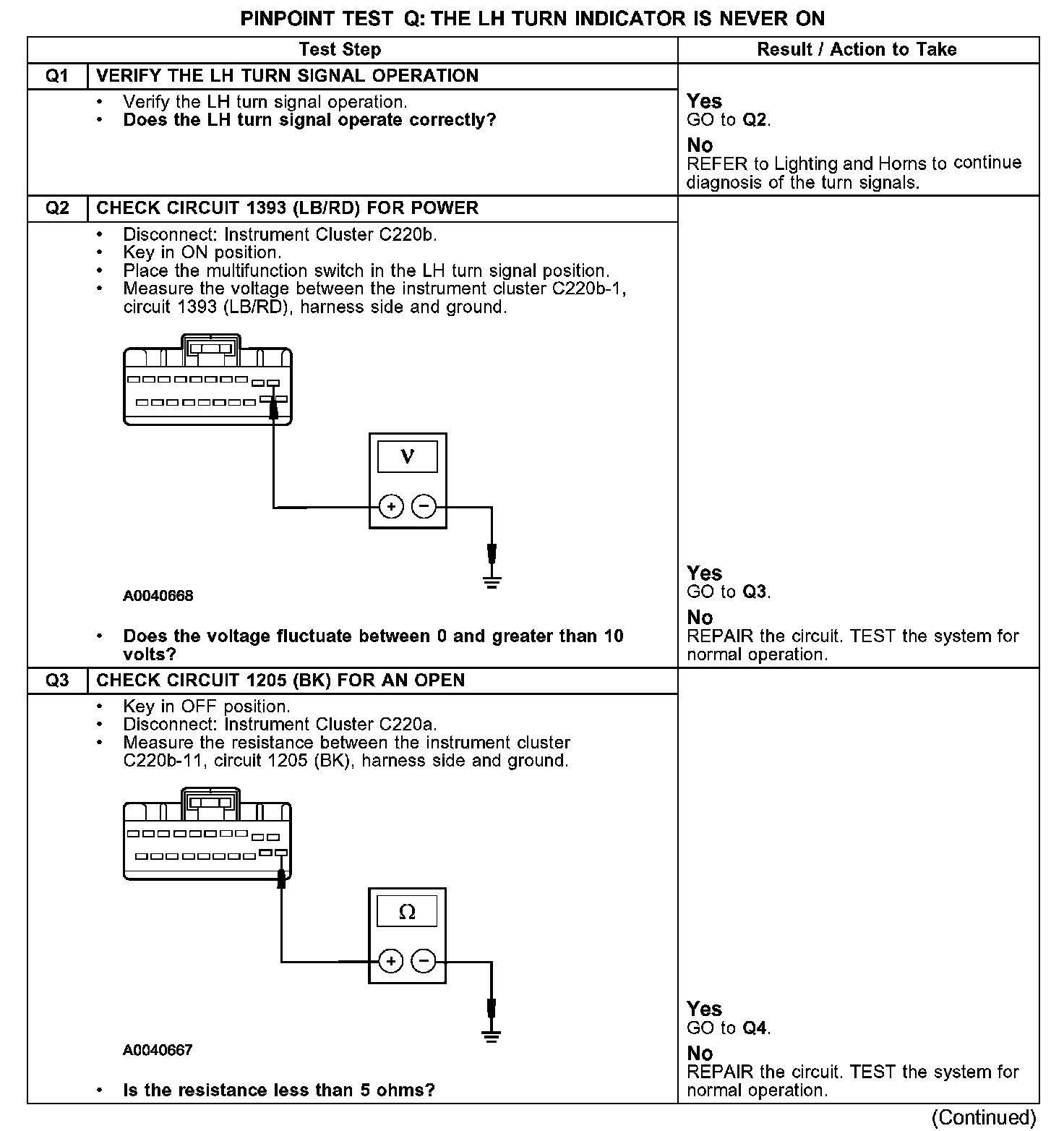

Q1-Q3:

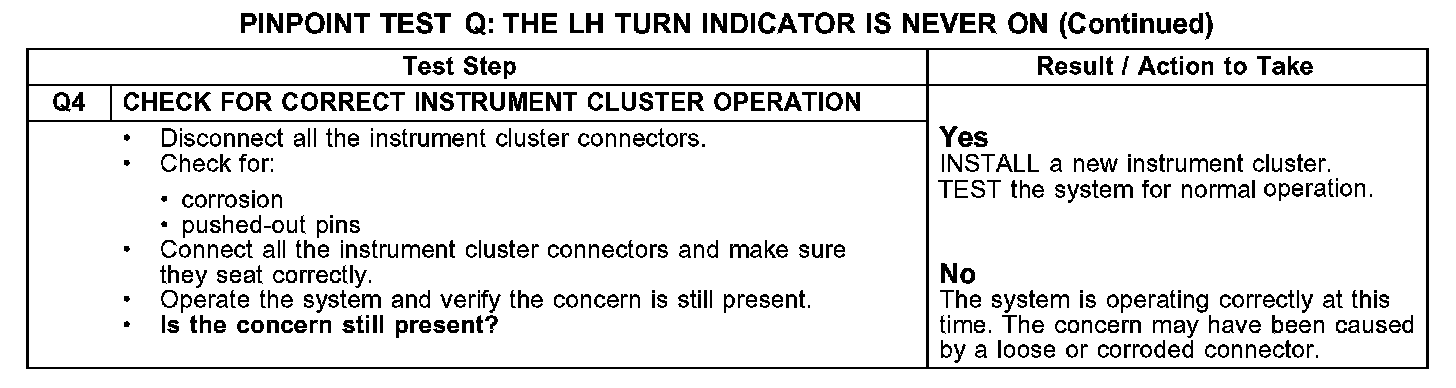

Q4:

Normal Operation
The LH turn indicator bulb is powered through circuit 1393 (LB/RD) when the multifunction switch is placed in the LH turn signal position. The LH turn indicator bulb is grounded through the instrument cluster bulb ground circuit 1205 (BK).

Possible Causes
- circuit 1393 (LB/RD) open
- circuit 1205 (BK) open
- multifunction switch
- instrument cluster
