Test T: The 4X4 Low Indicator Is Never/Always on

PINPOINT TEST T: THE 4X4 LOW INDICATOR IS NEVER/ALWAYS ON

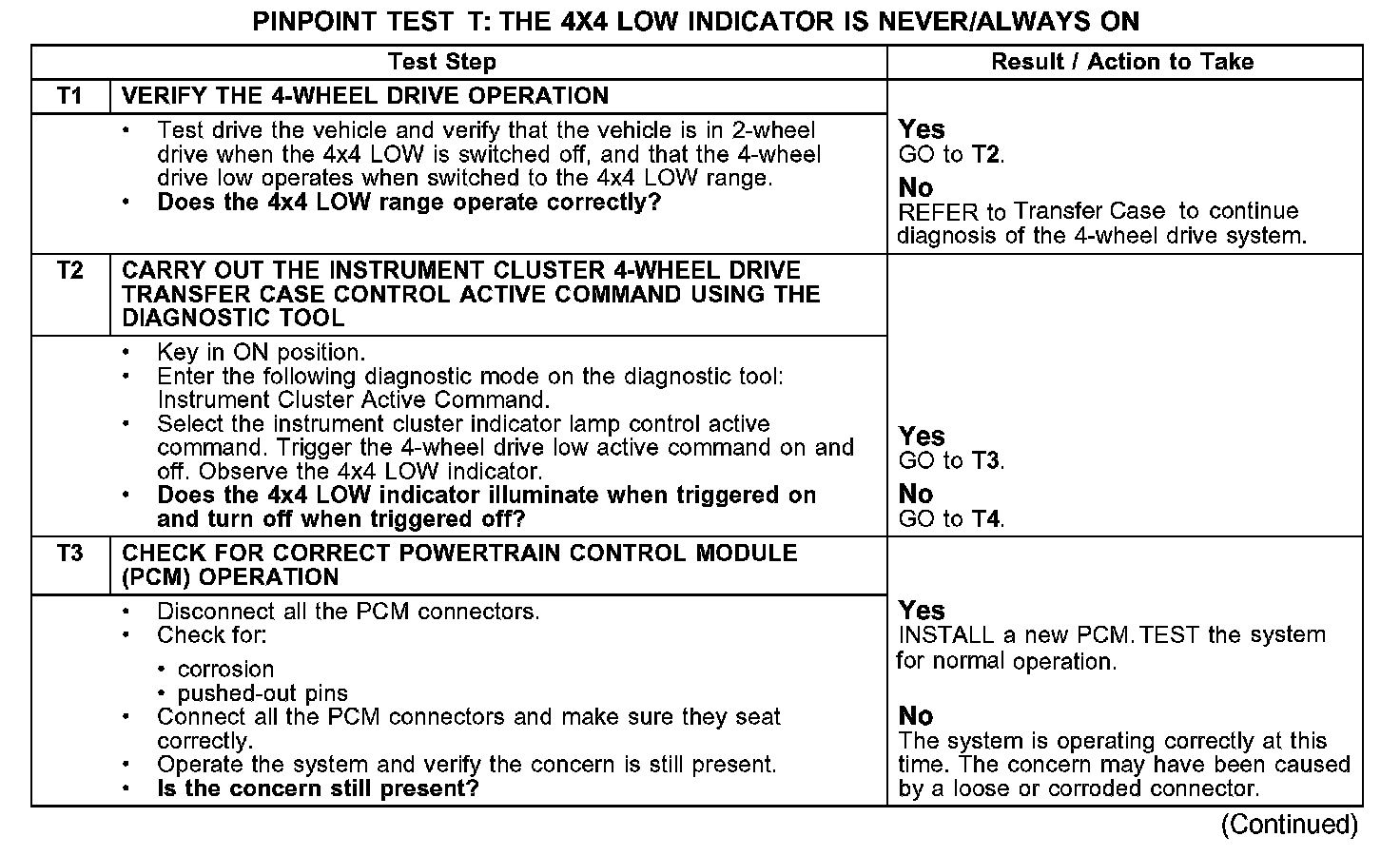

T1-T3:

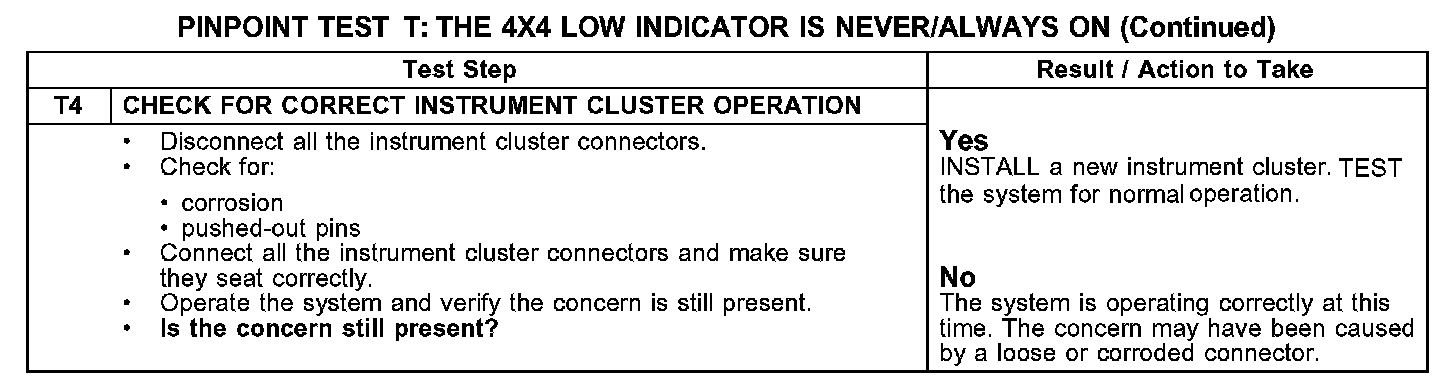

T4:

Normal Operation
The 4X4 low indicator status is transmitted to the instrument cluster from the powertrain control module (PCM) through the communication network.

Possible Causes
- PCM
- instrument cluster
