Test X: The Traction Control Indicator Is Never/Always on

PINPOINT TEST X: THE TRACTION CONTROL INDICATOR IS NEVER/ALWAYS ON

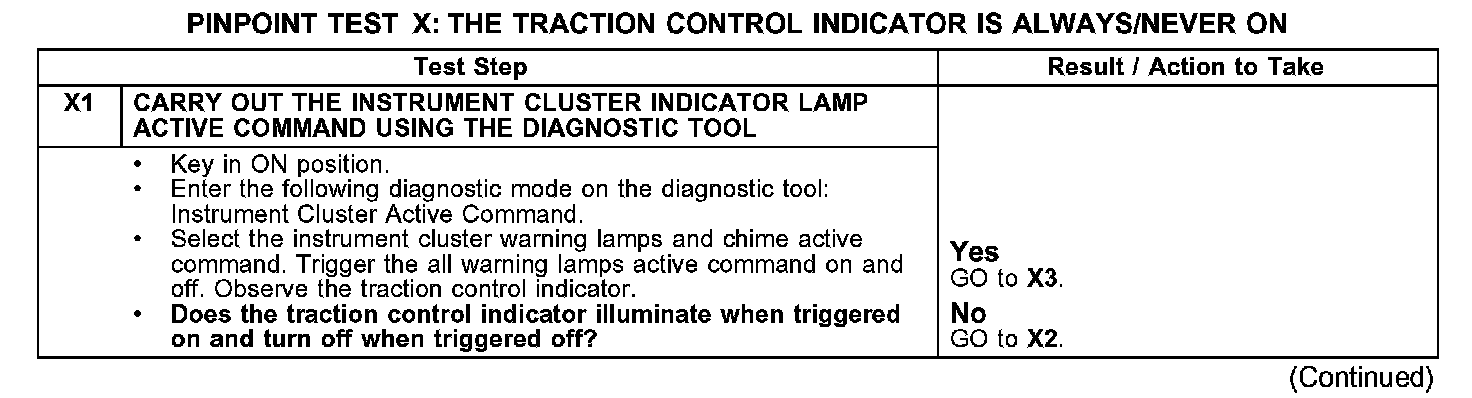

X1:

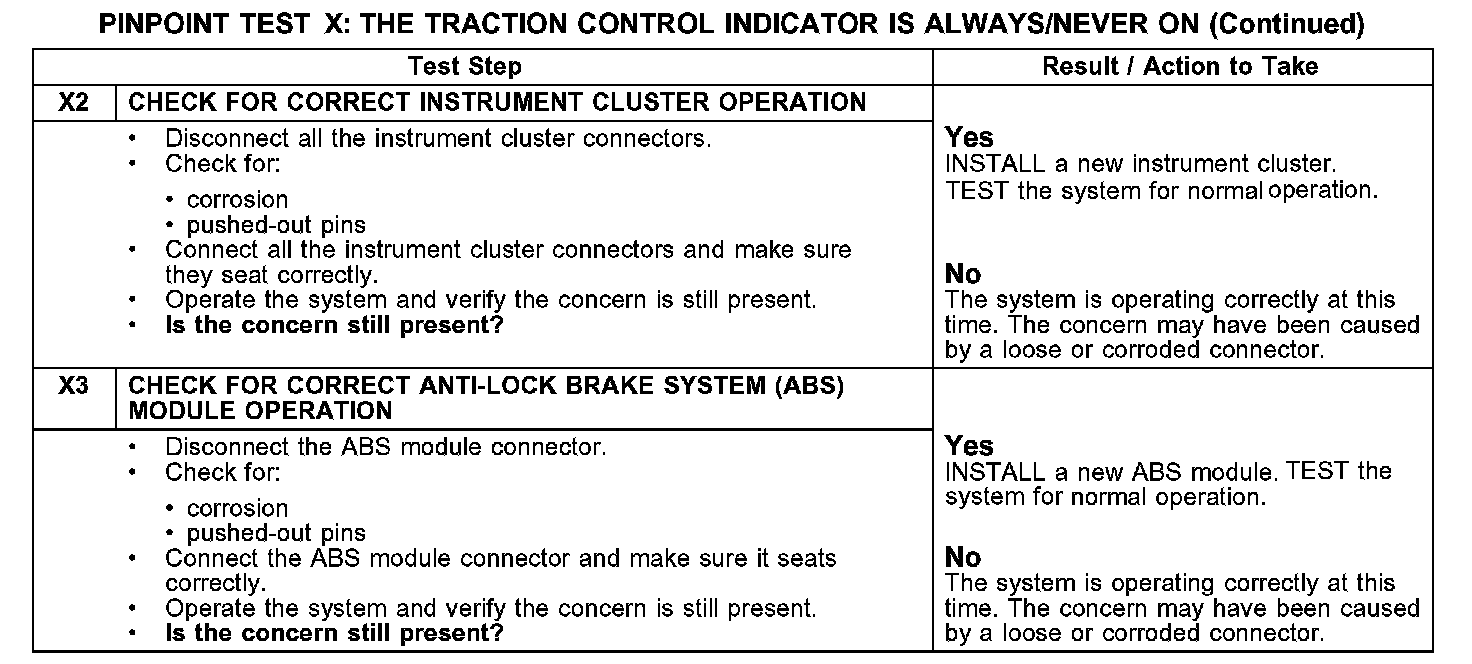

X2-X3:

Normal Operation
The instrument cluster receives the traction control status from the anti-lock brake system (ABS) module through the communication network.

Possible Causes
- ABS module
- instrument cluster
