Test B: The Headlamp on Reminder Chime Is Inoperative

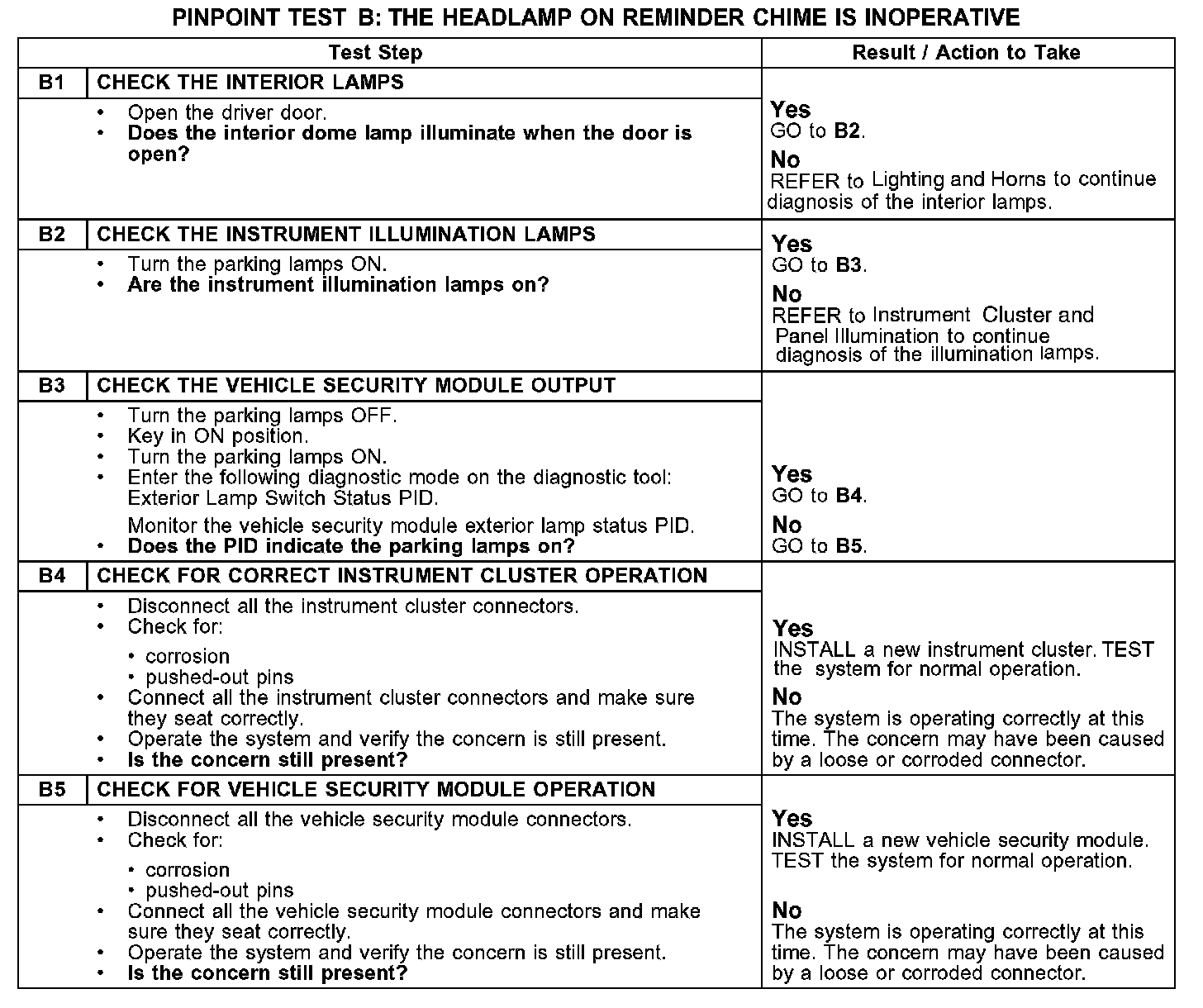

PINPOINT TEST B: THE HEADLAMP ON REMINDER CHIME IS INOPERATIVE

B1-B5:

Normal Operation
The headlamps on warning chime sounds when the driver door is opened with the ignition switch in the OFF position and the key out, and the vehicle security module detects the exterior lamps on with the headlamp switch not in the autolamp position. The headlamp on reminder chime is only operative when autolamp is not selected.

Possible Causes
- instrument cluster
- vehicle security module
