Test F: The Chime Sounds When The Driver Door Is Ajar (No Key In Ignition and Headlamps Off)

PINPOINT TEST F: THE CHIME SOUNDS WHEN THE DRIVER DOOR IS AJAR (NO KEY IN IGNITION AND HEADLAMPS OFF)

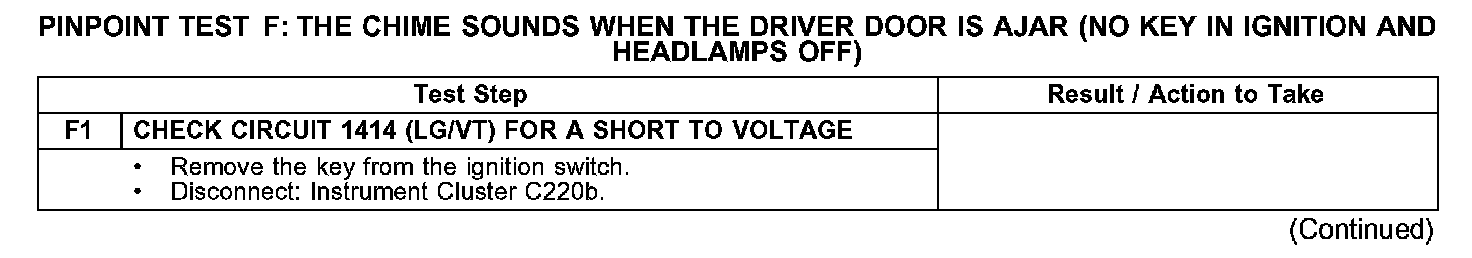

F1:

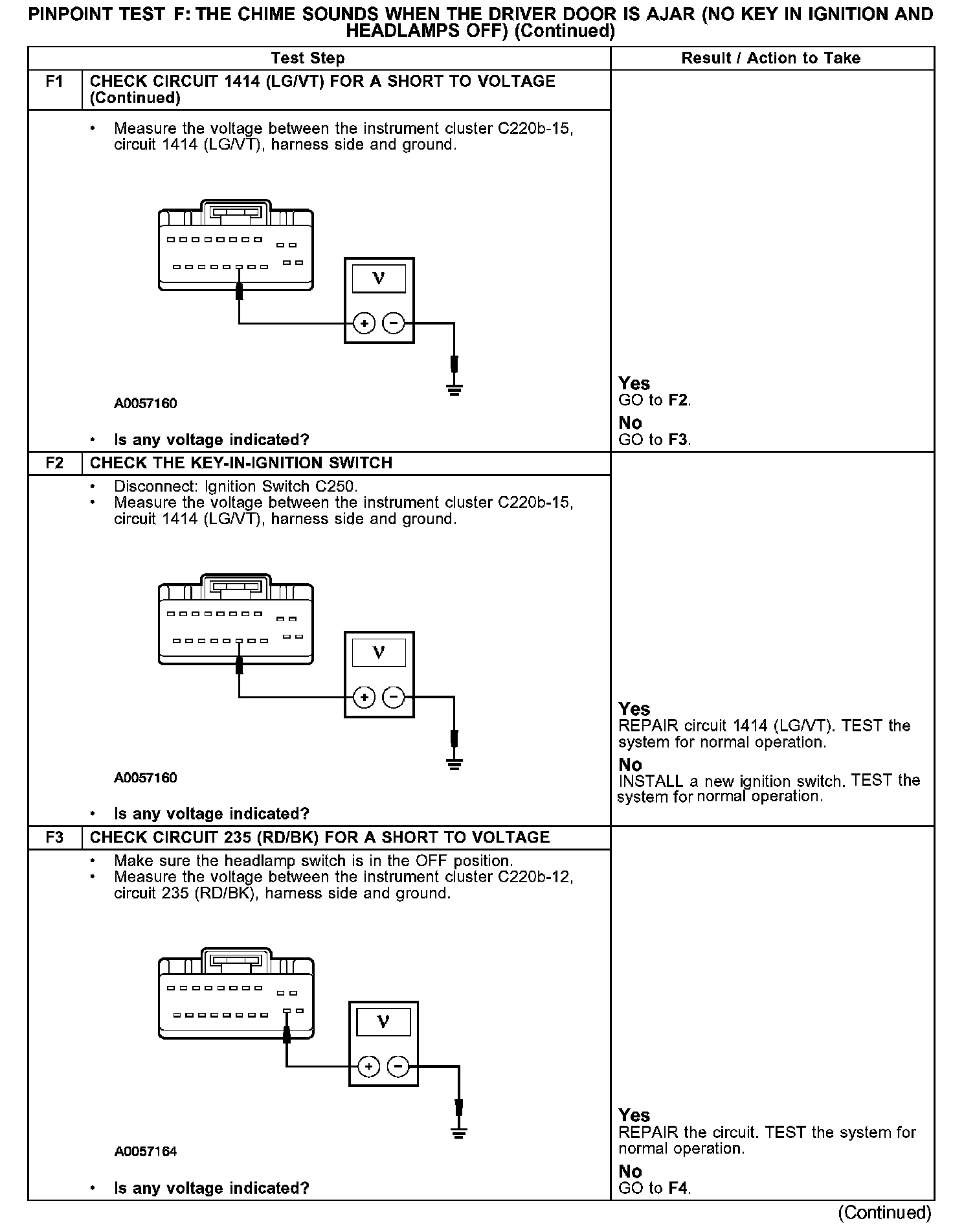

F1-F3:

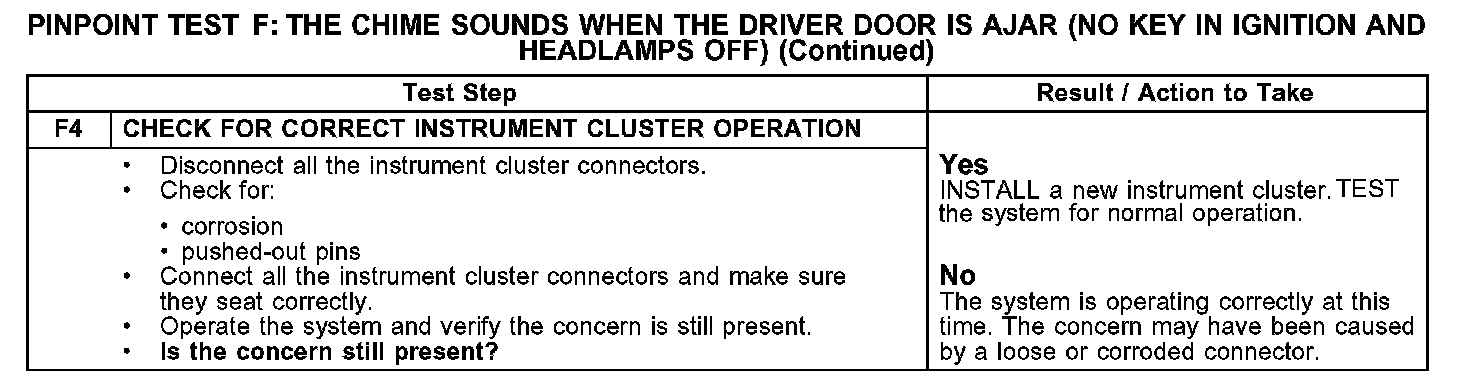

F4:

Normal Operation
The instrument cluster sounds the warning chime when the driver door is open and the ignition switch is in the OFF position, the headlamps are left on or the key is left in the ignition switch.

Possible Causes
- circuit 1414 (LG/VT) short to voltage
- circuit 235 (RD/BK) short to voltage
- key-in-ignition switch
- instrument cluster
