Home >> Mercury >> 2005 >> Mountaineer 2WD V8-4.6L SOHC VIN W >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> LH Power Exterior Rear View Mirror C522, RH Power Exterior Rear View Mirror C622

LH Power Exterior Rear View Mirror C522, RH Power Exterior Rear View Mirror C622

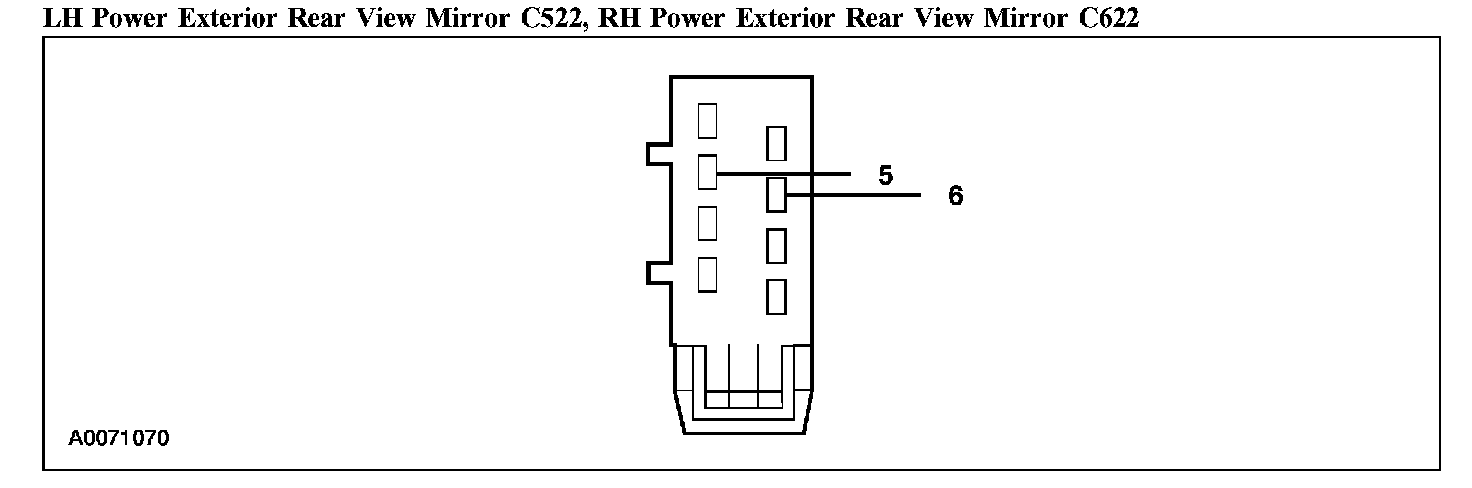

LH Power Exterior Rear View Mirror C522, RH Power Exterior Rear View Mirror C622 (Part 1):

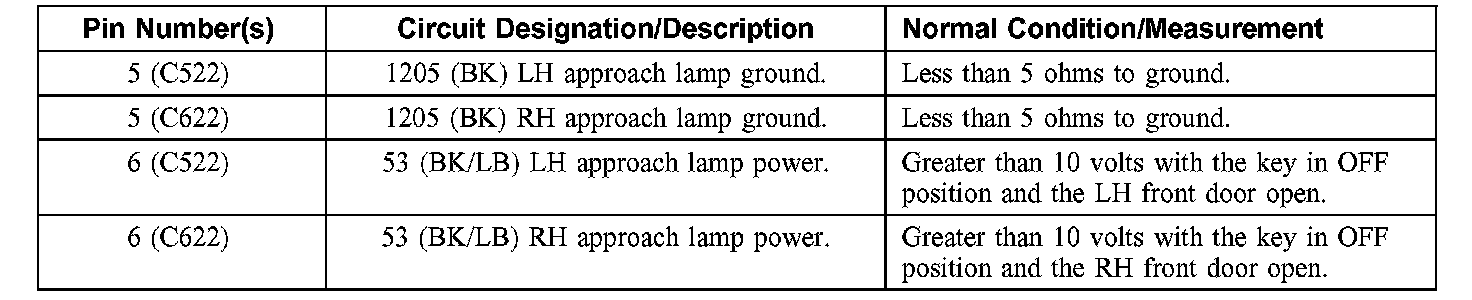

LH Power Exterior Rear View Mirror C522, RH Power Exterior Rear View Mirror C622 (Part 2):
