Test B: An Individual Interior Lamp Is Inoperative

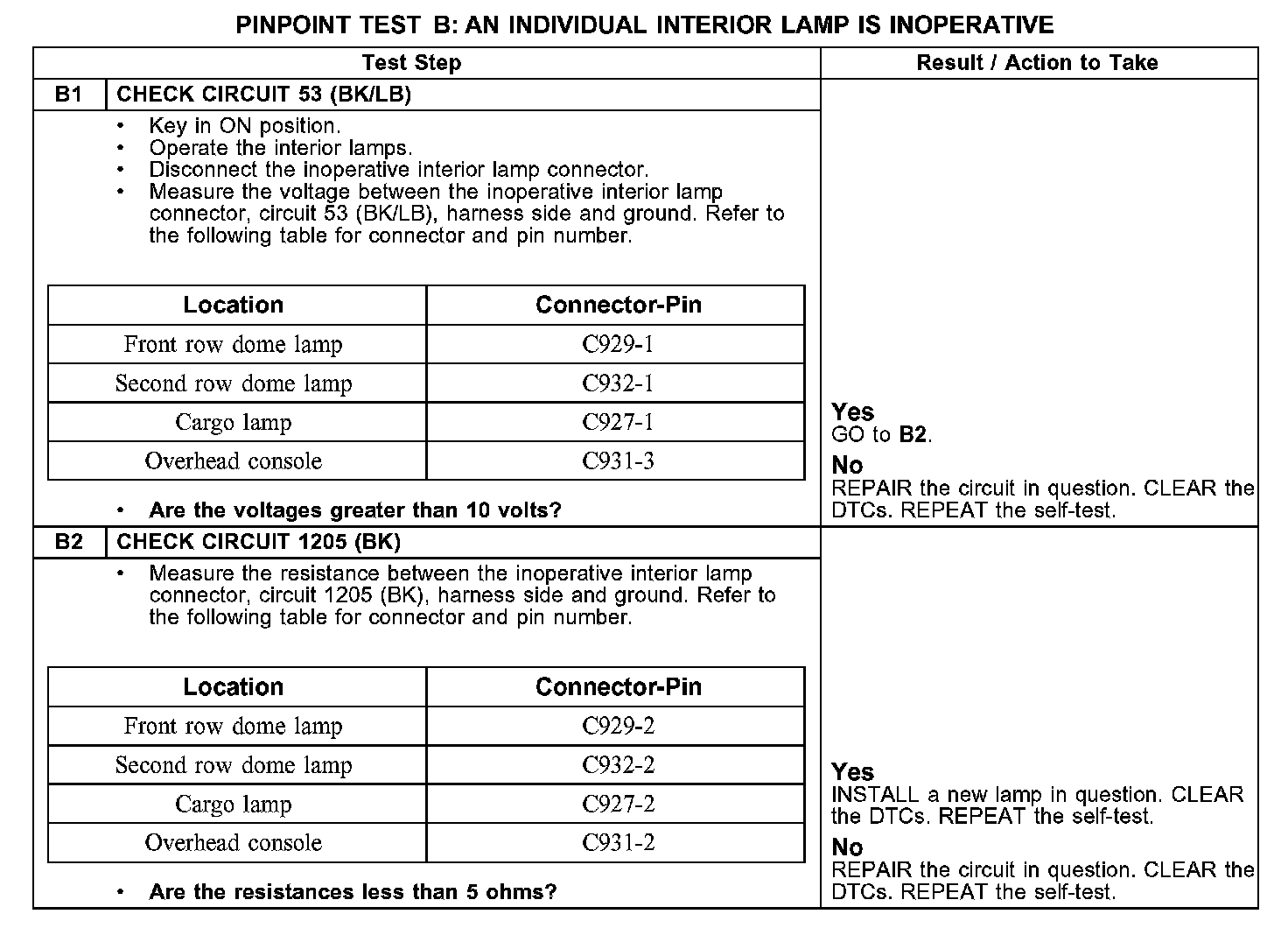

PINPOINT TEST B: AN INDIVIDUAL INTERIOR LAMP IS INOPERATIVE

B1-B2:

Normal Operation
The instrument cluster energizes circuit 53 (BK/LB) providing power to the interior lamps. The interior lamps are grounded through circuit 1205 (BK). The interior lamps remain lit until the instrument cluster removes voltage from circuit 53 (BK/LB).

Possible Causes
- instrument cluster
- bulb
- circuit 53 (BK/LB)
- circuit 1205 (BK)
