Fog/Driving Lamp: Service and Repair

FOG LAMP

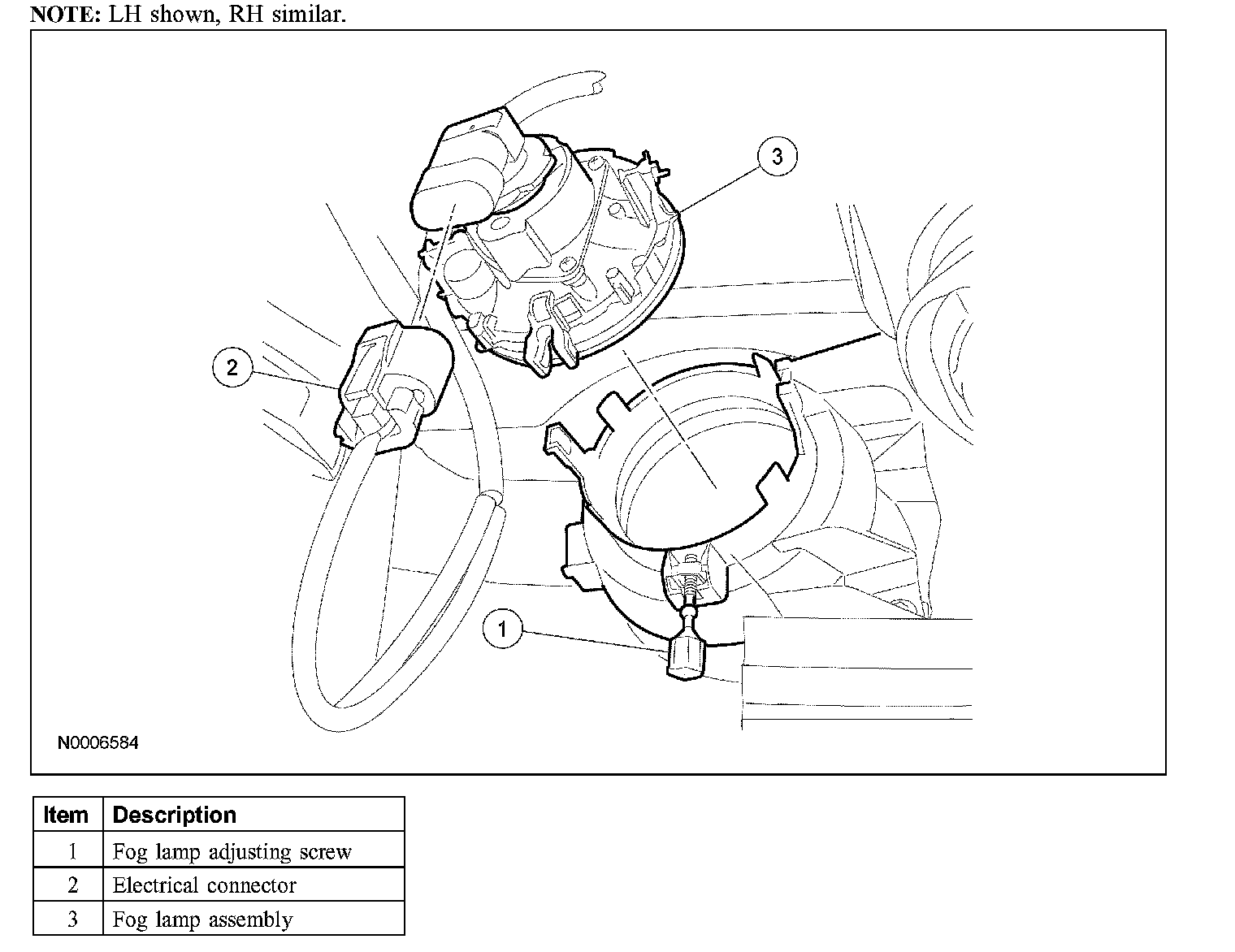

Removal and Installation

NOTE: Make sure the headlamp switch and ignition switch are in the OFF position

1. Pivot the fog lamp adjusting screw aside
2. Disconnect the electrical connector
3. Remove the fog lamp assembly
4. To install, reverse the removal procedure
