Home >> Mercury >> 2005 >> Mountaineer 2WD V8-4.6L SOHC VIN W >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Pinpoint Tests >> Headlamps >> Connector Circuit Reference >> Multifunction Switch C202c

Multifunction Switch C202c

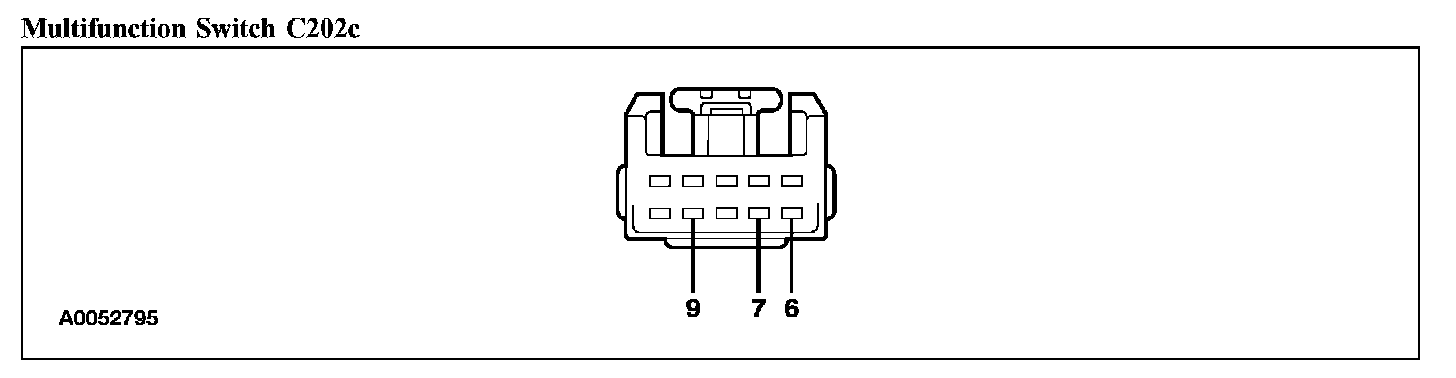

Multifunction Switch C202c (Part 1):

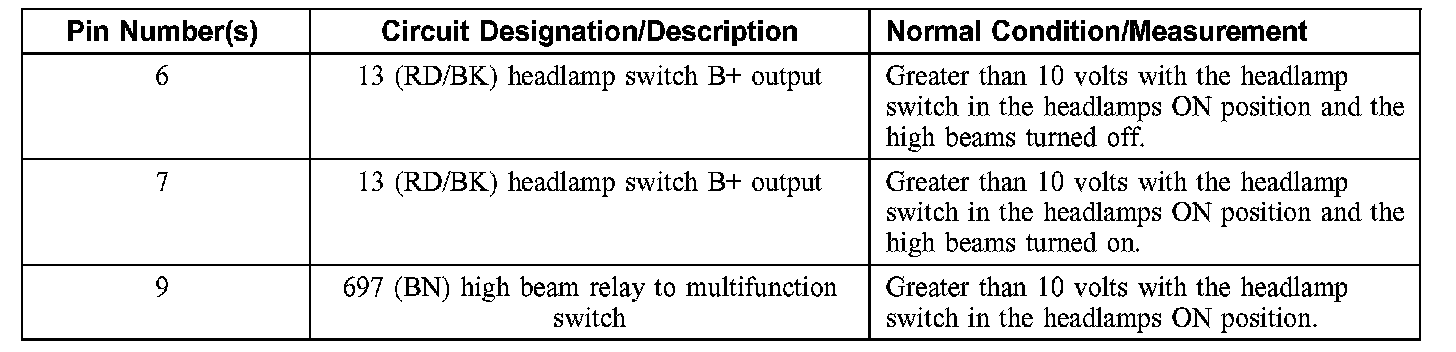

Multifunction Switch C202c (Part 2):
