Test A: Both Headlamps Are Inoperative

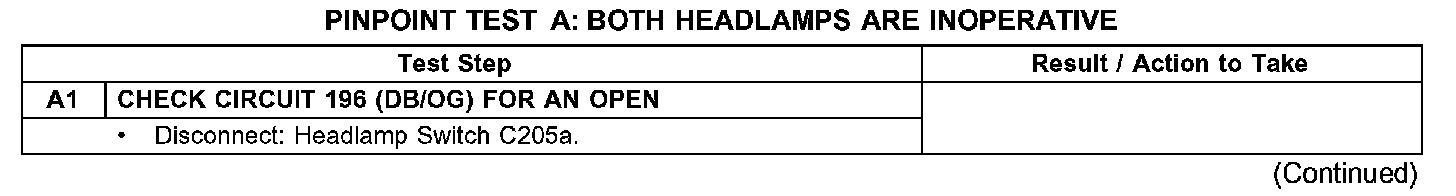

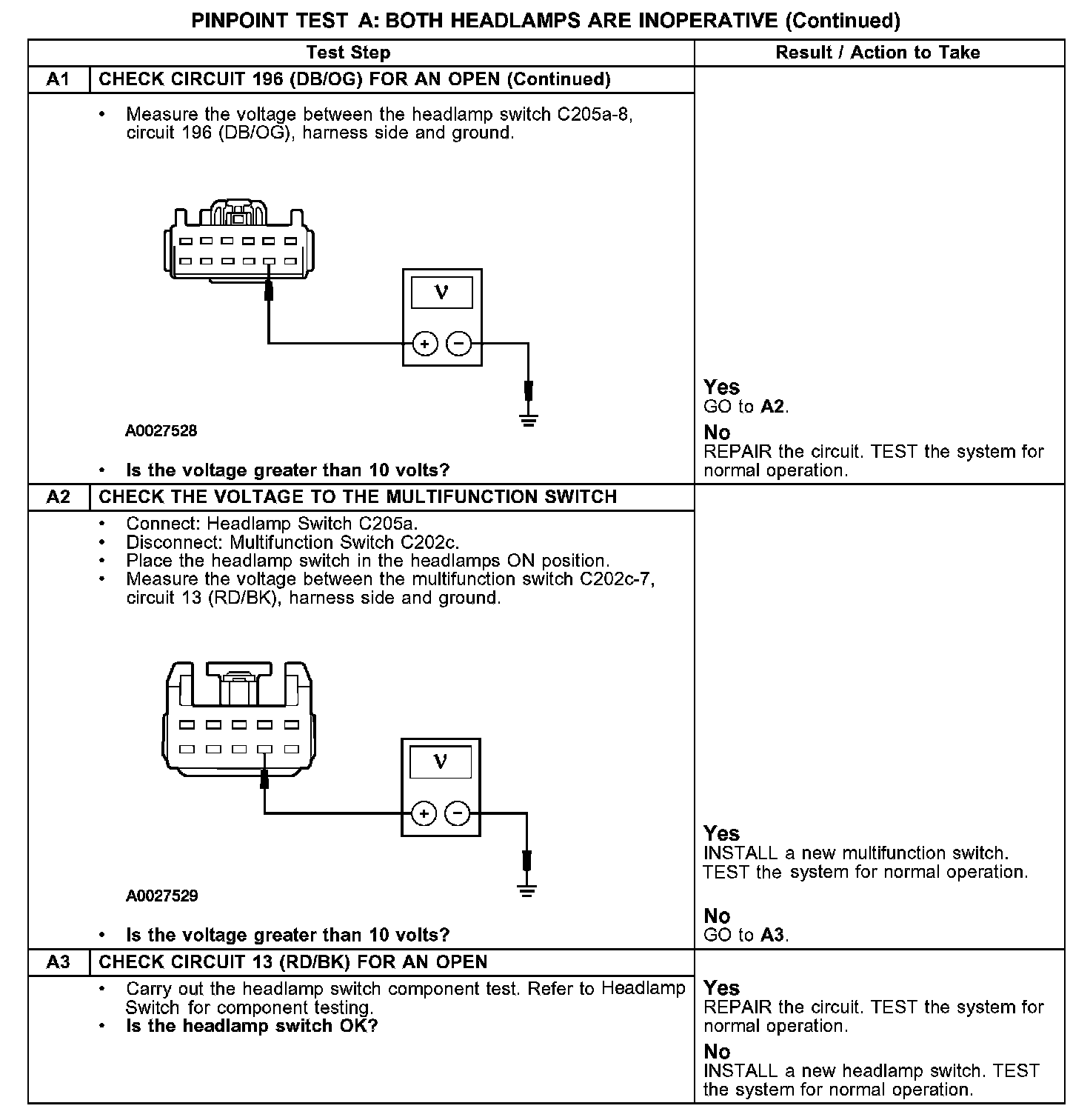

PINPOINT TEST A: BOTH HEADLAMPS ARE INOPERATIVE

A1:

A1-A3:

Normal Operation
Battery voltage is supplied to the headlamp switch through circuit 196 (DB/OG). When the headlamp switch is placed in the headlamps ON position, voltage is transferred to circuit 13 (RD/BK) which supplies power to the low beam headlamps and to the multifunction switch.

Possible Causes
- Circuit 196 (DB/OG) open
- Circuit 13 (RD/BK) open
- Headlamp switch
- Multifunction switch
