Headlamp: Service and Repair

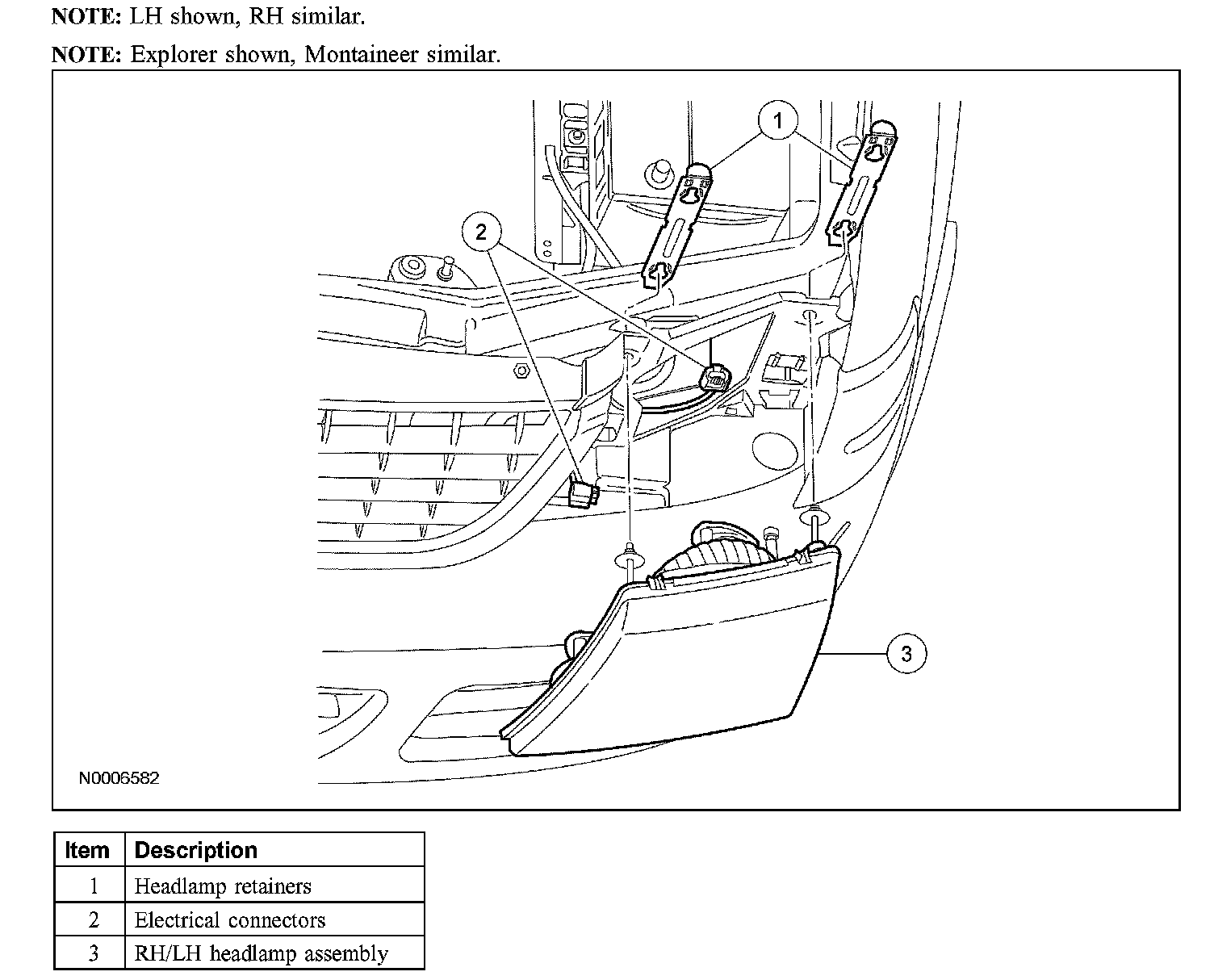

HEADLAMP ASSEMBLY







Removal and Installation

NOTE: Make sure the headlamp switch and ignition switch are in the OFF position.

1. Remove both headlamp retainers.
2. Disconnect the electrical connectors.
3. Remove the headlamp assembly.
