Horn: Service and Repair

HORN







Removal and Installation

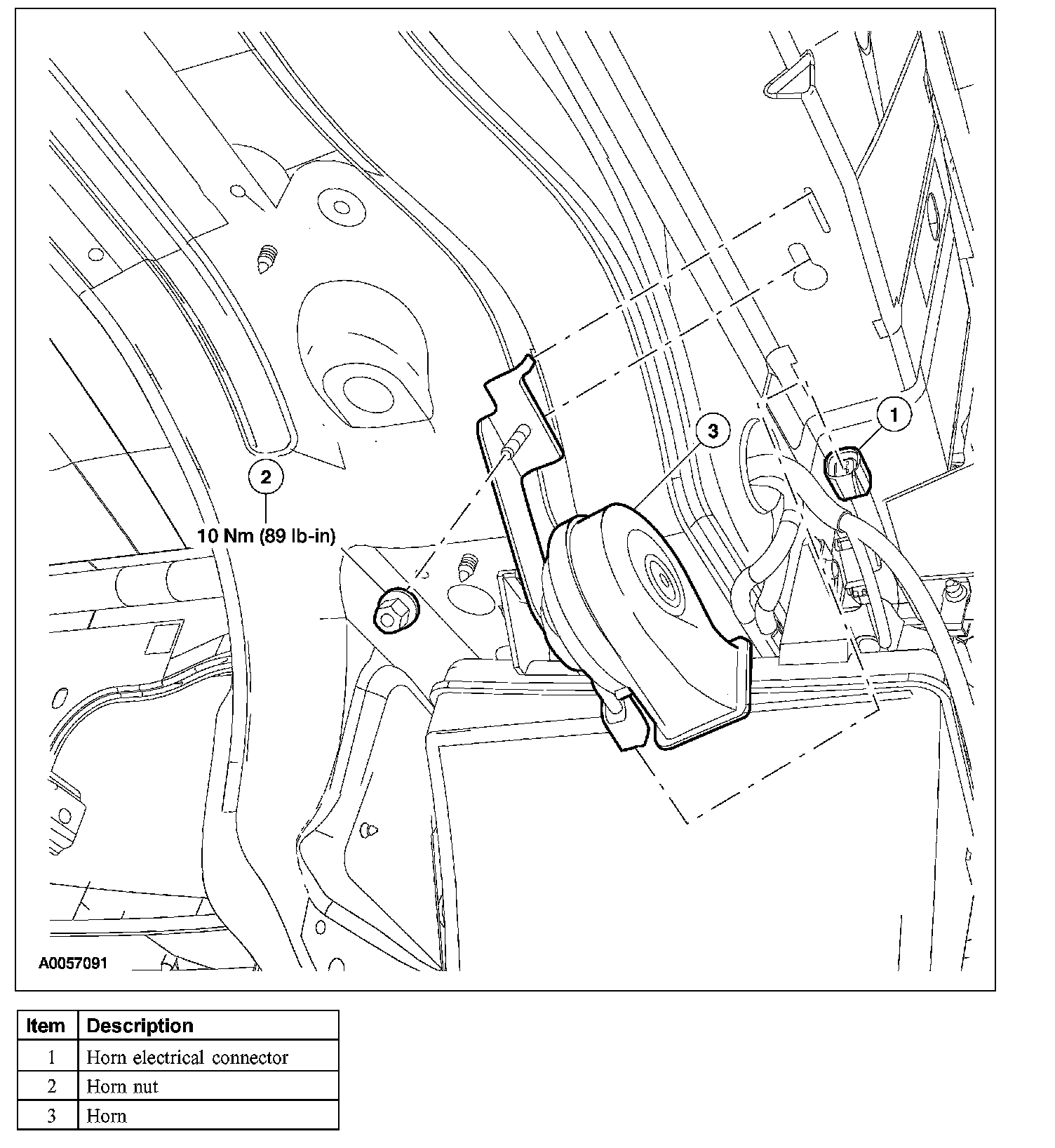

1. NOTE: RH is shown, LH is similar.

Remove the fender splash shield.

2. Disconnect the horn electrical connector
3. Remove the nut and remove the horn.
- To install, tighten to 10 Nm (89 lb-in).

4. To install, reverse the removal procedure.
