Test B: The Rear Window Wiper Is Inoperative

PINPOINT TEST B: THE REAR WINDOW WIPER IS INOPERATIVE

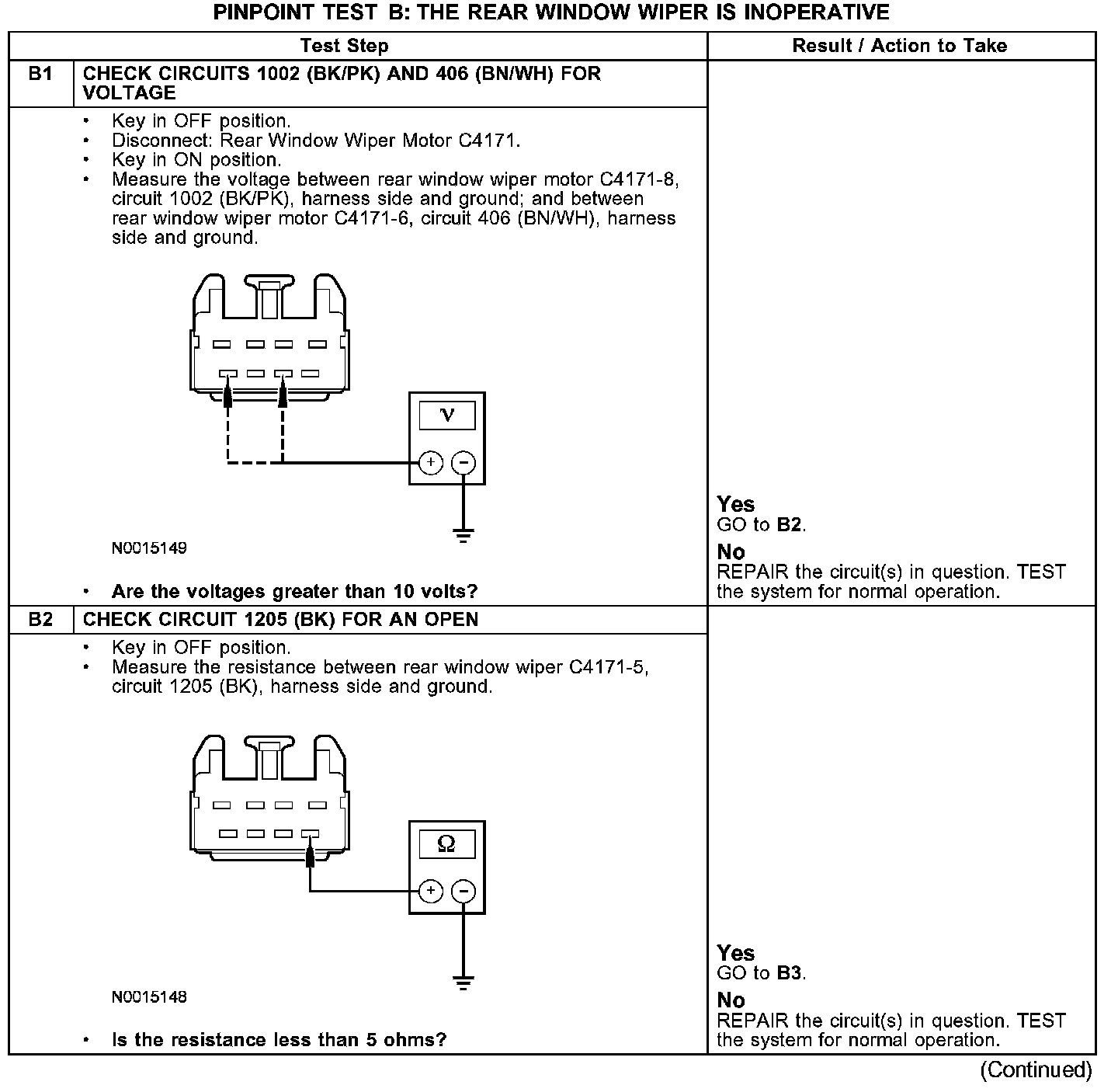

B1-B2:

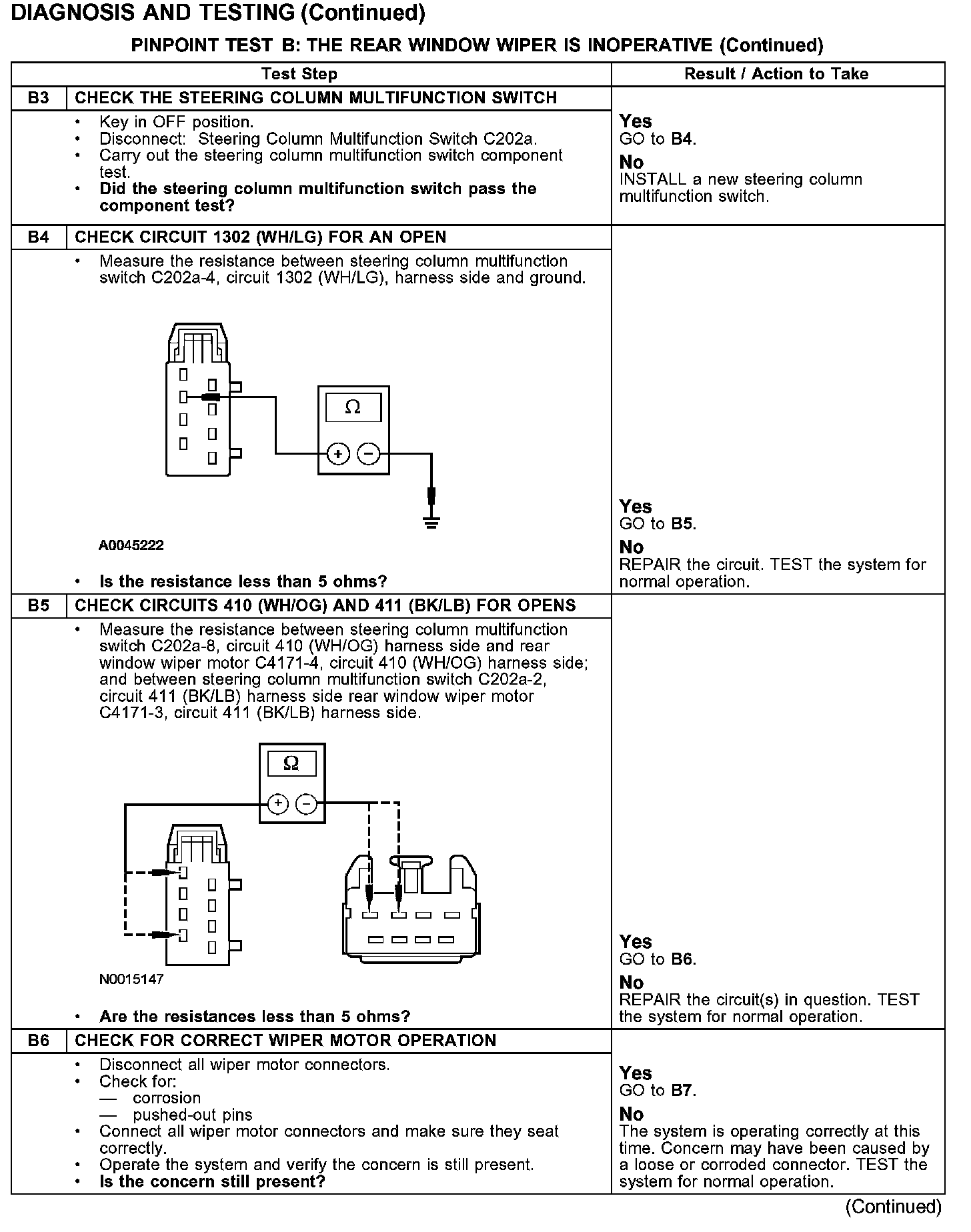

B3-B6:

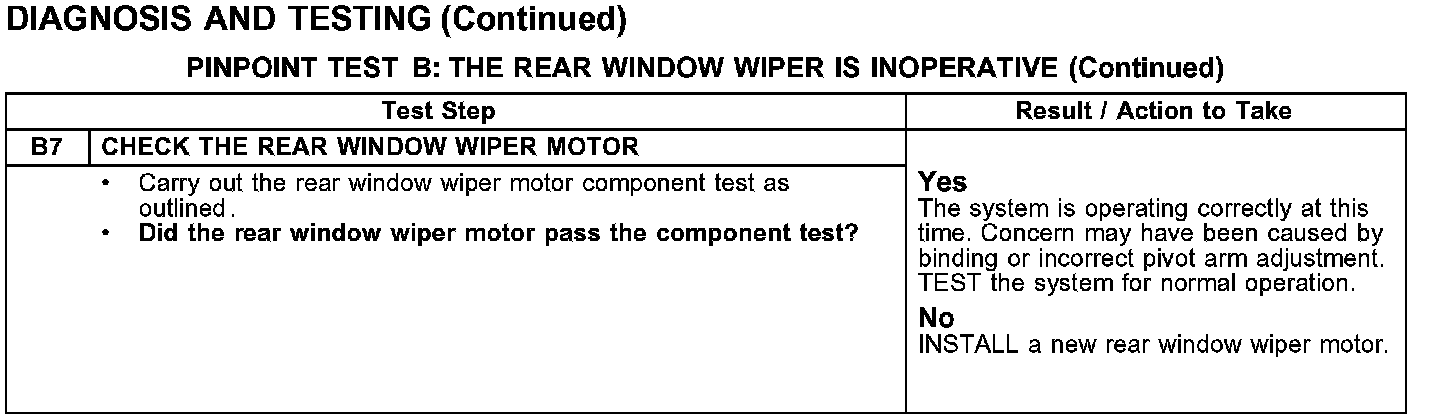

B7:

Normal Operation
Under normal operation, the rear window wiper motor receives power through circuit 406 (BN/WH) and circuit 1002 (BK/PK). The rear window wiper motor is grounded through circuits 1203 (BK/LB) and 1205 (BK). The rear window wiper motor receives open and ground inputs from the steering column multifunction switch through circuits 410 (WH/OG) and 411 (BK/LB) to activate the wiper to the appropriate speeds.

Possible Causes
- Open in circuits 410 (WH/OG), 411 (BK/LB), 406 (BN/WH), 1002 (BK/PK), 1203 (BK/LB) or 1205 (BK)
- Inoperative rear window wiper motor
- Inoperative steering column multifunction switch
