Test H: The Intermittent Rear Wiper Speed Does Not Operate Correctly

PINPOINT TEST H: THE INTERMITTENT REAR WIPER SPEED DOES NOT OPERATE CORRECTLY

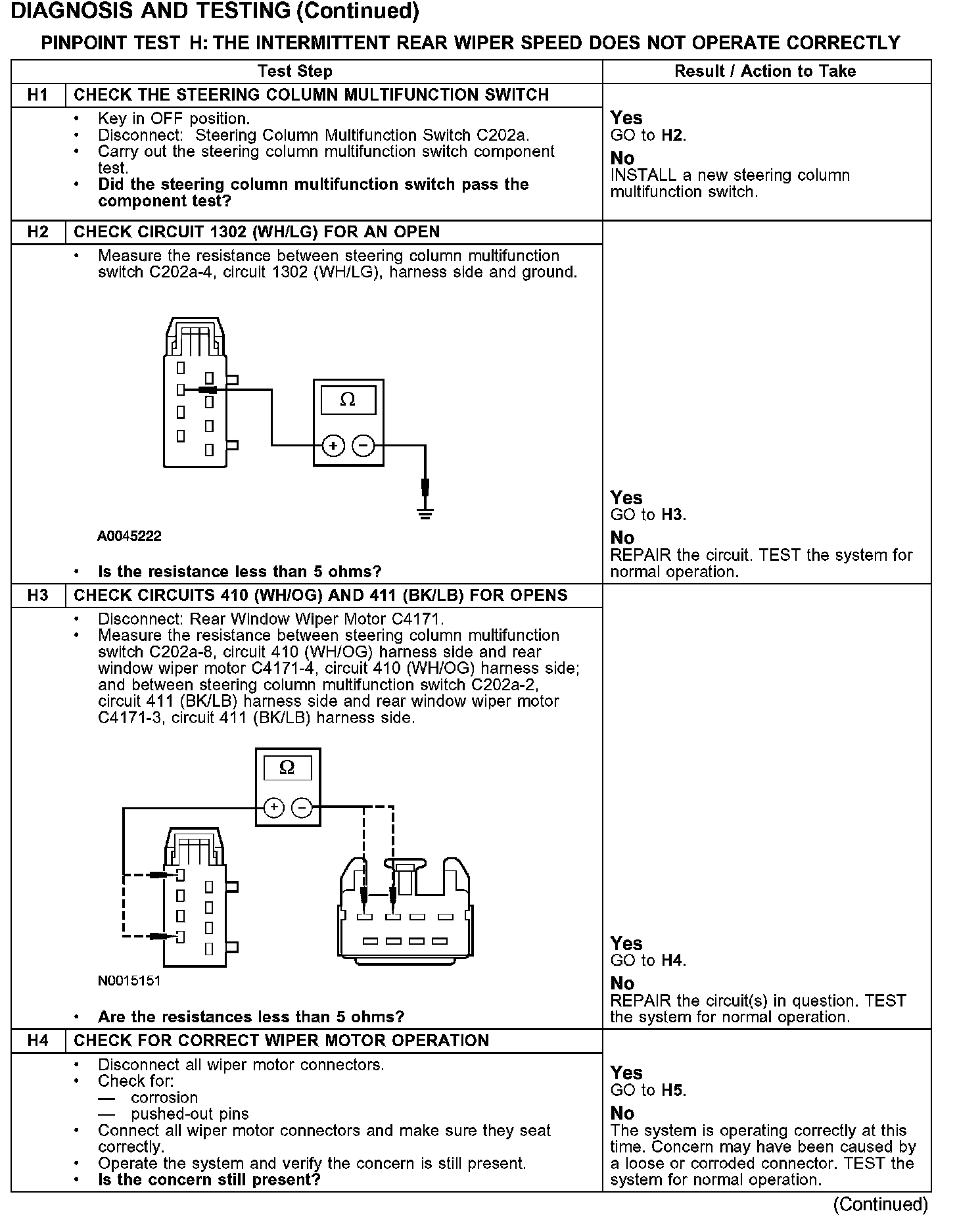

H1-H4:

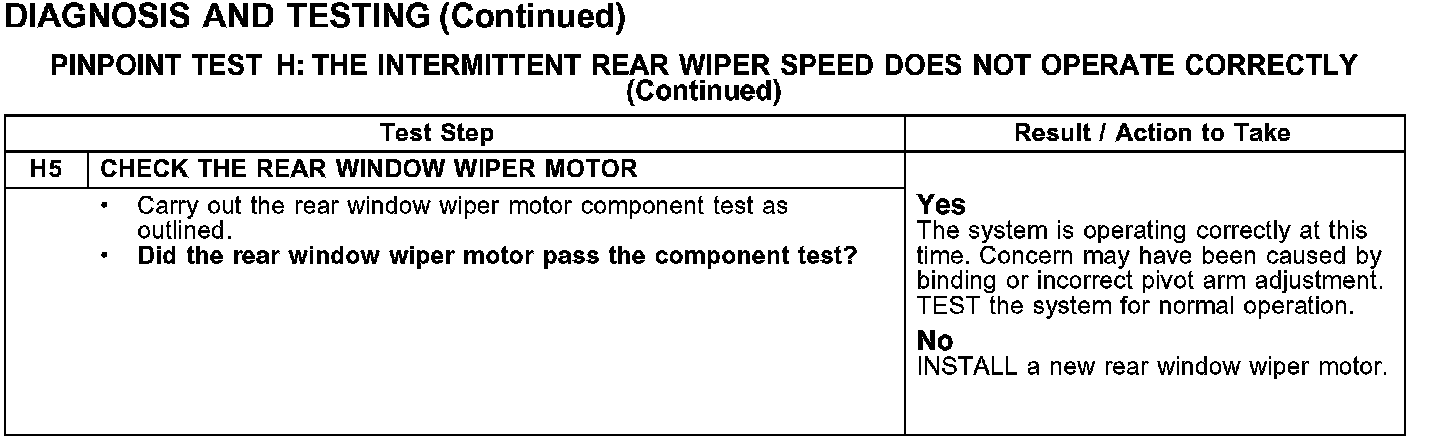

H5:

Normal Operation
Under normal operation, the rear window wiper motor receives open and ground inputs from the steering column multifunction switch through circuits 410 (WH/OG) and 411 (BK/LB) to activate the wiper to the appropriate speeds.

Possible Causes
- Open in circuits 410 (WH/OG), 411 (BK/LB) or 1302 (WH/LG)
- Inoperative rear window wiper motor
- Inoperative steering column multifunction switch
