Test J: The Rear Wiper Wash and Wipe Function Does Not Operate

PINPOINT TEST J: THE REAR WIPER WASH AND WIPE FUNCTION DOES NOT OPERATE

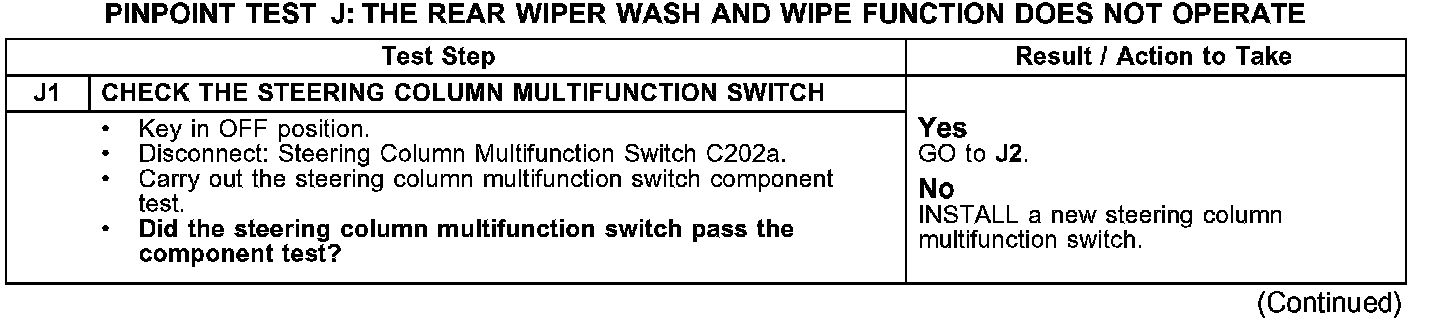

J1:

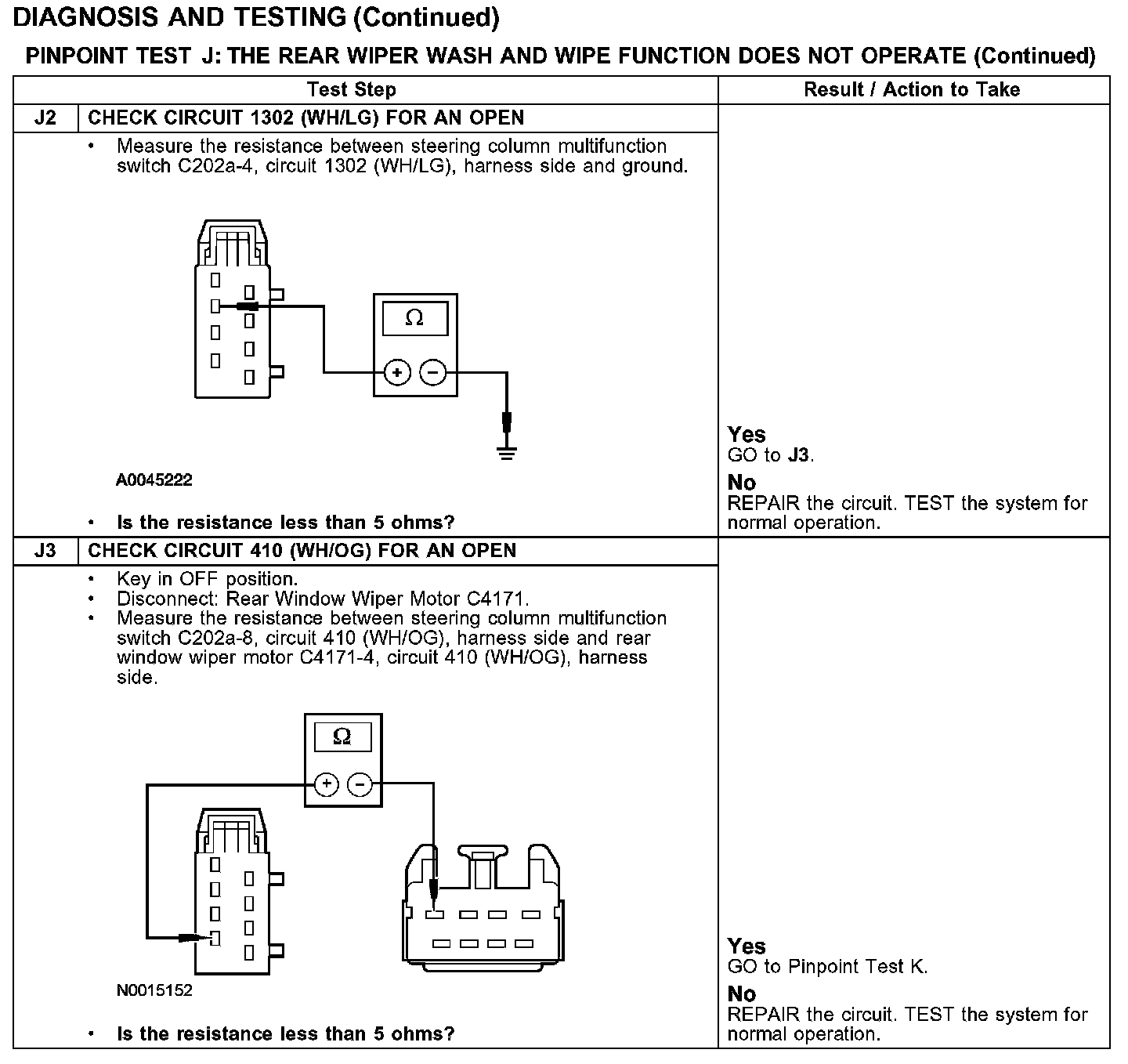

J2-J3:

Normal Operation
Under normal operation, the steering column multifunction switch receives ground through 1302 (WH/LG). The rear window wiper motor receives input from the steering column multifunction switch through circuit 410 (WH/OG) to operate the rear window wiper wash and wipe function.

Possible Causes
- Open in circuits 410 (WH/OG) or 1302 (WH/LG)
- Inoperative steering column multifunction switch
- Inoperative rear window wiper motor
