Diagram Set 24 (Electronic Engine Controls)

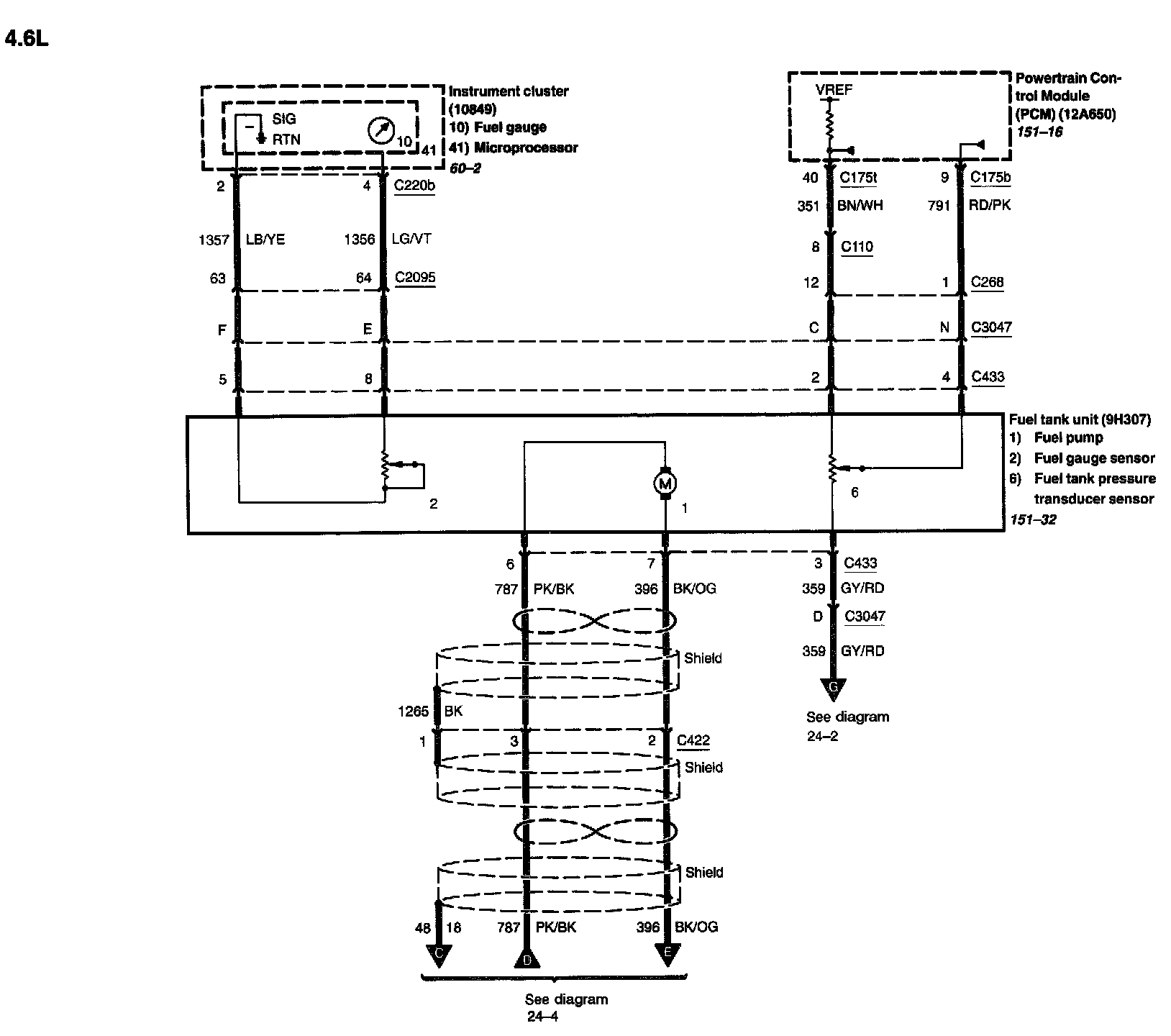

24-1:



24-2:



24-3:



24-4:



24-5:



24-6:



24-7:



24-8:



24-9:



24-10:



24-11:



24-12:
